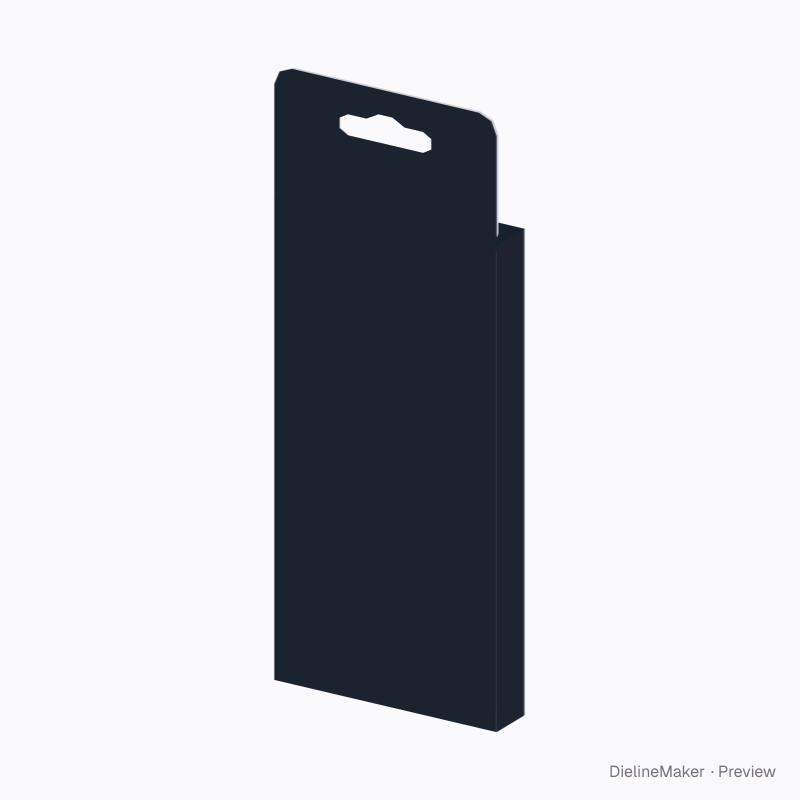

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-HANG-TUCK-01Display
Front-header slim hanging carton dieline
A peg-hook carton with a front or back header and a Euro slot. Choose a tuck, snap-lock or pre-glued crash-lock base; fold the header double to print both sides. A ready-sized preset of the hang tab box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside75 × 15 × 150 mm
Outside76 × 16 × 151 mm
Flat blank193.5 × 255 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-HANG-TUCK-01
- Inside size
- Length 75 · Width 15 · Height 150 mm
- Size range
- Length 25–250 · Width 10–150 · Height 20–400 mm
- Manufacturing
- 75.5 × 15.5 × 150.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.039 m² · about 10 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350Black 350PET 0.3SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-HANG-TUCK-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 75.5 × 150.5 | L + T × H + T |
| Left side | 15.5 × 150.5 | W + T × H + T |
| Back | 75.5 × 150.5 | L + T × H + T |
| Right side | 15 × 150.5 | W × H + T |
| Glue flap | 12 × 150.5 | – × H + T |
| Top closure | 75.5 × 14.5 | L + T × W − T |
| Top tuck | 74.5 × 12 | L − T × – |
| Top dust flap | 15.5 × 13.5 | W + T × – |
| Top dust flap | 15 × 13.5 | W × – |
| Bottom closure | 75.5 × 14.5 | L + T × W − T |
| Bottom tuck | 74.5 × 12 | L − T × – |
| Bottom dust flap | 15.5 × 13.5 | W + T × – |
| Bottom dust flap | 15 × 13.5 | W × – |
| Hang header | 75.5 × 40 | L + T × – |
| Header back ply | 63.5 × 38 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 10 options; the template and 3D preview follow each change.
- Bottom3 options
- Tuck depthmm
- Slit lockon / off
- Header panel2 options
- Header heightmm
- Header cornersmm
- Hang hole4 options
- Hole from topmm
- Double-ply headeron / off
- Windowon / off
