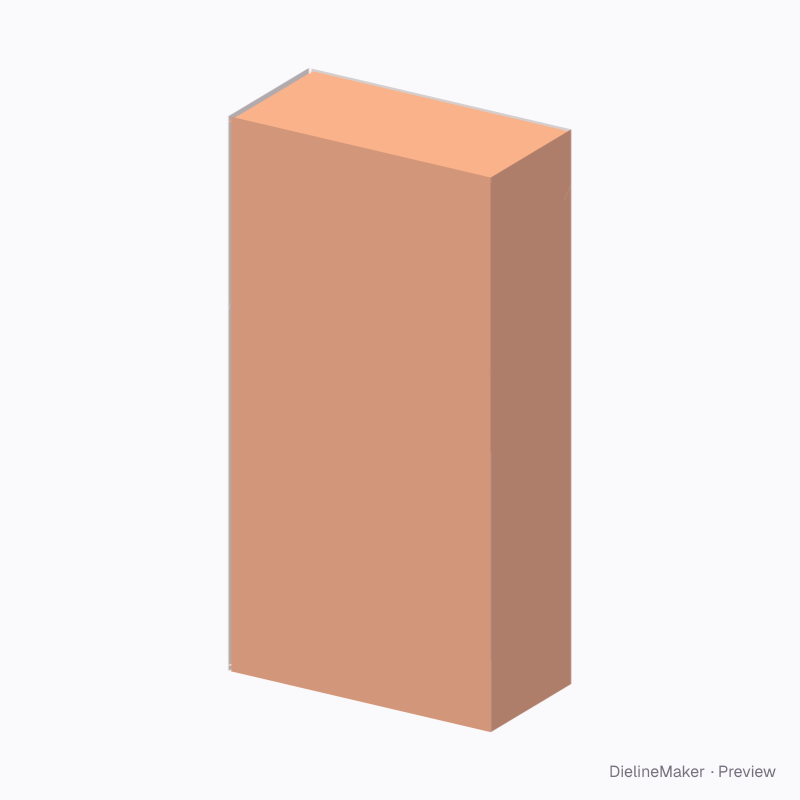

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA F60.15.00.00Tuck end
Side-seam flip-top with shoulder dieline
Glued on one side with end flaps beneath and on top; the shoulder is integrated on the side panel. A ready-sized preset of the hinged-lid pack — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside50 × 25 × 100 mm
Outside52 × 26 × 101 mm
Flat blank254 × 150.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F60.15.00.00
- Inside size
- Front width (A) 50 · Depth (B) 25 · Height 100 mm
- Size range
- Front width (A) 20–250 · Depth (B) 10–150 · Height 30–300 mm
- Manufacturing
- 51.5 × 25.5 × 100.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.028 m² · about 17 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F60.15.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Inner side / shoulder | 25 × 97.5 | W × – |
| Back | 51.5 × 89 | – |
| Side | 25.5 × 90.5 | W + T × – |
| Front | 51.5 × 65.5 | L + 3T × H + T − lid |
| Side | 25.5 × 65.5 | W + T × – |
| Shoulder front | 50.5 × 49 | L + T × – |
| Shoulder side | 24.5 × 49 | W − T × – |
| Lid back | 51.5 × 10 | – |
| Lid side | 25.5 × 10 | W + T × – |
| Lid front | 51.5 × 35 | – |
| Lid side | 25.5 × 35 | W + T × – |
| Top side flap ×2 | 25.5 × 20.4 | W + T × – |
| Top inner flap | 51.5 × 25 | – × W |
| Top end flap | 50 × 24.5 | L × W − T |
| Bottom side flap ×2 | 25.5 × 20.4 | W + T × – |
| Bottom inner flap | 51.5 × 25 | – × W |
1 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Construction3 options
- Lid height (front)mm
- Lid height (back)mm
- Shoulder heightmm
The hinged-lid pack family
The same structure with sizes, boards and options set for a use.
Preset
Preset

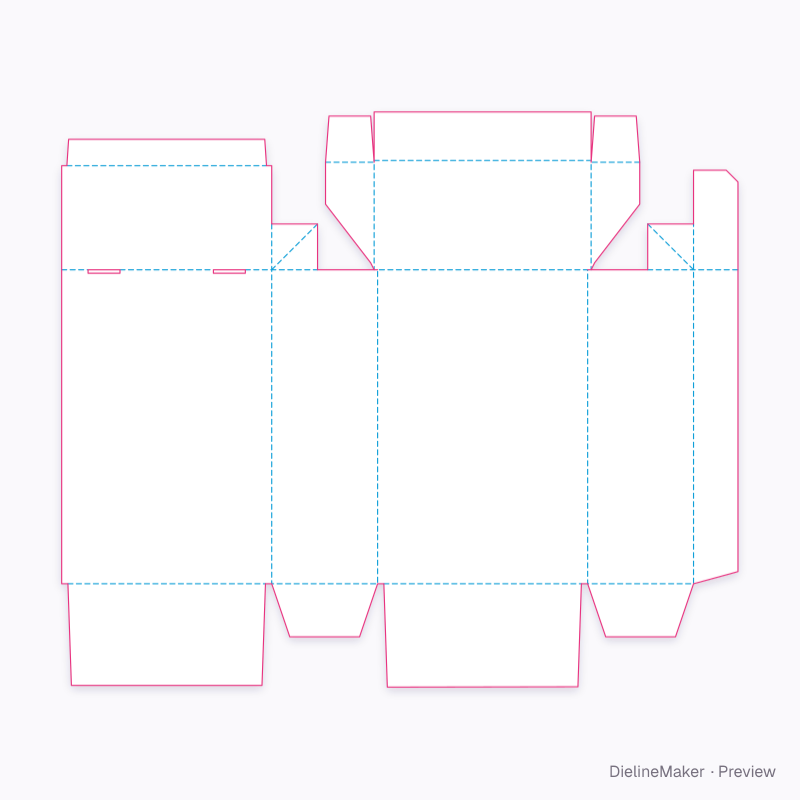

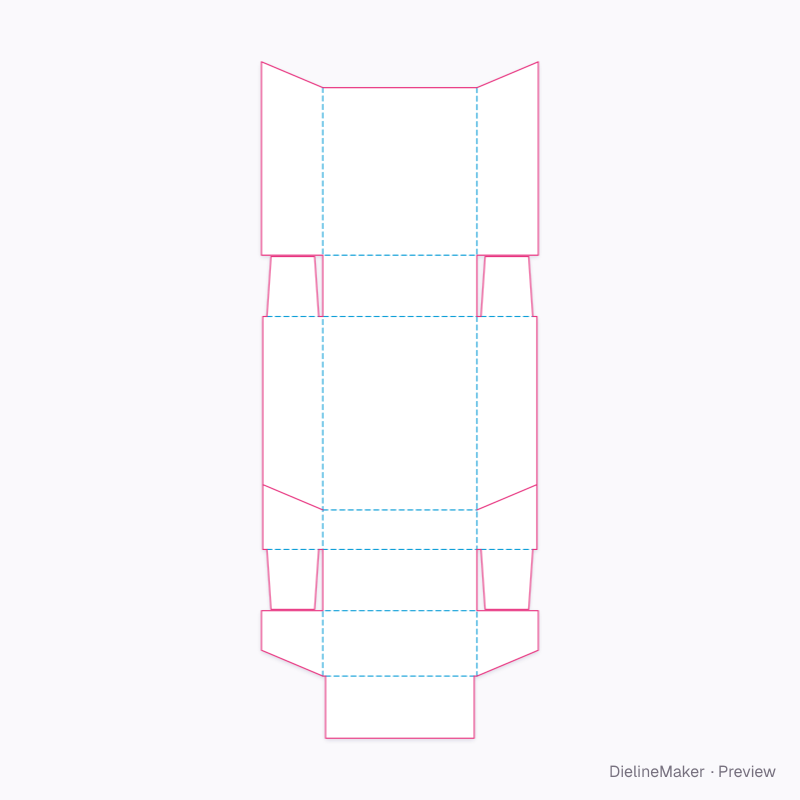

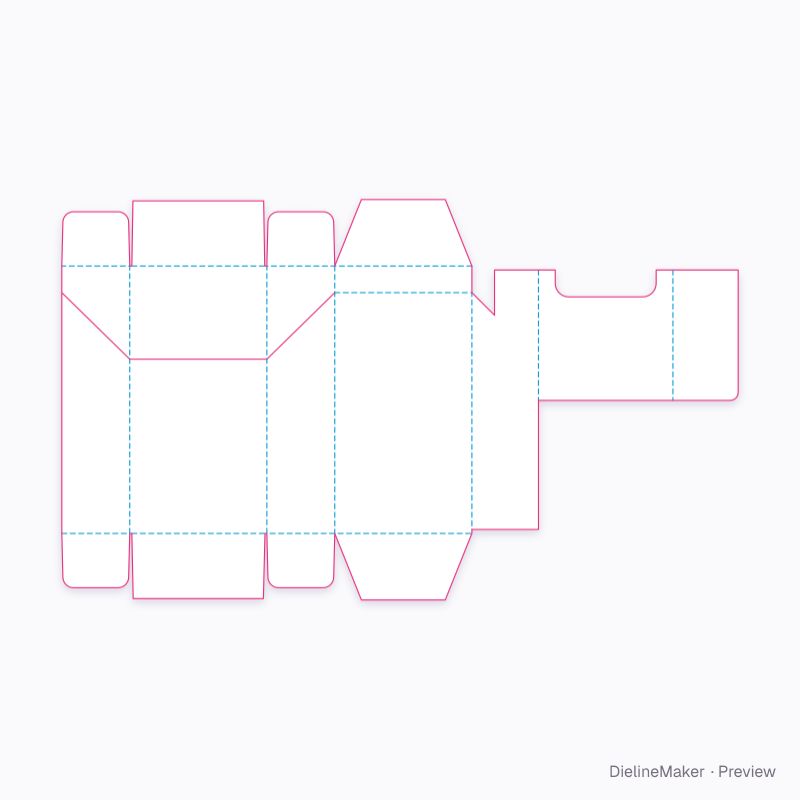

Similar structures
