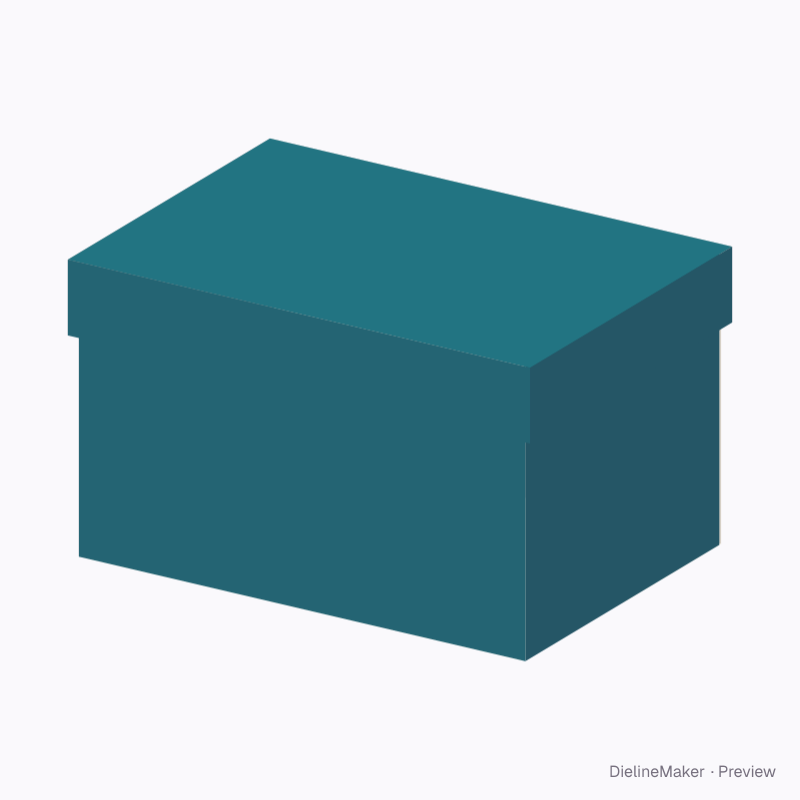

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0312Trays & lids
Retail refill carton — Half-slotted box with cover dieline
Editable 500 × 350 × 300 mm starting point using half-slotted box with cover. Adjust the dimensions to your product before prototyping. A ready-sized preset of the half-slotted box with cover — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside500 × 350 × 300 mm
Outside524.2 × 367.8 × 309.6 mm
Flat blank1741.6 × 479.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0312
- Inside size
- Length 500 · Width 350 · Height 300 mm
- Size range
- Length 100–800 · Width 80–600 · Height 60–600 mm
- Manufacturing
- 503.2 × 353.2 × 303.2 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Body, Cover
- Board area
- 1.177 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteE-flute KE-flute WEB double
- Good for

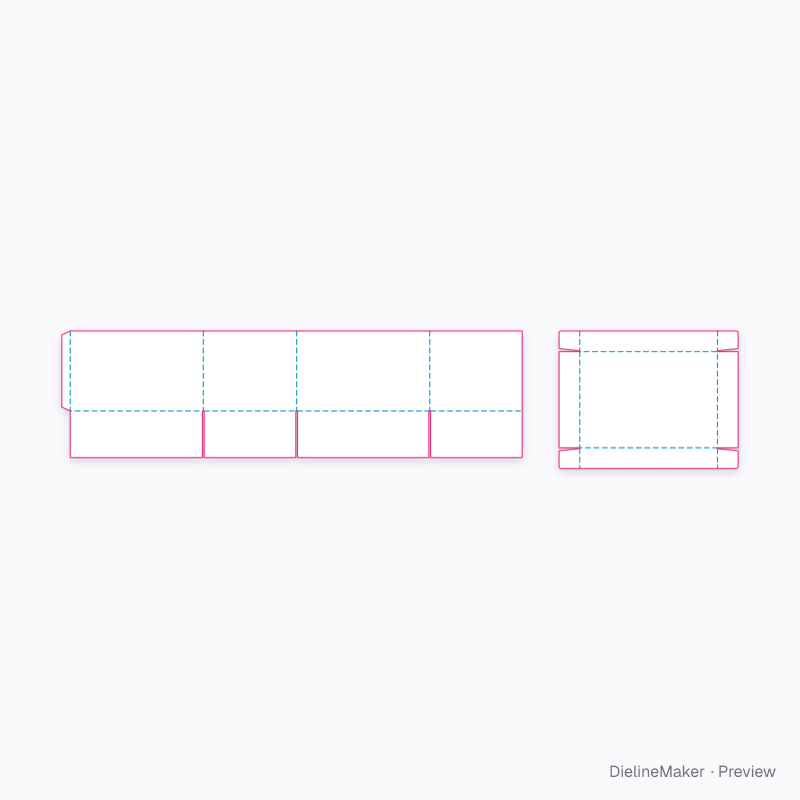

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0312 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| FrontBody | 503.2 × 303.2 | L + T × H + T |
| Left sideBody | 353.2 × 303.2 | W + T × H + T |
| BackBody | 503.2 × 303.2 | L + T × H + T |
| Right sideBody | 350 × 303.2 | W × H + T |
| Glue flapBody | 32 × 303.2 | – × H + T |
| Bottom outer flapBody | 500 × 176.6 | L × – |
| Bottom inner flap ×2Body | 346.8 × 176.6 | W − T × – |
| Bottom outer flapBody | 496.8 × 176.6 | L − T × – |
| Pose rigCover | 100 × 54.1 | – |
| Cover topCover | 100 × 310.5 | – |
| BackCover | 521 × 78.2 | – |
| FrontCover | 521 × 78.2 | – |
| Left endCover | 78.2 × 364.6 | – |
| Right endCover | 78.2 × 364.6 | – |
| Corner flap ×4Cover | 78.2 × 75 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Cover depthmm
