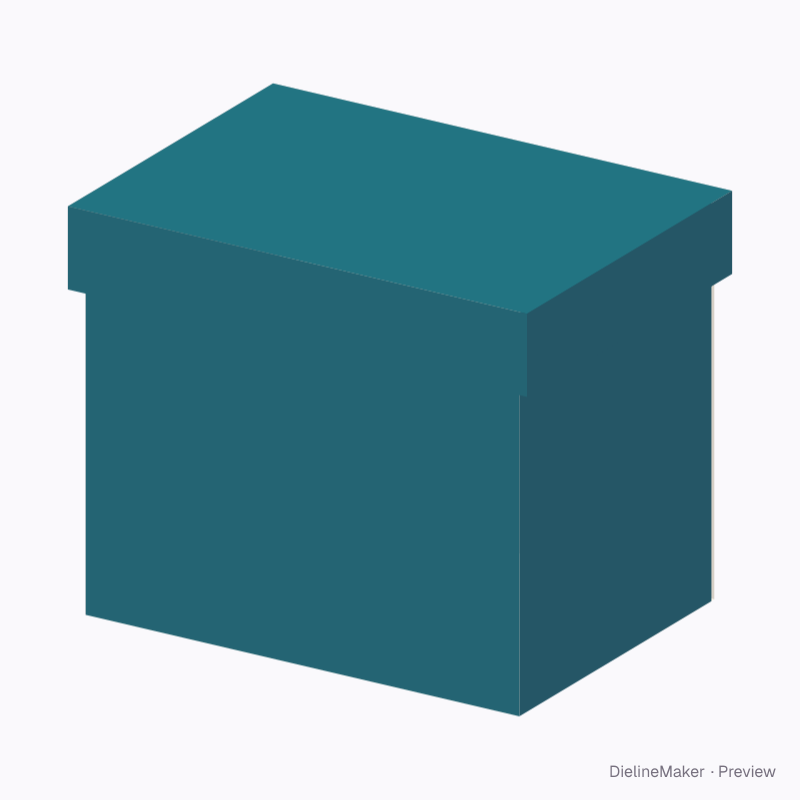

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0312Trays & lids
A4 paper box (5 reams) dieline
Five reams of A4 stacked, with a 50 mm cover. A ready-sized preset of the half-slotted box with cover — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 215 × 255 mm
Outside324.2 × 232.8 × 264.6 mm
Flat blank1071.6 × 367.3 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0312
- Inside size
- Length 300 · Width 215 · Height 255 mm
- Size range
- Length 100–800 · Width 80–600 · Height 60–600 mm
- Manufacturing
- 303.2 × 218.2 × 258.2 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Body, Cover
- Board area
- 0.530 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteE-flute KE-flute WEB double
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0312 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| FrontBody | 303.2 × 258.2 | L + T × H + T |
| Left sideBody | 218.2 × 258.2 | W + T × H + T |
| BackBody | 303.2 × 258.2 | L + T × H + T |
| Right sideBody | 215 × 258.2 | W × H + T |
| Glue flapBody | 32 × 258.2 | – × H + T |
| Bottom outer flapBody | 300 × 109.1 | L × – |
| Bottom inner flap ×2Body | 211.8 × 109.1 | W − T × – |
| Bottom outer flapBody | 296.8 × 109.1 | L − T × – |
| Pose rigCover | 100 × 41.6 | – |
| Cover topCover | 100 × 188 | – |
| BackCover | 321 × 53.2 | – |
| FrontCover | 321 × 53.2 | – |
| Left endCover | 53.2 × 229.6 | – |
| Right endCover | 53.2 × 229.6 | – |
| Corner flap ×4Cover | 53.2 × 50 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Cover depthmm
The half-slotted box with cover family
