ECMA F20.33.00.00Trays & lids
Long tray with inset and tab-lock lid dieline
Long tuck-lid box lined by an integral inset, e.g. for pasta, foil or pens. A ready-sized preset of the tuck-lid tray with integral inset — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 50 × 40 mm
Outside301 × 51.5 × 41.3 mm
Flat blank413.3 × 348.3 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F20.33.00.00
- Inside size
- Length (A) 300 · Depth (B) 50 · Height 40 mm
- Size range
- Length (A) 60–600 · Depth (B) 25–200 · Height 15–150 mm
- Manufacturing
- 300.5 × 50.5 × 40 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.111 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400GD2 350Kraft 350SBS 300SBS 18 pt
- Good for

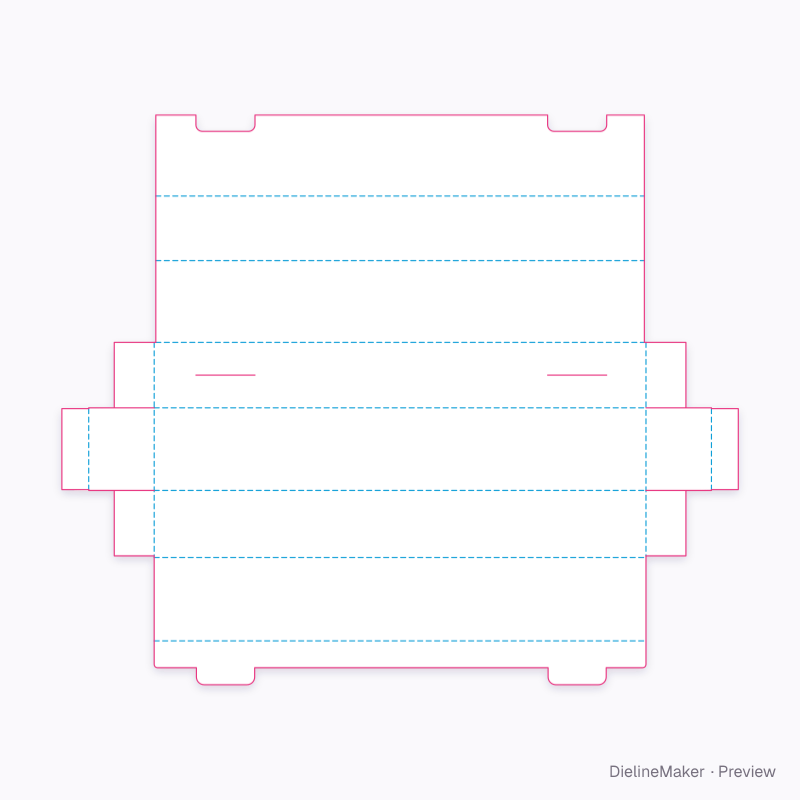

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F20.33.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 300.5 × 50.5 | L + T × W + T |
| Front wall | 300.5 × 40 | L + T × H |
| Inset top | 298.5 × 50 | – × W |
| Inset back | 298.5 × 39.5 | – × H − T |
| Inset floor | 298.5 × 49.5 | – × W − T |
| Back wall | 300.5 × 41 | L + T × H + 2T |
| Lid | 300.5 × 51 | L + T × W + 2T |
| Tuck flap | 300.5 × 26.8 | L + T × – |
| Dust flap ×4 | 24.4 × 40 | – × H |
| End wall ×2 | 40 × 50.5 | H × W + T |
| End tuck ×2 | 16.4 × 49.5 | – × W − T |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Lid tuck depthmm
- Lock tab depthmm
- End tuck depthmm
