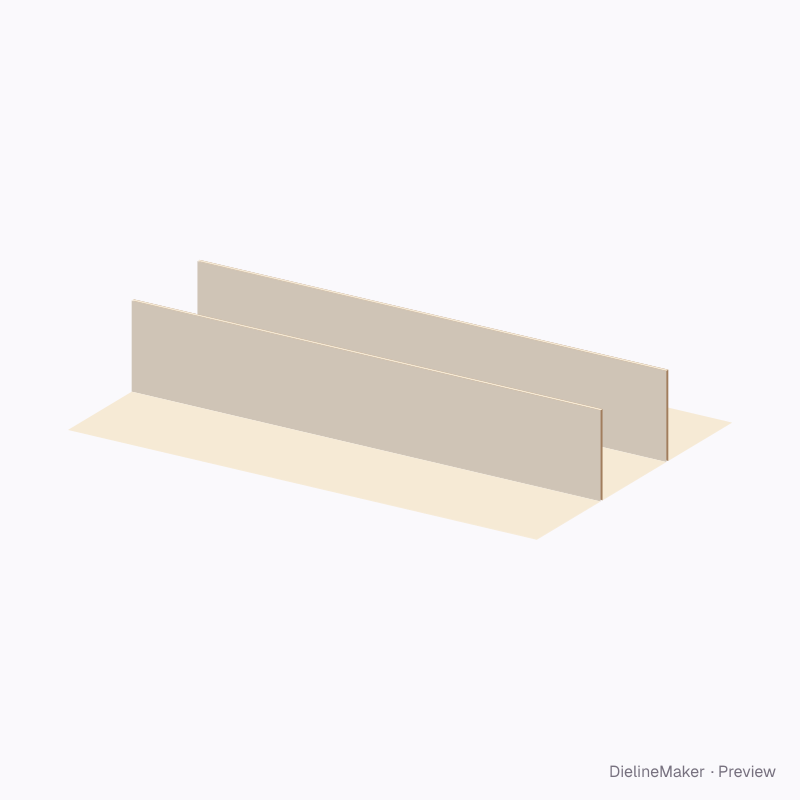

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-ACCORDION-DIVIDER-01Trays & lids
Accordion divider insert dieline
A shallow tray whose floor pleats up into hollow ribs that divide it into parallel channels, all from one blank; optional attached tuck lid. A ready-sized preset of the tray with integral channel ribs — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside180 × 120 × 40 mm
Outside181 × 121 × 41 mm
Flat blank180 × 248 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-ACCORDION-DIVIDER-01
- Inside size
- Length 180 · Width 120 · Wall height 40 mm
- Size range
- Length 60–600 · Width 50–500 · Wall height 10–200 mm
- Manufacturing
- 180.5 × 120.5 × 40.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.045 m² · about 10 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350E-flute WE-flute KSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-ACCORDION-DIVIDER-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Channel floor 1 | 180 × 39.2 | L × – |
| Rib wall ×4 | 180 × 32 | L × – |
| Rib top ×2 | 180 × 1.2 | L × – |
| Channel floor 2 | 180 × 39.2 | L × – |
| Channel floor 3 | 180 × 39.2 | L × – |
