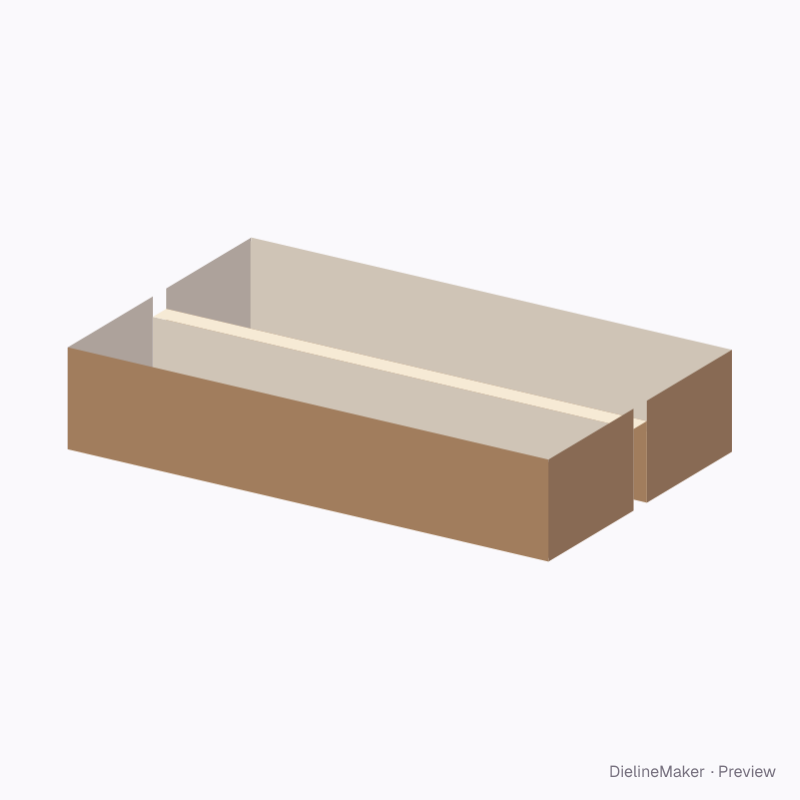

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-INTEGRAL-CHANNEL-TRAY-01Trays & lids
Two-channel tray with centre rib dieline
A shallow tray whose floor pleats up into hollow ribs that divide it into parallel channels, all from one blank; optional attached tuck lid. A ready-sized preset of the tray with integral channel ribs — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside180 × 110 × 35 mm
Outside180.9 × 110.9 × 35.9 mm
Flat blank250 × 236 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-INTEGRAL-CHANNEL-TRAY-01
- Inside size
- Length 180 · Width 110 · Wall height 35 mm
- Size range
- Length 60–600 · Width 50–500 · Wall height 10–200 mm
- Manufacturing
- 180.5 × 110.5 × 35.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.051 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- SBS 350FBB 400Kraft 350E-flute WE-flute KSBS 18 pt
- Good for

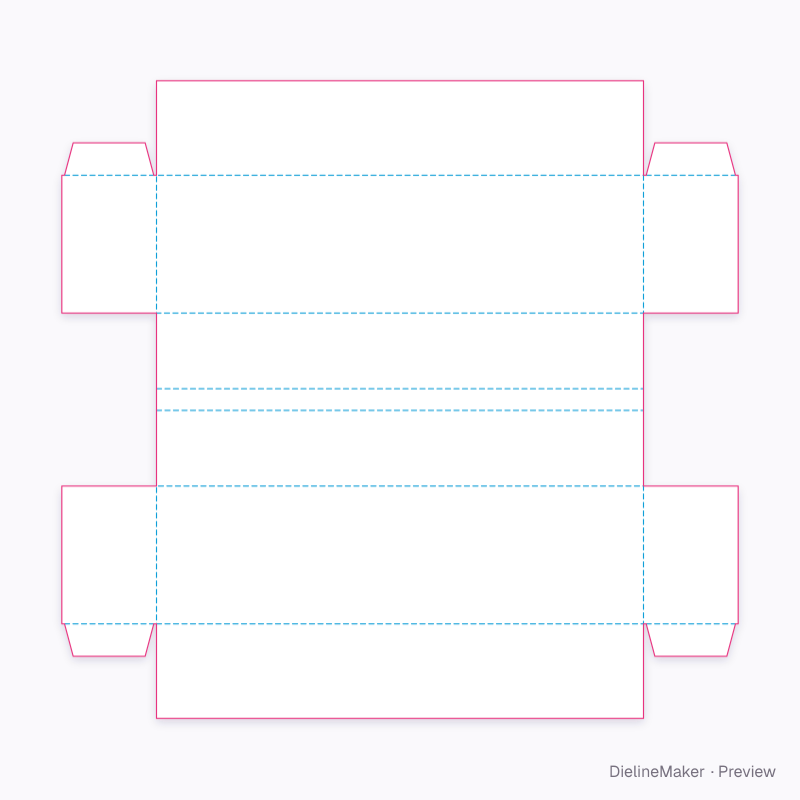

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-INTEGRAL-CHANNEL-TRAY-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Channel floor 1 | 180 × 51 | L × – |
| End wall ×4 | 35 × 51 | H × – |
| Rib wall ×2 | 180 × 28 | L × – |
| Front | 180 × 35 | L × H |
| Glue flap ×4 | 33.1 × 12 | – |
| Rib top | 180 × 8 | L × – |
| Channel floor 2 | 180 × 51 | L × – |
| Back | 180 × 35 | L × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Form2 options
- Channelscount
- Rib heightmm
- Rib widthmm
- Attached tuck lidon / off
The tray with integral channel ribs family
The same structure with sizes, boards and options set for a use.

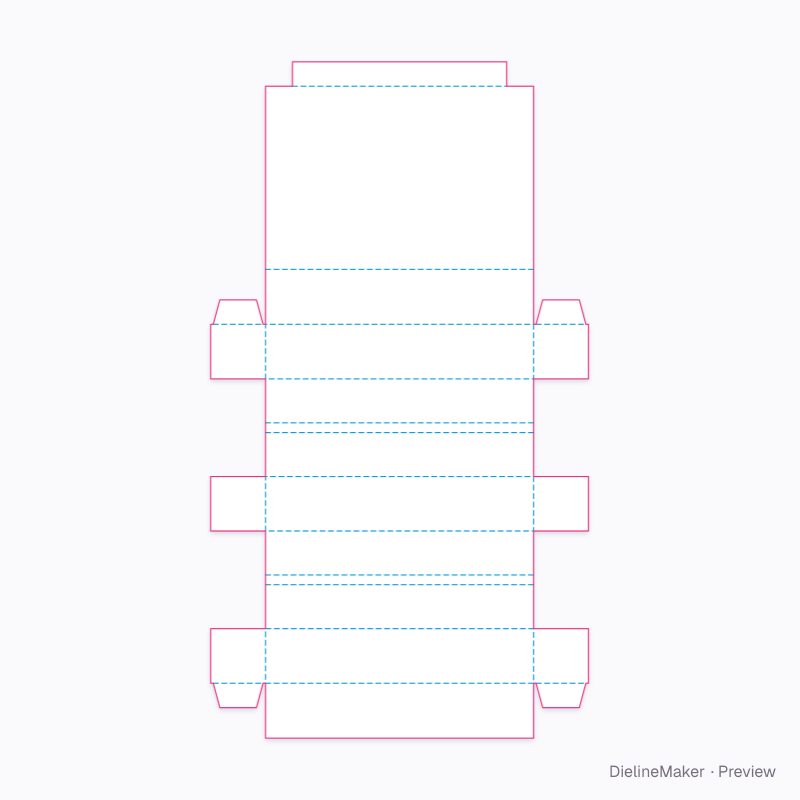

Preset

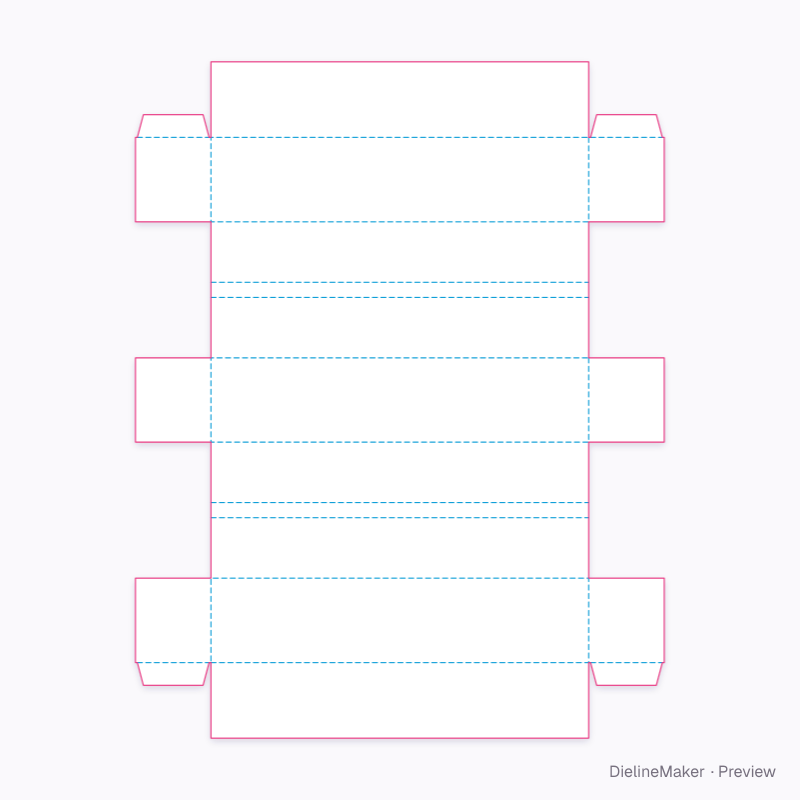

Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this two-channel tray with centre rib yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
