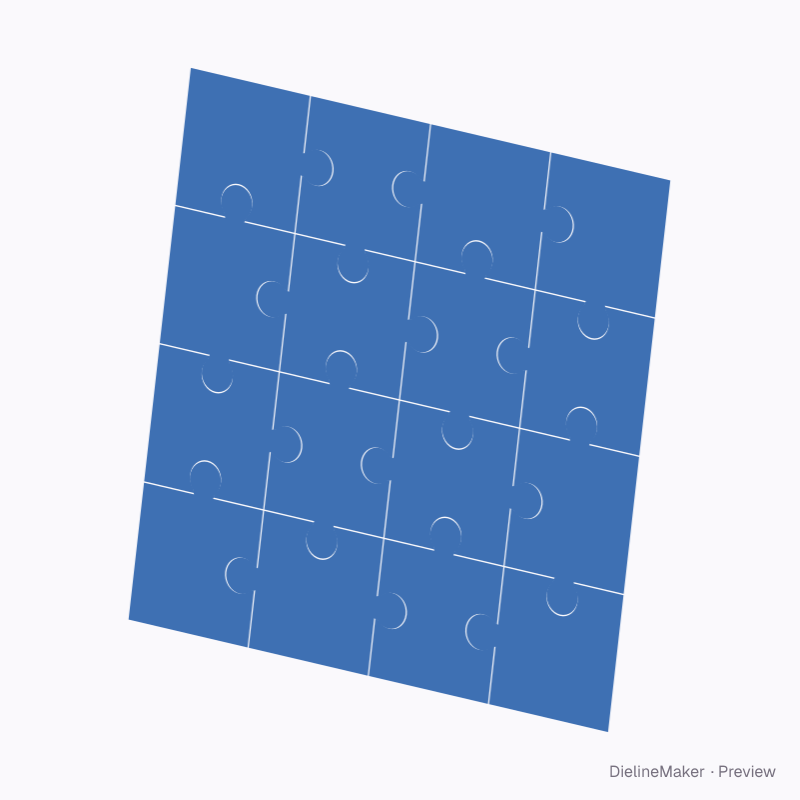

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
Sixteen-piece square puzzle dieline
An assembled printed board puzzle with individual interlocking pieces and complementary tab/socket knife paths. Export the pieces as separate parts. This small-piece-count design is a custom cutting reference; commercial puzzle tooling and lamination are supplier-specific. A ready-sized preset of the jigsaw puzzle — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside240 × 240 mm
Outside240 × 240 mm
Flat blank90.4 × 60 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Assembled width 240 · Assembled height 240 mm
- Size range
- Assembled width 160–500 · Assembled height 120–400 mm
- Manufacturing
- 240 × 240 mm score to score · inside vs outside sizes
- Parts
- 16 parts — Puzzle piece 1 · 1, Puzzle piece 1 · 2, Puzzle piece 1 · 3, Puzzle piece 1 · 4, Puzzle piece 2 · 1, Puzzle piece 2 · 2, Puzzle piece 2 · 3, Puzzle piece 2 · 4, Puzzle piece 3 · 1, Puzzle piece 3 · 2, Puzzle piece 3 · 3, Puzzle piece 3 · 4, Puzzle piece 4 · 1, Puzzle piece 4 · 2, Puzzle piece 4 · 3, Puzzle piece 4 · 4
- Board area
- 0.058 m² · about 120 up on a 720 × 1020 mm sheet
- Default board
- Rigid greyboard 2 mm · 2 mm caliper
- Board options
- Rigid 2 mmRigid 1.5
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Columns4 options
- Rows3 options
- Preview piece spacingmm
The jigsaw puzzle family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this sixteen-piece square puzzle yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
