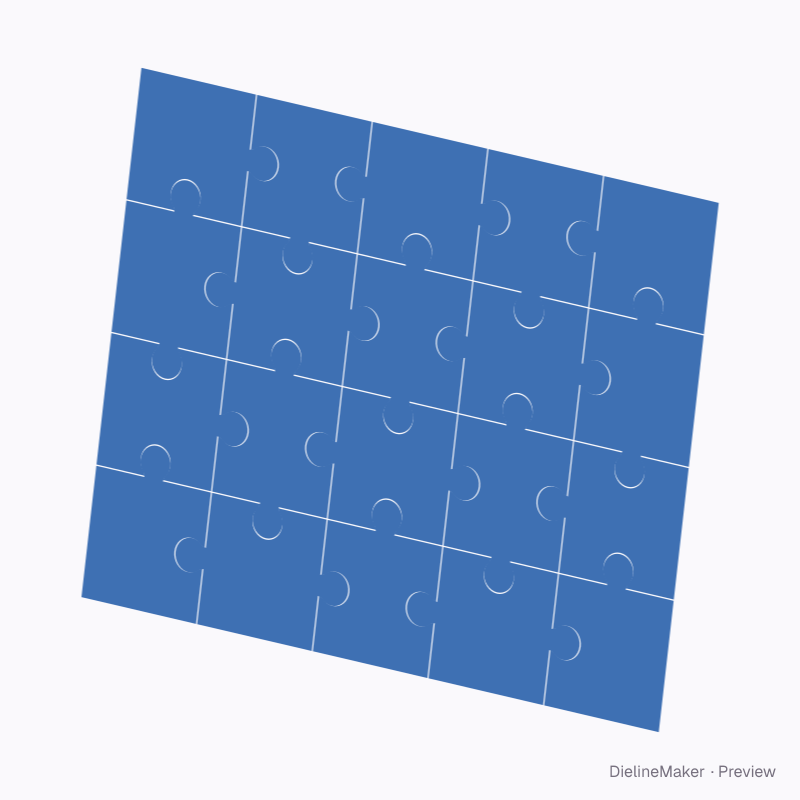

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
Twenty-piece photo puzzle dieline
An assembled printed board puzzle with individual interlocking pieces and complementary tab/socket knife paths. Export the pieces as separate parts. This small-piece-count design is a custom cutting reference; commercial puzzle tooling and lamination are supplier-specific. A ready-sized preset of the jigsaw puzzle — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside300 × 240 mm
Outside300 × 240 mm
Flat blank60 × 90.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Assembled width 300 · Assembled height 240 mm
- Size range
- Assembled width 160–500 · Assembled height 120–400 mm
- Manufacturing
- 300 × 240 mm score to score · inside vs outside sizes
- Parts
- 20 parts — Puzzle piece 1 · 1, Puzzle piece 1 · 2, Puzzle piece 1 · 3, Puzzle piece 1 · 4, Puzzle piece 1 · 5, Puzzle piece 2 · 1, Puzzle piece 2 · 2, Puzzle piece 2 · 3, Puzzle piece 2 · 4, Puzzle piece 2 · 5, Puzzle piece 3 · 1, Puzzle piece 3 · 2, Puzzle piece 3 · 3, Puzzle piece 3 · 4, Puzzle piece 3 · 5, Puzzle piece 4 · 1, Puzzle piece 4 · 2, Puzzle piece 4 · 3, Puzzle piece 4 · 4, Puzzle piece 4 · 5
- Board area
- 0.072 m² · about 100 up on a 720 × 1020 mm sheet
- Default board
- Rigid greyboard 2 mm · 2 mm caliper
- Board options
- Rigid 2 mmRigid 1.5
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
