The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-LABEL-ROLL-01Cards & tags
Square sticker roll 50 mm dieline

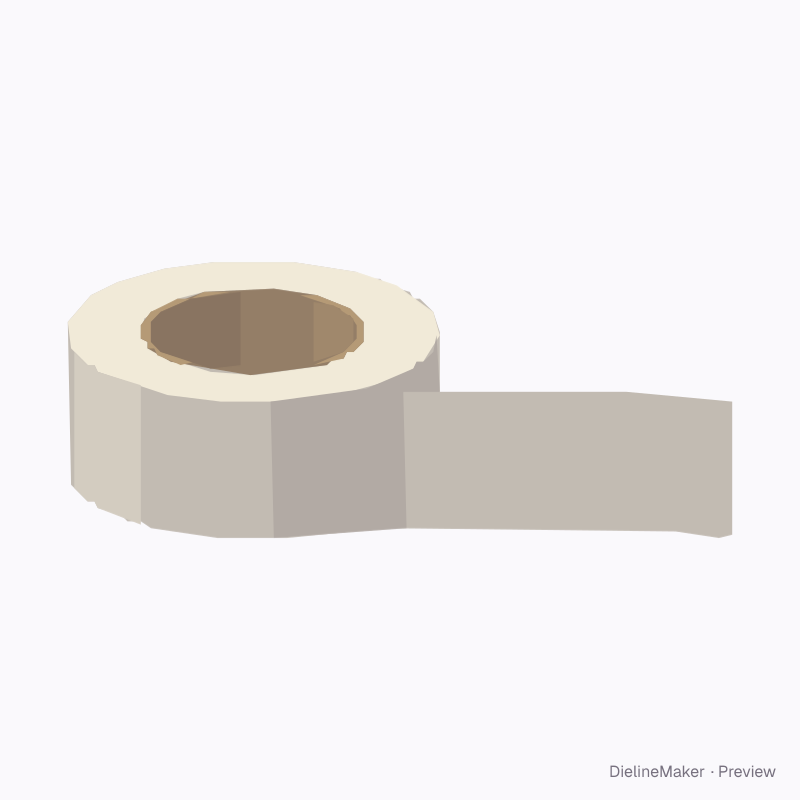

Repeated die-cut labels on a release liner wound around a core, with a length of liner pulled off the roll. Artwork is one label; the preview repeats it at the label pitch. A ready-sized preset of the label roll — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside50 × 50 mm
Outside50 × 50 mm
Flat blank50 × 50 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-LABEL-ROLL-01
- Inside size
- Label width 50 · Label height 50 mm
- Size range
- Label width 10–150 · Label height 10–150 mm
- Manufacturing
- 50 × 50 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.002 m² · about 216 up on a 720 × 1020 mm sheet
- Default board
- Gloss label stock · 0.08 mm caliper
- Board options
- Label glossLabel matteClear BOPPPaper 170
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Label shape4 options
- Corner radiusmm
- Gap between labelsmm
- Core inside diametermm
- Roll diametermm
- Labels pulled offcount
The label roll family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
