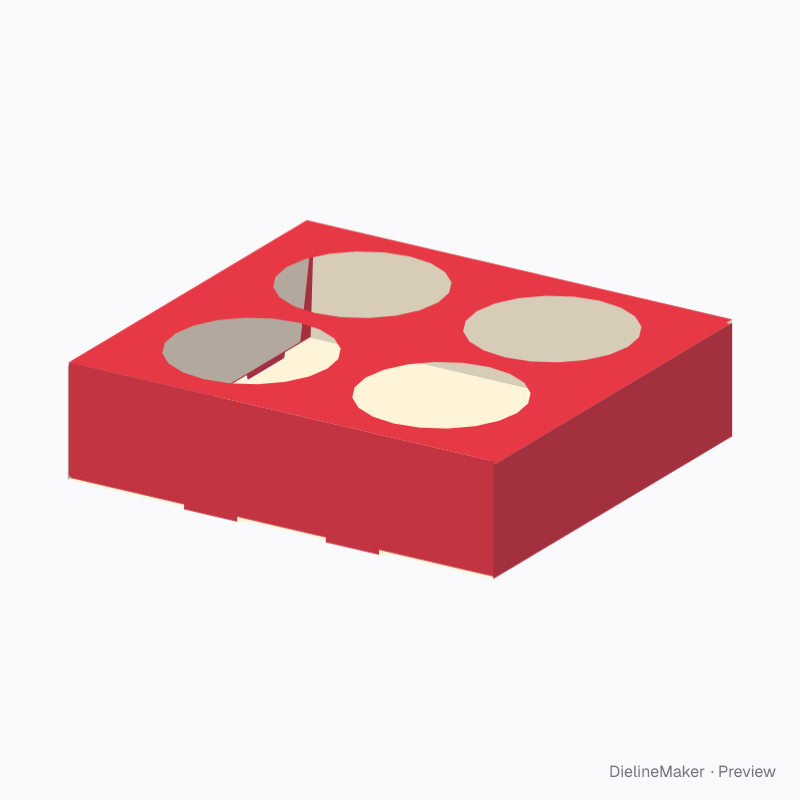

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCarriers
Four-cup locking grid dieline
One corrugated blank forms a floor, captive rolled walls and a full circular-aperture deck. Choose shouldered front-bottom tongues or front-top deck locks; both close without glue. Independently size the cup rows, columns, hole diameter and centre spacing. A ready-sized preset of the self-locking cup grid carrier — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside210 × 200 × 55 mm
Outside226 × 203.2 × 58.2 mm
Flat blank450.8 × 586.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Inside length 210 · Inside width 200 · Deck height 55 mm
- Size range
- Inside length 80–600 · Inside width 70–600 · Deck height 25–200 mm
- Manufacturing
- 224.4 × 201.6 × 56.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.202 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- F-fluteE-flute WE-flute KB-flute
- Good for
The flat dieline

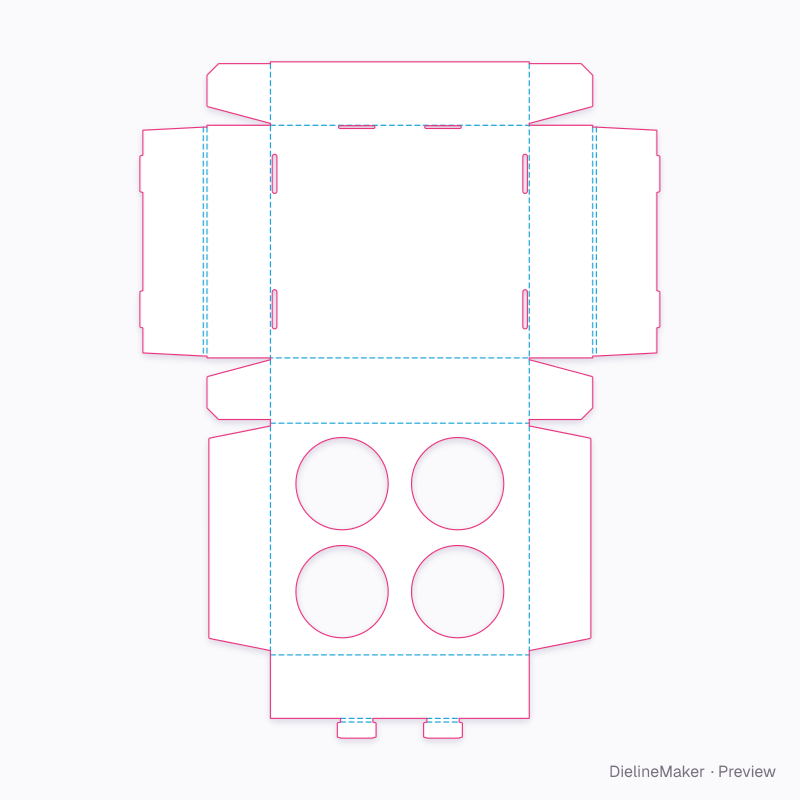

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 224.4 × 201.6 | – × W + T |
| Inner front support liner | 224.4 × 55 | – × H |
| Back | 224.4 × 56.6 | – × H + T |
| Front ear ×2 | 55 × 51.8 | H × H − 2T |
| Back ear ×2 | 55 × 51.8 | H × H − 2T |
| Left end | 55 × 201.6 | H × W + T |
| Left end roll | 3.2 × 198.4 | – × W − T |
| Left end (inside) | 55 × 198.4 | H × W − T |
| Right end | 55 × 201.6 | H × W + T |
| Right end roll | 3.2 × 198.4 | – × W − T |
| Right end (inside) | 55 × 198.4 | H × W − T |
| Full cup aperture deck | 224.4 × 200.8 | – × W + T/2 |
| Front wall with lower locks | 224.4 × 55 | – × H |
| Captive deck end flap ×2 | 53.4 × 194.7 | H − T × – |
| Lower locking neck through floor ×2 | 28.1 × 3.2 | – |
| Fold flat under the floor to retain the neck ×2 | 28.1 × 14 | – |
