Coffee discovery mailer — Mailer box dieline
Editable 280 × 200 × 85 mm starting point using mailer box. Adjust the dimensions to your product before prototyping. A ready-sized preset of the mailer box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside280 × 200 × 85 mm
Outside296 × 203.2 × 88.2 mm
Flat blank640.8 × 623.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-ROLL-END-MAILER-01
- Inside size
- Length 280 · Width 200 · Height 85 mm
- Size range
- Length 60–600 · Width 40–450 · Height 20–250 mm
- Manufacturing
- 294.4 × 201.6 × 86.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.301 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WE-flute KF-fluteB-fluteSBS 350FBB 400Kraft 350Black 350SBS 18 pt
- Good for

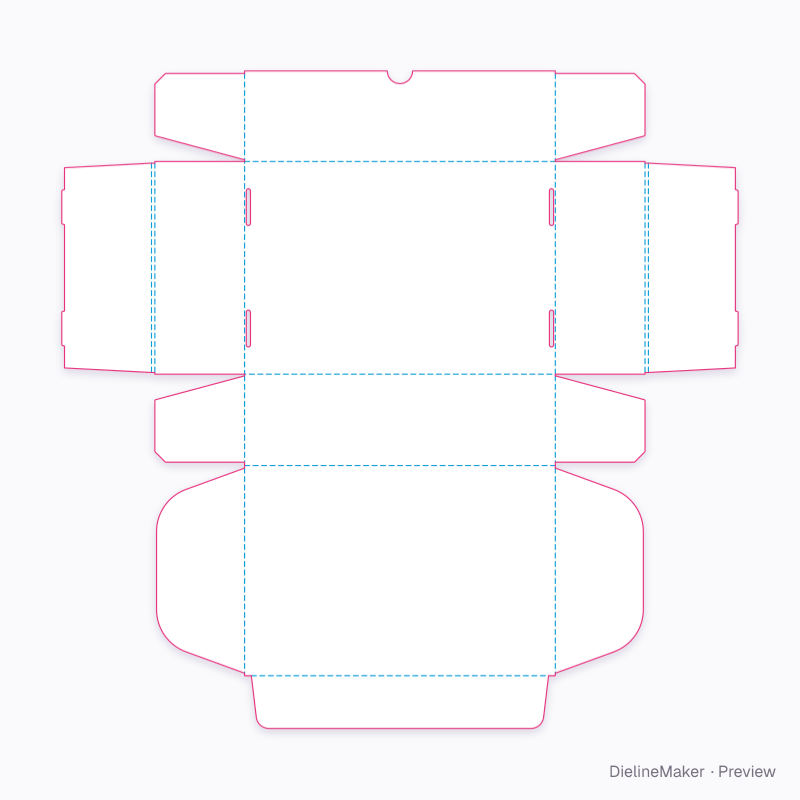

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-ROLL-END-MAILER-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 294.4 × 201.6 | – × W + T |
| Front | 294.4 × 85.8 | – × H + T/2 |
| Back | 294.4 × 86.6 | – × H + T |
| Front ear ×2 | 85 × 81.8 | – × H − 2T |
| Back ear ×2 | 85 × 81.8 | – × H − 2T |
| Left end | 85 × 201.6 | H × W + T |
| Left end roll | 3.2 × 198.4 | – × W − T |
| Left end (inside) | 85 × 198.4 | H × W − T |
| Right end | 85 × 201.6 | H × W + T |
| Right end roll | 3.2 × 198.4 | – × W − T |
| Right end (inside) | 85 × 198.4 | H × W − T |
| Lid | 294.4 × 199.2 | – × W − T/2 |
| Lid ear ×2 | 83.4 × 194.4 | H − T × – |
| Front tuck | 281.6 × 50 | L + T × – |
