Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-ROLL-END-MAILER-01Mailer
Tech accessory mailer 180×120×50 dieline
For a phone case, charger or cable bundle. A ready-sized preset of the mailer box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside180 × 120 × 50 mm
Outside189 × 121.8 × 51.8 mm
Flat blank391.7 × 388 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-ROLL-END-MAILER-01
- Inside size
- Length 180 · Width 120 · Height 50 mm
- Size range
- Length 60–600 · Width 40–450 · Height 20–250 mm
- Manufacturing
- 188.1 × 120.9 × 50.9 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.114 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- F-flute micro corrugated · 0.9 mm caliper
- Board options
- E-flute WE-flute KF-fluteB-fluteSBS 350FBB 400Kraft 350Black 350SBS 18 pt
- Good for

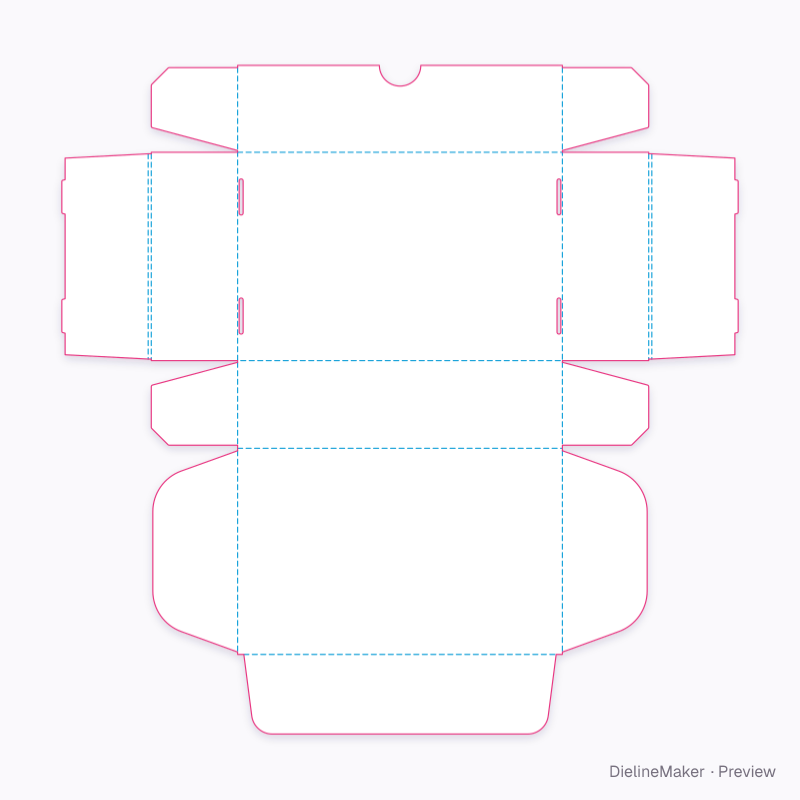

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-ROLL-END-MAILER-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.9 mm for F-flute micro corrugated). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 188.1 × 120.9 | – × W + T |
| Front | 188.1 × 50.5 | – × H + T/2 |
| Back | 188.1 × 50.9 | – × H + T |
| Front ear ×2 | 50 × 48.1 | – |
| Back ear ×2 | 50 × 48.1 | – |
| Left end | 50 × 120.9 | H × W + T |
| Left end roll | 1.8 × 119.1 | – × W − T |
| Left end (inside) | 50 × 119.1 | H × W − T |
| Right end | 50 × 120.9 | H × W + T |
| Right end roll | 1.8 × 119.1 | – × W − T |
| Right end (inside) | 50 × 119.1 | H × W − T |
| Lid | 188.1 × 119.6 | – × W − T/2 |
| Lid ear ×2 | 49.1 × 116.8 | H − T × – |
| Front tuck | 180.9 × 46.2 | L + T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 8 options; the template and 3D preview follow each change.
- Front tuck depthmm
- Lid earson / off
- Lid ear depthmm
- Front tuck end earson / off
- Lock tonguescount
- Thumb notchon / off
- Notch radiusmm
- Tear strip opening2 options
