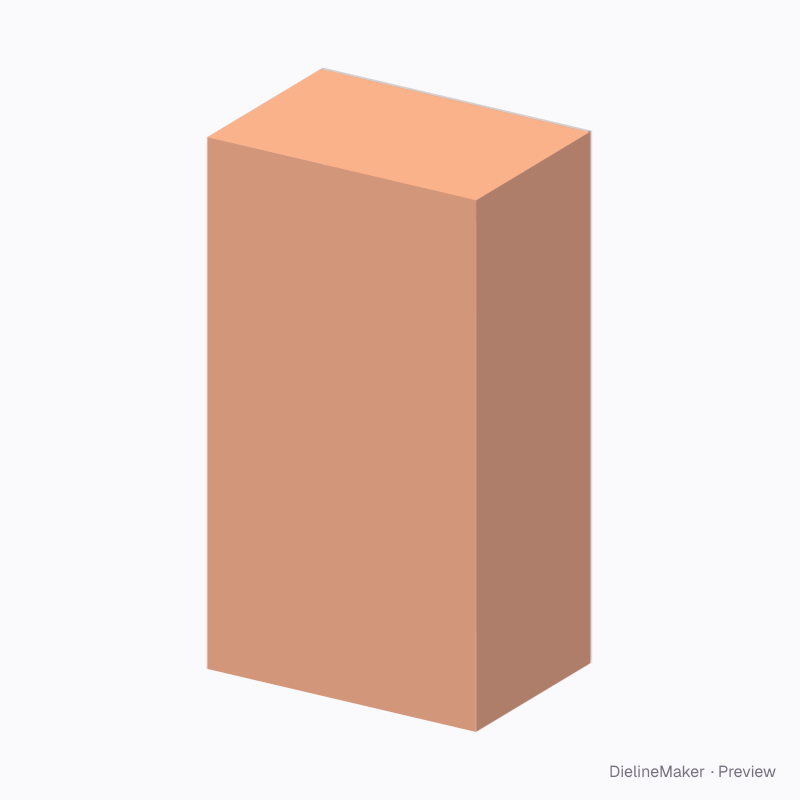

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureTuck end
Wide fragrance neck-lock carton — Bottle neck-lock carton dieline
Editable 80 × 55 × 145 mm starting point using bottle neck-lock carton. Adjust the dimensions to your product before prototyping. A ready-sized preset of the bottle neck-lock carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside80 × 55 × 145 mm
Outside81.2 × 56.2 × 146.2 mm
Flat blank283.8 × 283.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 80 · Width 55 · Height 145 mm
- Size range
- Length 30–180 · Width 25–140 · Height 65–350 mm
- Manufacturing
- 80.6 × 55.6 × 145.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.064 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- Folding boxboard 400 g · 0.6 mm caliper
- Board options
- FBB 400SBS 350SBS 300Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Double crease
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.6 mm for Folding boxboard 400 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 80.6 × 145.6 | L + T × H + T |
| Left side | 55.6 × 145.6 | W + T × H + T |
| Back | 80.6 × 145.6 | L + T × H + T |
| Right side | 55 × 145.6 | W × H + T |
| Glue flap | 12 × 145.6 | – × H + T |
| Top closure | 80.6 × 54.4 | L + T × W − T |
| Top tuck | 79.4 × 15 | L − T × – |
| Top dust flap | 55.6 × 35 | W + T × – |
| Top dust flap | 55 × 35 | W × – |
| Snap end | 55.6 × 18.3 | W + T × – |
| Snap end | 55 × 18.3 | W × – |
| Snap bottom | 80.6 × 35.8 | L + T × – |
| Snap tuck | 80.6 × 35.2 | L + T × – |
| Neck support return | 76.2 × 32 | – |
| Bottle neck shelf | 76.2 × 53.2 | – |
| Bonded front brace | 76.2 × 17.4 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Bottom2 options
- Neck openingmm
- Support from topmm
- Radial grip fingerson / off
- Tuck depthmm
- Slit lockon / off
