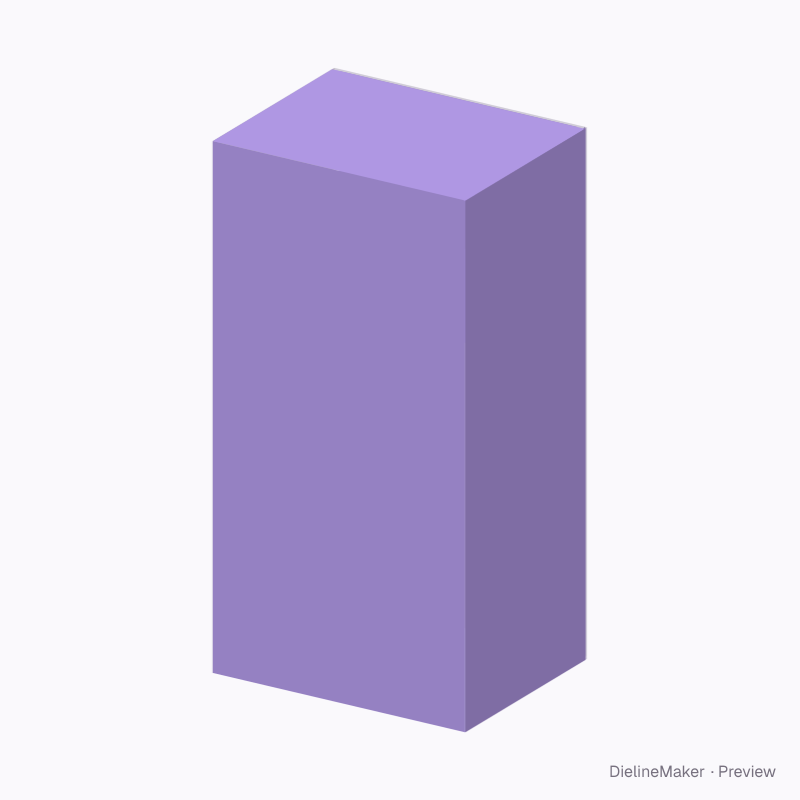

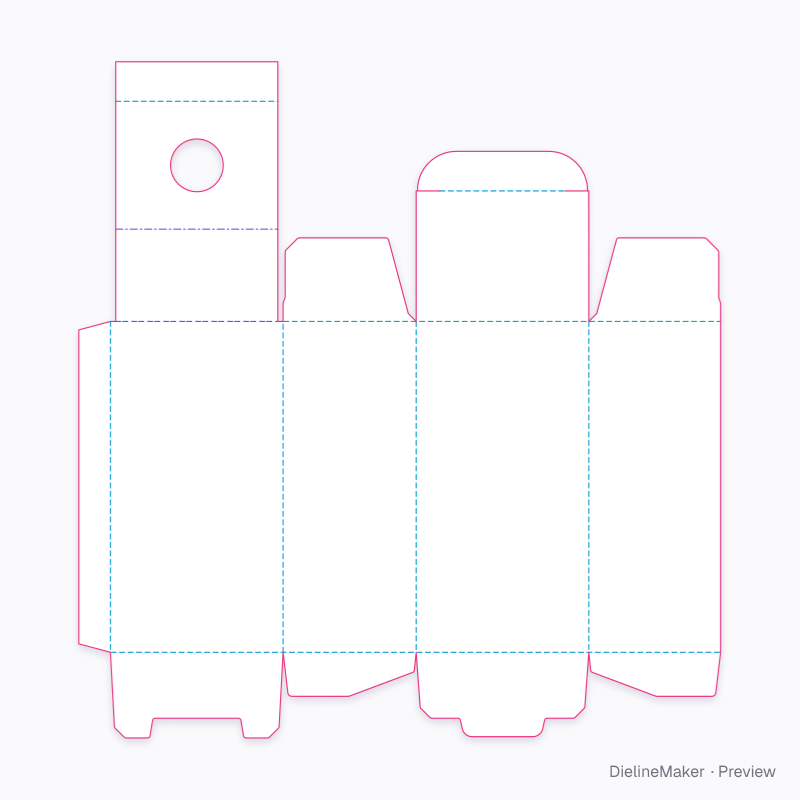

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureTuck end
Perfume neck-lock box 50 ml dieline
65 × 50 × 125 mm carton with a 20 mm neck opening, 35 mm below the top. A ready-sized preset of the bottle neck-lock carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside65 × 50 × 125 mm
Outside66 × 51 × 126 mm
Flat blank243.5 × 256.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 65 · Width 50 · Height 125 mm
- Size range
- Length 30–180 · Width 25–140 · Height 65–350 mm
- Manufacturing
- 65.5 × 50.5 × 125.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.048 m² · about 11 up on a 720 × 1020 mm sheet
- Default board
- Black-core board 350 g · 0.5 mm caliper
- Board options
- FBB 400SBS 350SBS 300Kraft 350Black 350SBS 18 pt
- Good for

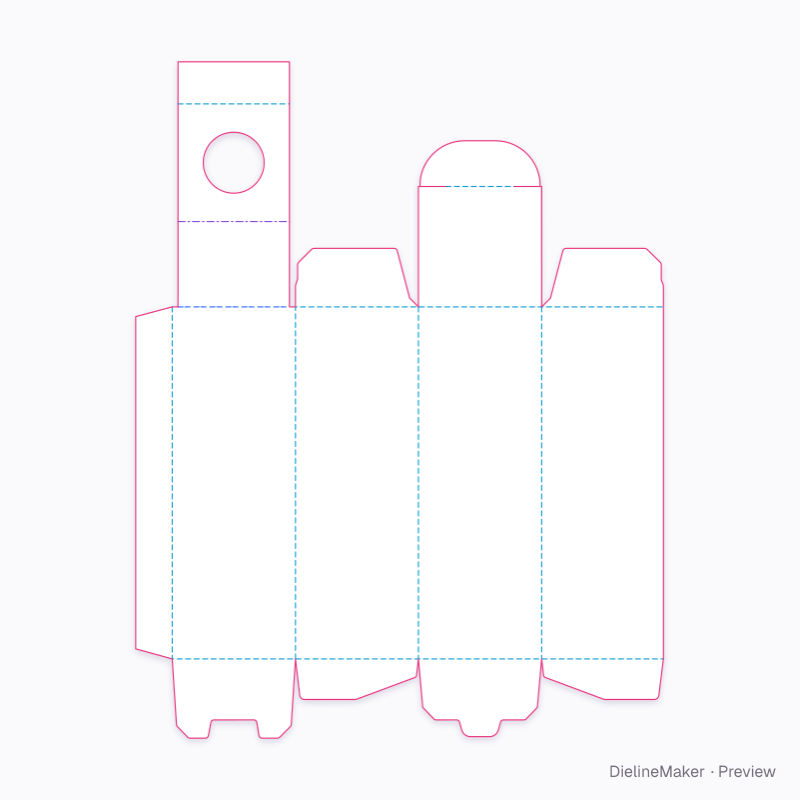

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Double crease
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for Black-core board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 65.5 × 125.5 | L + T × H + T |
| Left side | 50.5 × 125.5 | W + T × H + T |
| Back | 65.5 × 125.5 | L + T × H + T |
| Right side | 50 × 125.5 | W × H + T |
| Glue flap | 12 × 125.5 | – × H + T |
| Top closure | 65.5 × 49.5 | L + T × W − T |
| Top tuck | 64.5 × 15 | L − T × – |
| Top dust flap | 50.5 × 31.8 | W + T × – |
| Top dust flap | 50 × 31.8 | W × – |
| Snap end | 50.5 × 16.7 | W + T × – |
| Snap end | 50 × 16.7 | W × – |
| Snap bottom | 65.5 × 32.5 | L + T × – |
| Snap tuck | 65.5 × 32 | L + T × – |
| Neck support return | 61.5 × 35 | – |
| Bottle neck shelf | 61.5 × 48.5 | – |
| Bonded front brace | 61.5 × 15 | – |
