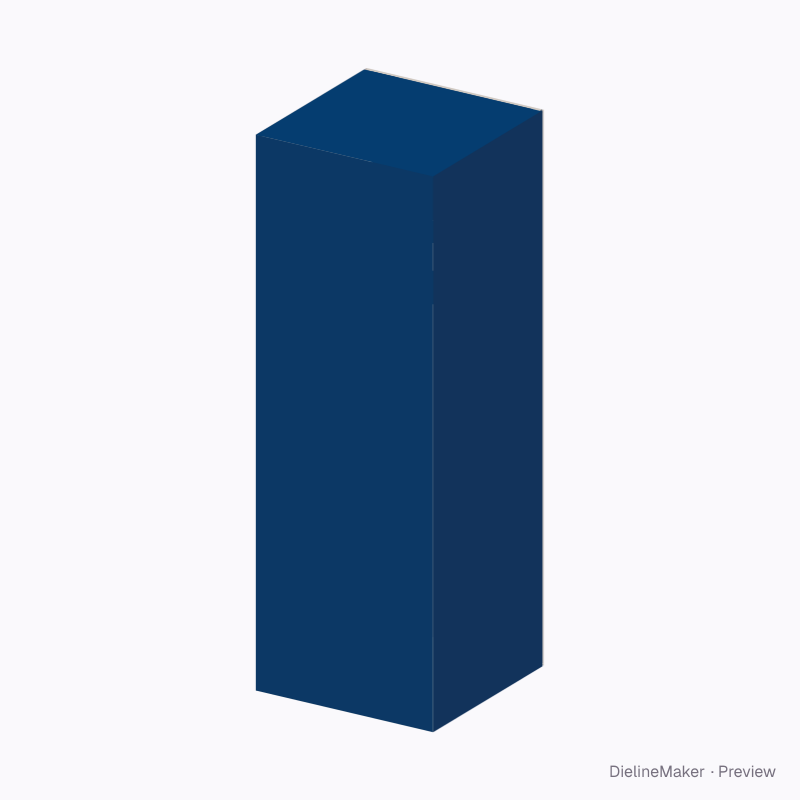

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureTuck end
Miniature bottle neck-lock box dieline
40 × 40 × 115 mm gift carton with a 20 mm neck opening, 28 mm below the top. A ready-sized preset of the bottle neck-lock carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside40 × 40 × 115 mm
Outside40.9 × 40.9 × 115.9 mm
Flat blank173.4 × 221.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 40 · Width 40 · Height 115 mm
- Size range
- Length 30–180 · Width 25–140 · Height 65–350 mm
- Manufacturing
- 40.5 × 40.5 × 115.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.029 m² · about 15 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- FBB 400SBS 350SBS 300Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Double crease
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 40.5 × 115.5 | – × H + T |
| Left side | 40.5 × 115.5 | – × H + T |
| Back | 40.5 × 115.5 | – × H + T |
| Right side | 40 × 115.5 | – × H + T |
| Glue flap | 12 × 115.5 | – × H + T |
| Top closure | 40.5 × 39.5 | – |
| Top tuck | 39.5 × 15 | – |
| Top dust flap | 40.5 × 19.2 | – |
| Top dust flap | 40 × 19.2 | – |
| Snap end | 40.5 × 13.3 | – |
| Snap end | 40 × 13.3 | – |
| Snap bottom | 40.5 × 26 | – |
| Snap tuck | 40.5 × 25.5 | – |
| Neck support return | 36.6 × 28 | – |
| Bottle neck shelf | 36.6 × 38.6 | – |
| Bonded front brace | 36.6 × 13.8 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Bottom2 options
- Neck openingmm
- Support from topmm
- Radial grip fingerson / off
- Tuck depthmm
- Slit lockon / off
The bottle neck-lock carton family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this miniature bottle neck-lock box yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
