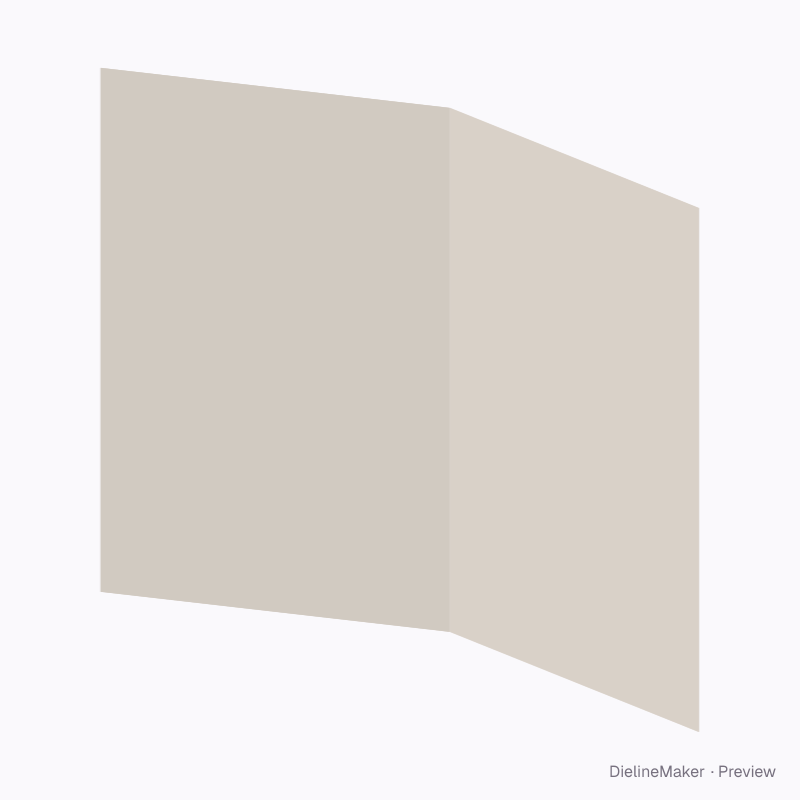

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
US tabloid newspaper dieline
279.4 × 431.8 mm finished format with editable dimensions and artwork. A ready-sized preset of the newspaper — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside279.4 × 431.8 mm
Outside279.4 × 431.8 mm
Flat blank558.8 × 431.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Page width 279.4 · Page height 431.8 mm
- Size range
- Page width 75–450 · Page height 100–650 mm
- Manufacturing
- 279.4 × 431.8 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Outer sheet / cover, Inner sheet 2
- Board area
- 0.483 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.16 mm for Art paper 170 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Right page / frontOuter sheet / cover | 279.4 × 431.8 | L × H |
| Left page / backOuter sheet / cover | 279.4 × 431.8 | L × H |
| Right page / frontInner sheet 2 | 279.4 × 431.8 | L × H |
| Left page / backInner sheet 2 | 279.4 × 431.8 | L × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Sheets / pages6 options
The newspaper family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this us tabloid newspaper yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
