Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0351Shipping
Self-locking octabin 1100×1100×900 dieline
Caps lock without glue: rolled corner walls trap the flaps and tongue into the base. A ready-sized preset of the octabin bulk container — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside1100 × 1100 × 900 mm
Outside1124.4 × 1124.4 × 909.2 mm
Flat blank3700.8 × 900 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0351
- Inside size
- Length 1100 · Width 1100 · Height 900 mm
- Size range
- Length 300–1400 · Width 300–1400 · Height 200–1600 mm
- Manufacturing
- 1100 × 1100 × 900 mm score to score · inside vs outside sizes
- Parts
- 3 parts — Body, Bottom cap, Top cap
- Board area
- 7.035 m²
- Default board
- EB double wall · 4.6 mm caliper
- Board options
- EB doubleB-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0351 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (4.6 mm for EB double wall). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Body wall ×4Body | 457.9 × 900 | – × H |
| Body wall ×4Body | 457.3 × 900 | – × H |
| Glue flapBody | 40 × 900 | – × H |
| Bottom capBottom cap | 645.4 × 100 | – |
| Bottom cap wall ×2Bottom cap | 490.2 × 135 | – |
| Corner flap ×4Bottom cap | 68 × 125.8 | – |
| Bottom cap wall ×4Bottom cap | 445.2 × 135 | – |
| Bottom cap wall roll ×2Bottom cap | 9.2 × 436 | – |
| Bottom cap wall (inside) ×2Bottom cap | 135 × 436 | – |
| Bottom cap wall ×2Bottom cap | 135 × 490.2 | – |
| Corner flap ×4Bottom cap | 125.8 × 68 | – |
| Bottom cap wall roll ×2Bottom cap | 436 × 9.2 | – |
| Bottom cap wall (inside) ×2Bottom cap | 436 × 135 | – |
| Pose rigBottom cap | 159.6 × 100 | – |
| Top capTop cap | 100 × 645.4 | – |
| Top cap wall ×2Top cap | 135 × 490.2 | – |
9 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Caps2 options
- Corner cutmm
- Cap depthmm
- Corner flapmm

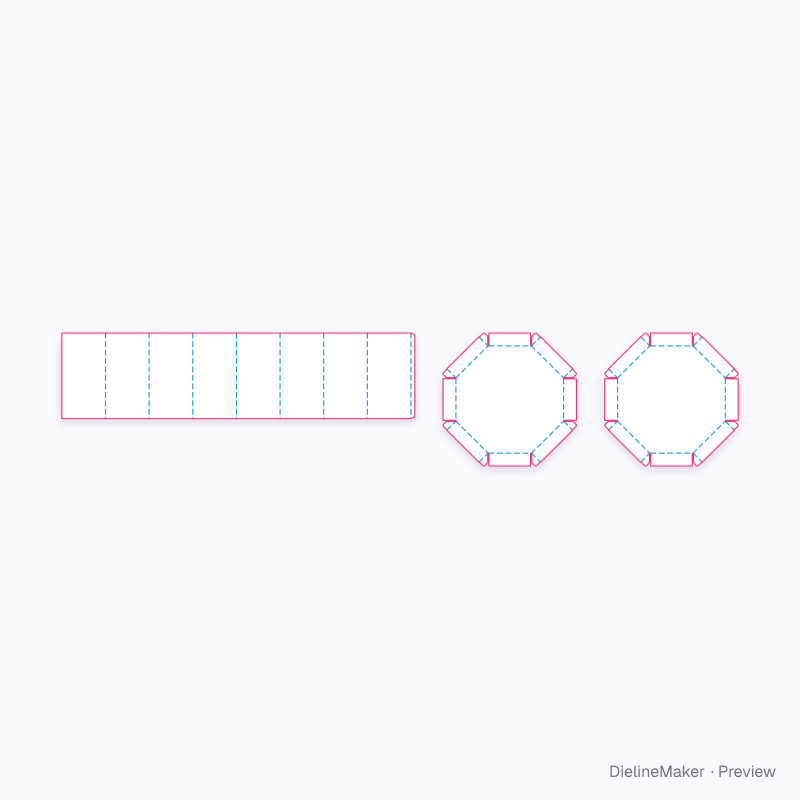

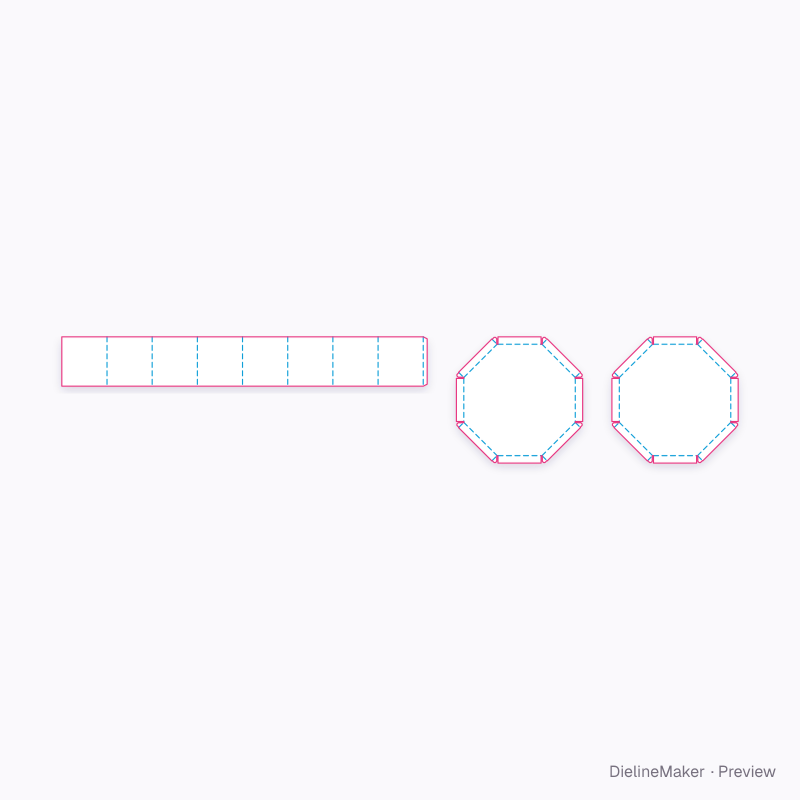

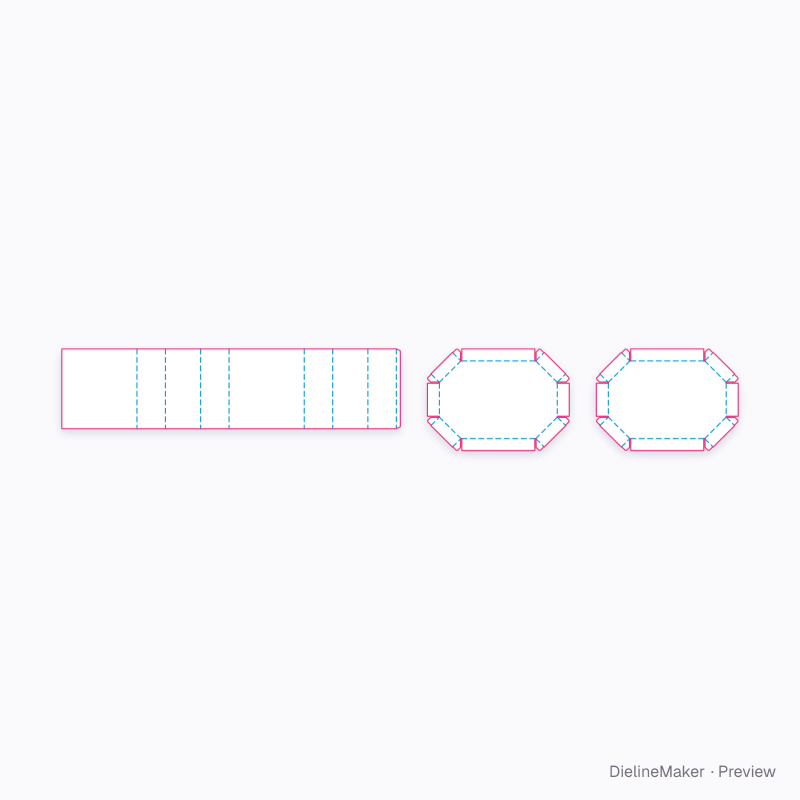

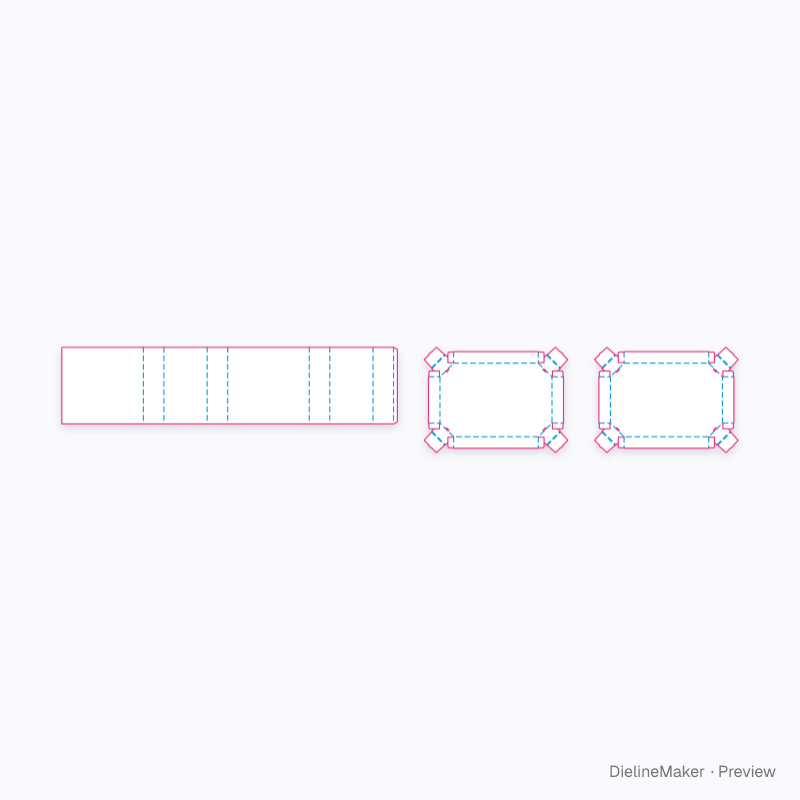

The octabin bulk container family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this self-locking octabin 1100×1100×900 yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
