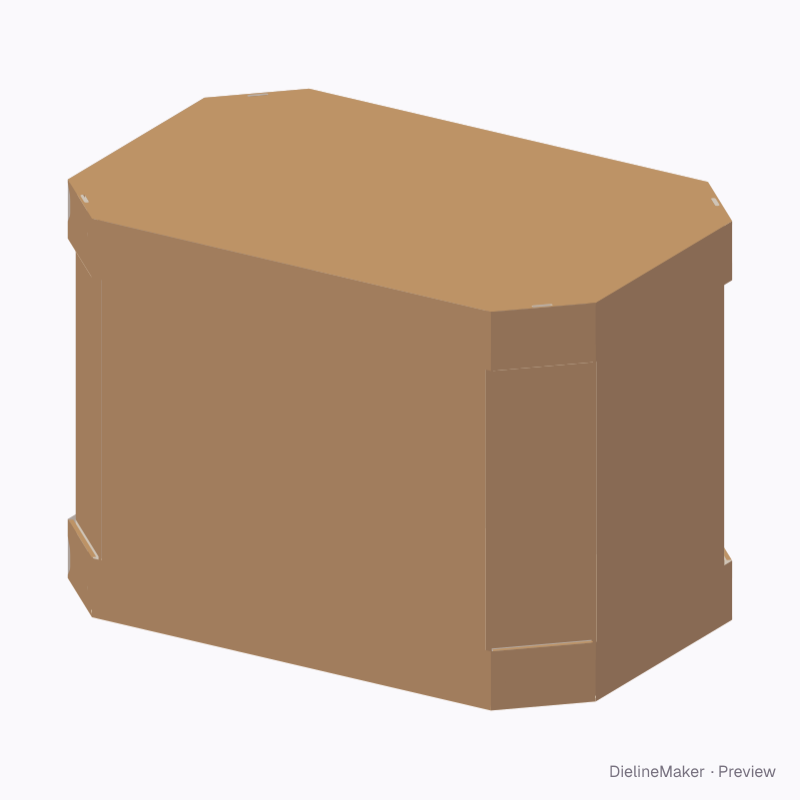

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0352Shipping
Elongated self-locking octabin 1150×750×800 dieline
Elongated octagon with short corners and self-locking caps. A ready-sized preset of the octabin bulk container — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside1150 × 750 × 800 mm
Outside1174.4 × 774.4 × 809.2 mm
Flat blank3503.8 × 800 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0352
- Inside size
- Length 1150 · Width 750 · Height 800 mm
- Size range
- Length 300–1400 · Width 300–1400 · Height 200–1600 mm
- Manufacturing
- 1150 × 750 × 800 mm score to score · inside vs outside sizes
- Parts
- 3 parts — Body, Bottom cap, Top cap
- Board area
- 5.640 m²
- Default board
- EB double wall · 4.6 mm caliper
- Board options
- EB doubleB-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0352 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (4.6 mm for EB double wall). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Body wall ×2Body | 851.9 × 800 | – × H |
| Body wall ×4Body | 214 × 800 | – × H |
| Body wall ×2Body | 451.9 × 800 | – × H |
| Glue flapBody | 40 × 800 | – × H |
| Bottom capBottom cap | 882.4 × 100 | – |
| Bottom cap wall ×2Bottom cap | 884.2 × 120 | – |
| Corner flap ×4Bottom cap | 60 × 110.8 | – |
| Bottom cap wall ×4Bottom cap | 201.9 × 120 | – |
| Bottom cap wall roll ×4Bottom cap | 192.7 × 9.2 | – |
| Bottom cap wall (inside) ×4Bottom cap | 192.7 × 120 | – |
| Bottom cap wall ×2Bottom cap | 120 × 484.2 | – |
| Corner flap ×4Bottom cap | 110.8 × 60 | – |
| Pose rigBottom cap | 144.6 × 100 | – |
| Top capTop cap | 100 × 482.4 | – |
| Top cap wall ×2Top cap | 120 × 484.2 | – |
| Corner flap ×4Top cap | 110.8 × 60 | – |
