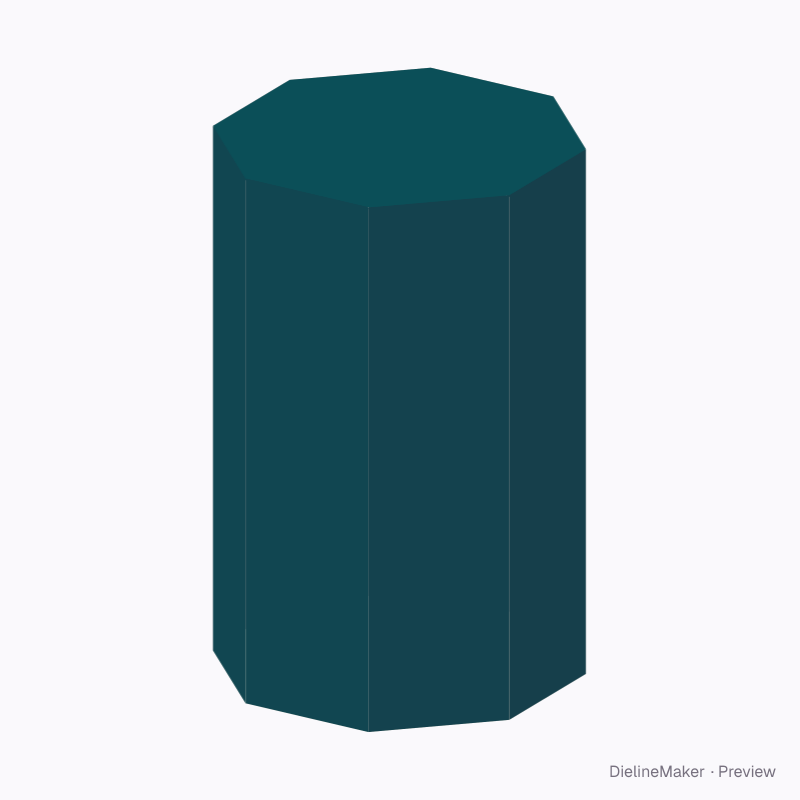

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShapes
Octagon tea box dieline
Tall octagon for 100 g of loose tea in a bag. A ready-sized preset of the octagon box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 80 × 130 mm
OutsideØ 80.9 × 130.9 mm
Flat blank289.7 × 326.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Across flats 80 · Height 130 mm
- Size range
- Across flats 40–300 · Height 20–400 mm
- Manufacturing
- Ø 80.5 × 130.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.055 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350Black 350SBS 18 pt
- Good for

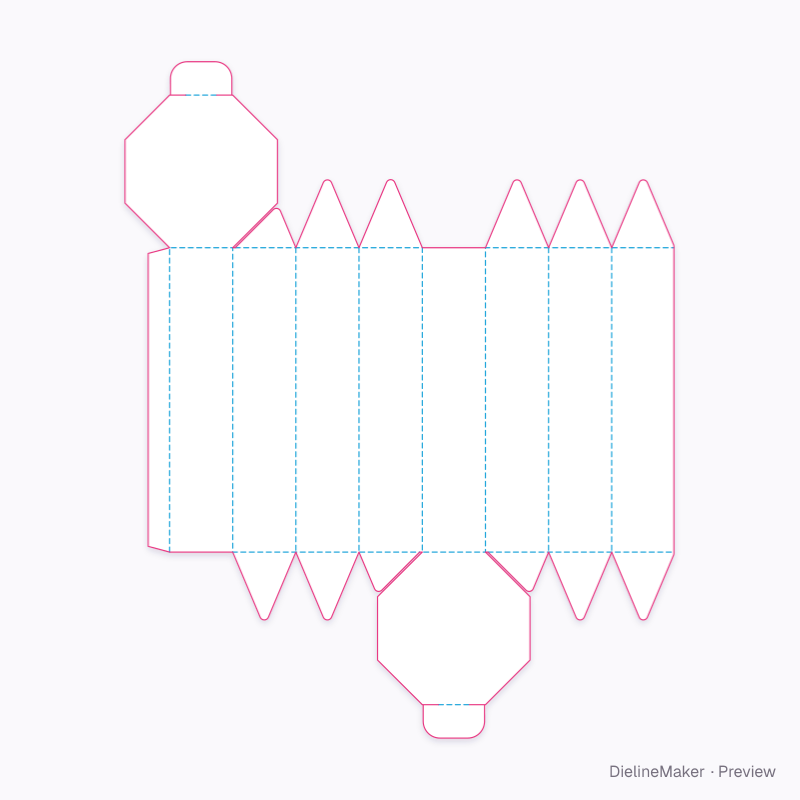

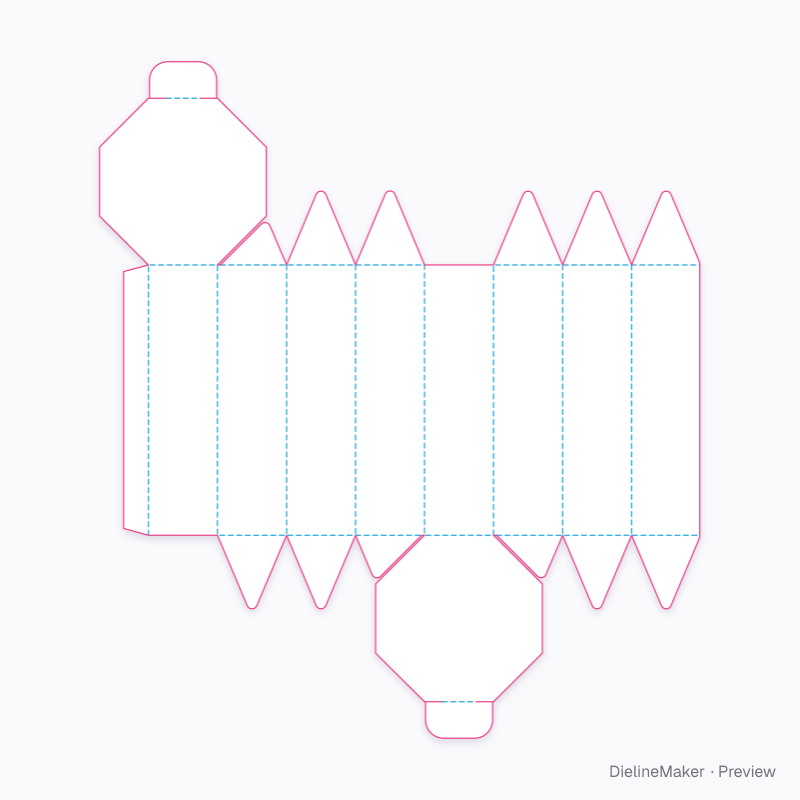

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Back | 33.3 × 130.5 | (D + T)·tan 22.5° × H + T |
| Back left | 33.3 × 130.5 | (D + T)·tan 22.5° × H + T |
| Left | 33.3 × 130.5 | (D + T)·tan 22.5° × H + T |
| Front left | 33.3 × 130.5 | (D + T)·tan 22.5° × H + T |
| Front | 33.3 × 130.5 | (D + T)·tan 22.5° × H + T |
| Front right | 33.3 × 130.5 | (D + T)·tan 22.5° × H + T |
| Right | 33.3 × 130.5 | (D + T)·tan 22.5° × H + T |
| Back right | 32.9 × 130.5 | (D + T)·tan 22.5° − T × H + T |
| Glue flap | 12 × 130.5 | – × H + T |
| Top lid | 33.3 × 80.5 | – × L + T |
| Tuck ×2 | 32.4 × 17.6 | – |
| Top dust flap | 31.9 × 20.5 | – |
| Top dust flap ×4 | 33.3 × 35.4 | – |
| Top dust flap | 32.9 × 35.4 | – |
| Bottom lid | 33.3 × 80.5 | – × L + T |
| Bottom dust flap ×3 | 33.3 × 35.4 | – |
2 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Tuck depthmm
- Slit lockon / off

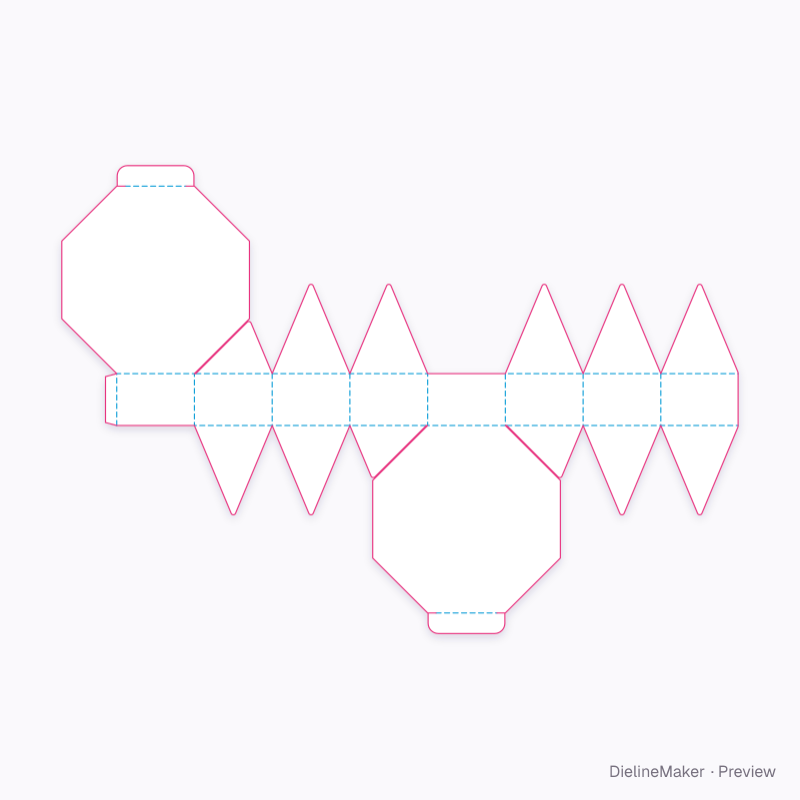

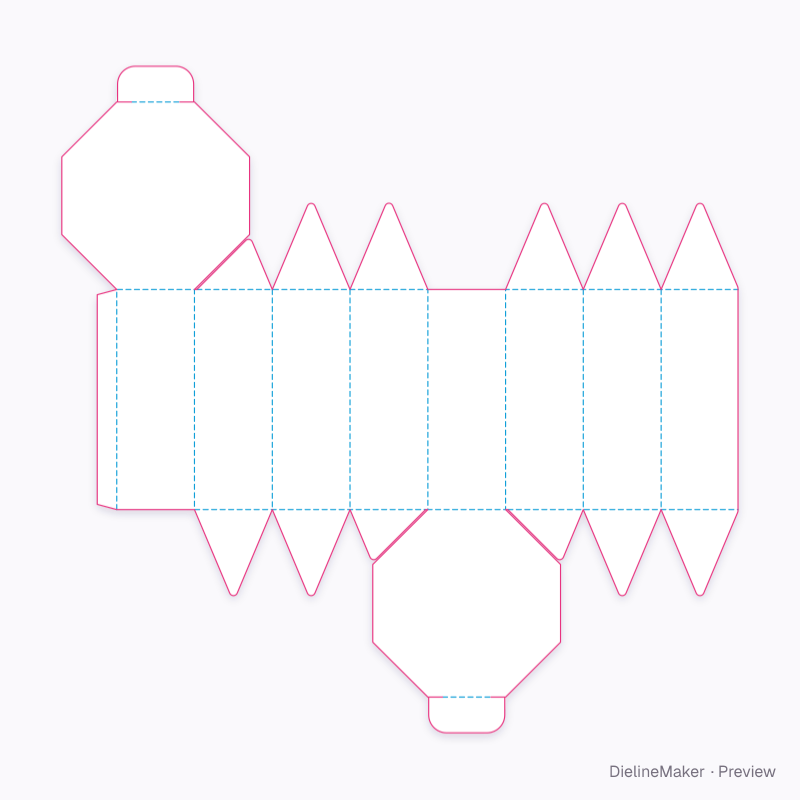

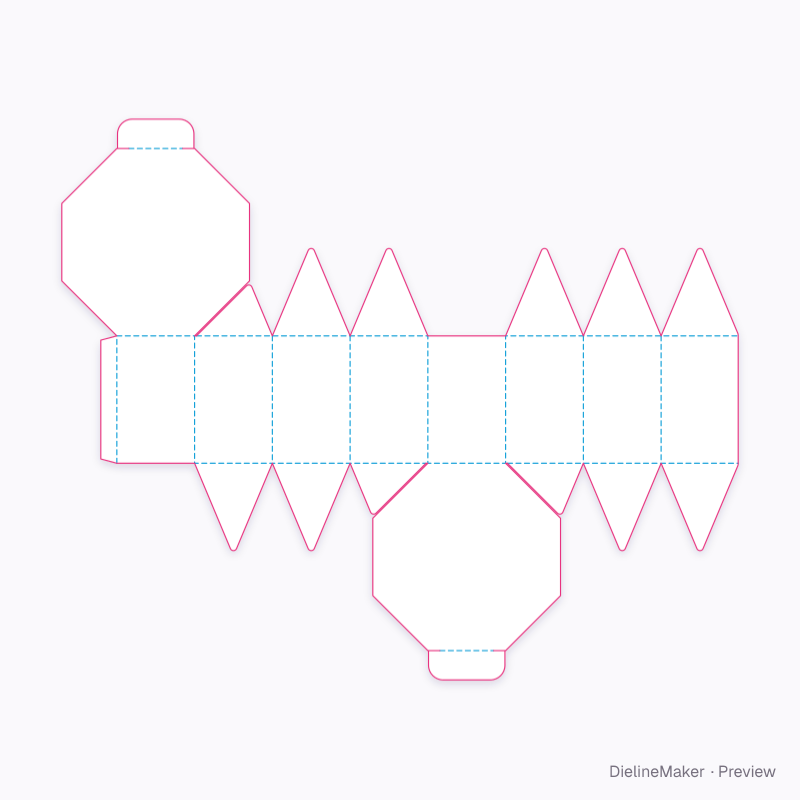

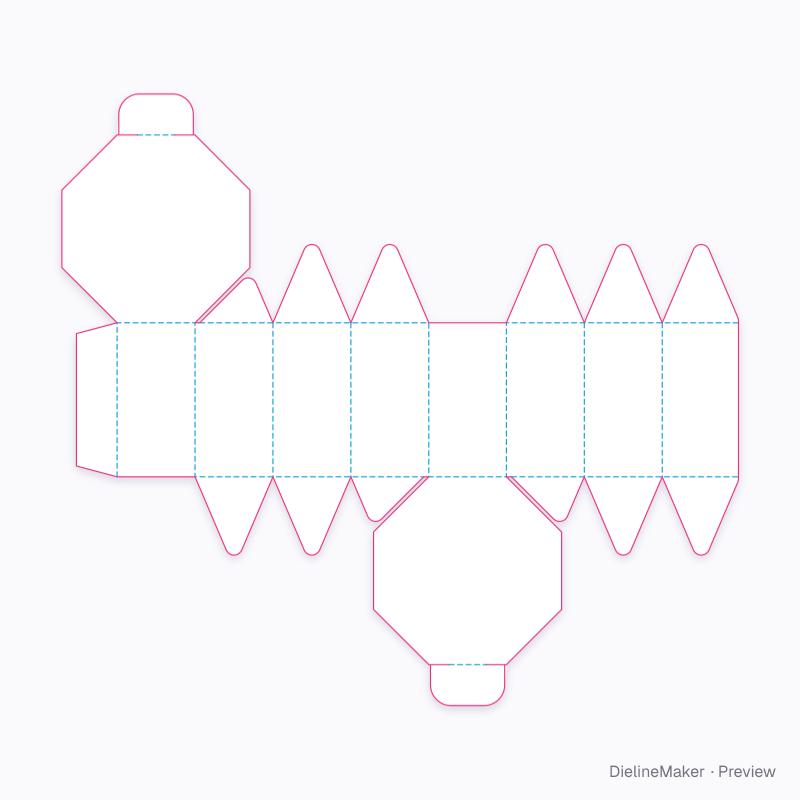

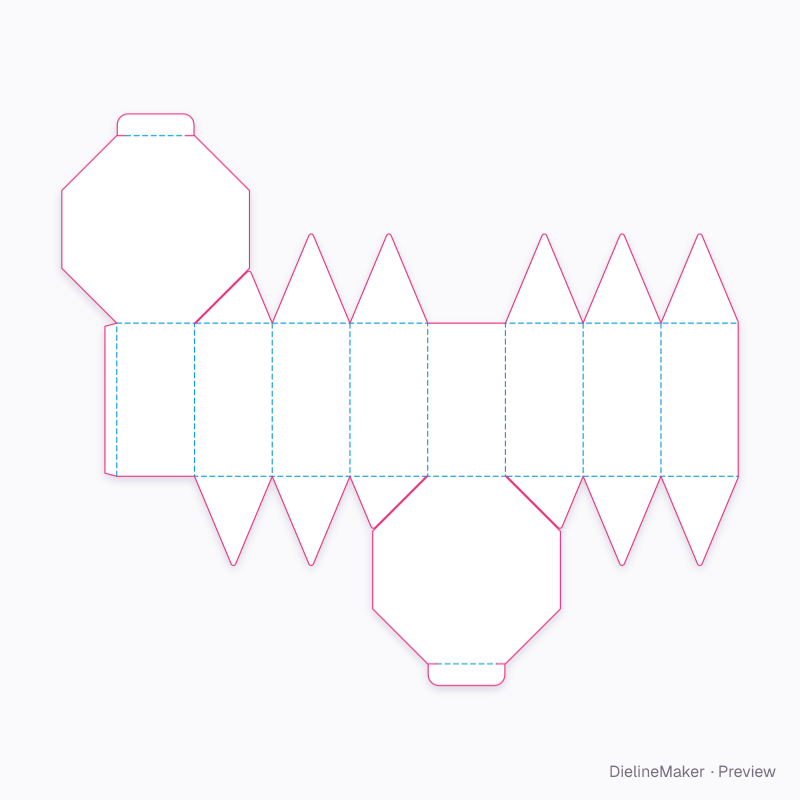

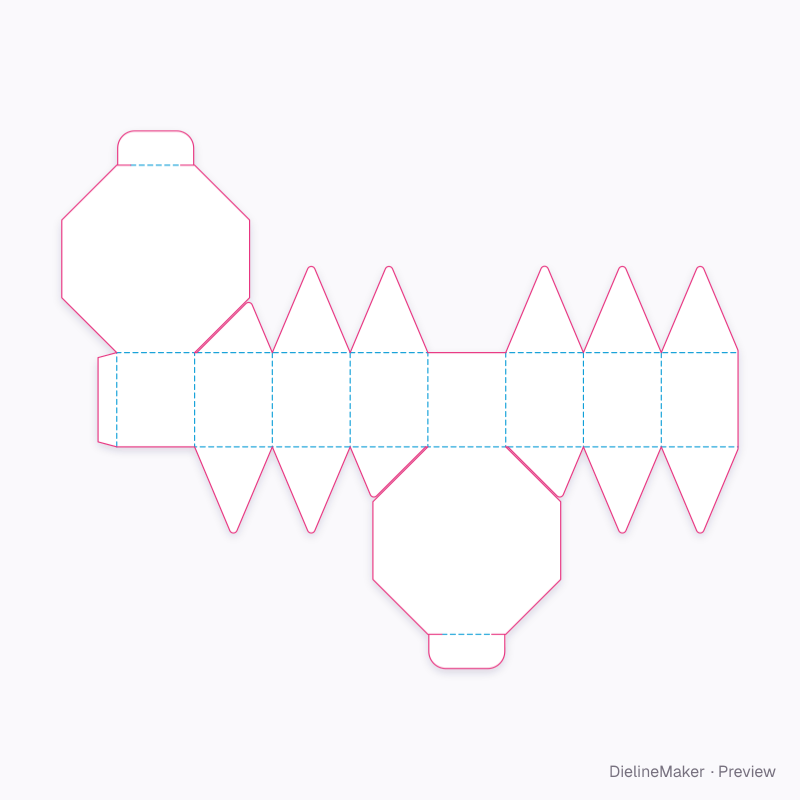

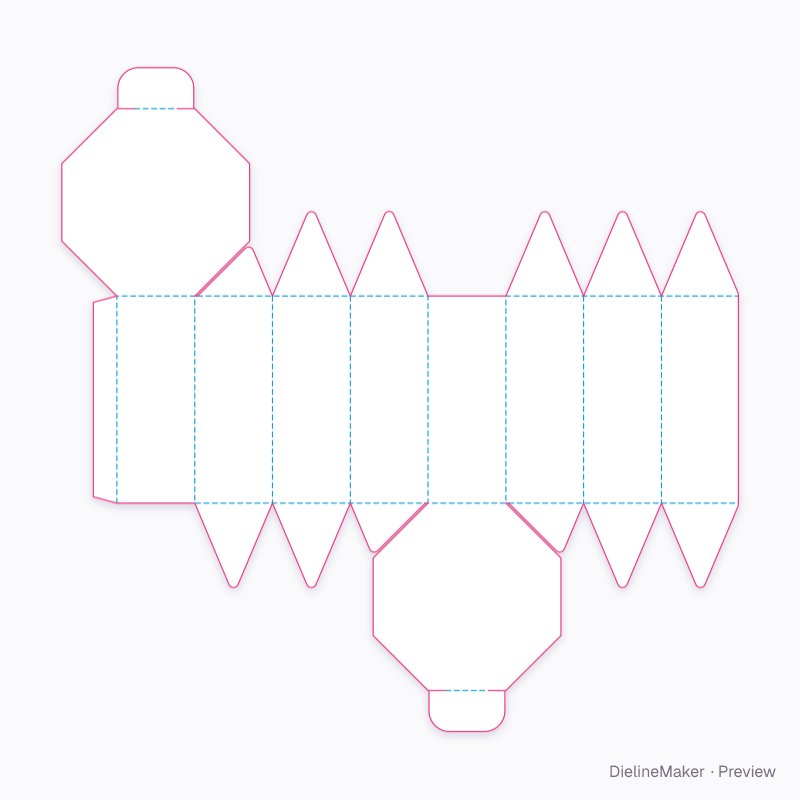

The octagon box family
