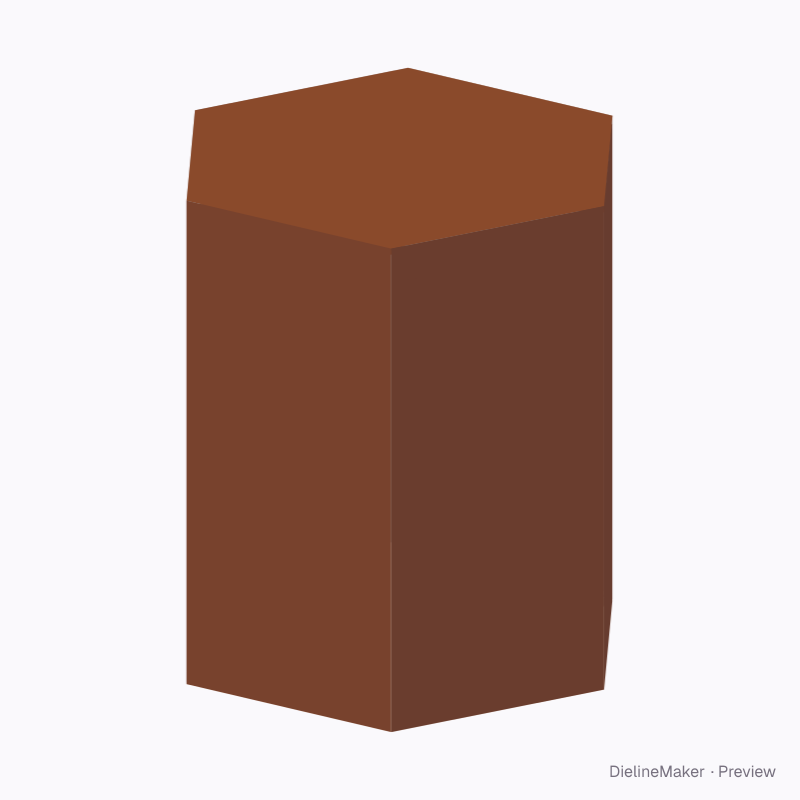

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0730Shapes
Hexagonal automatic-bottom case dieline
A six-sided pre-glued case with a full hexagonal floor, diagonal bottom webs and two oblique lid tucks. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 200 × 250 mm
OutsideØ 206.4 × 259.6 mm
Flat blank732.7 × 664.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0730
- Inside size
- Across flats 200 · Height 250 mm
- Size range
- Across flats 80–600 · Height 50–900 mm
- Manufacturing
- Ø 203.2 × 253.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.302 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute WF-flute
- Good for

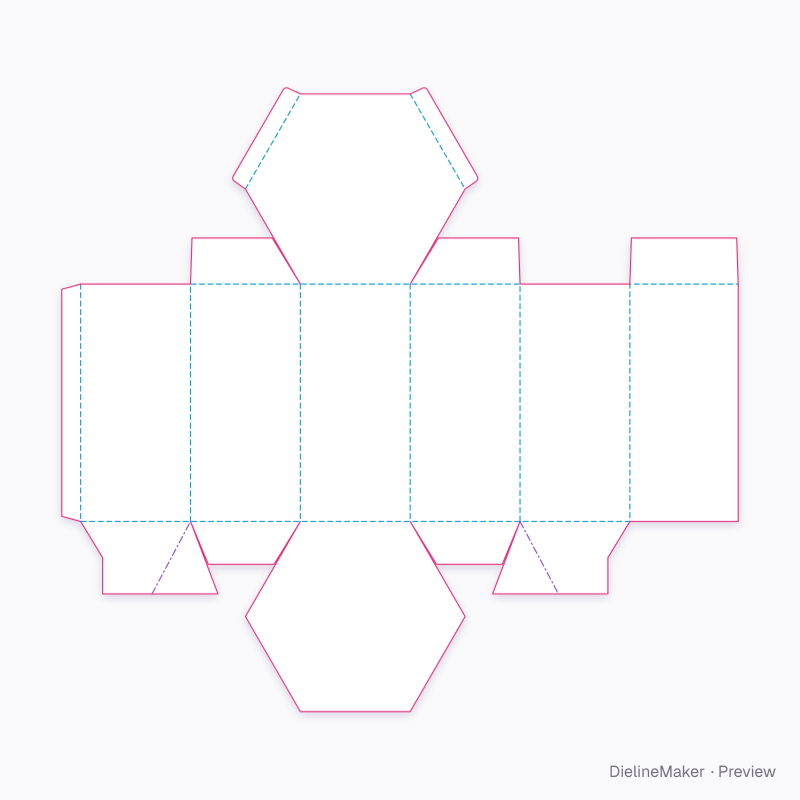

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0730 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Back | 117.3 × 253.2 | (ICD + T)·tan 30° × H + T |
| Back left | 117.3 × 253.2 | (ICD + T)·tan 30° × H + T |
| Front left | 117.3 × 253.2 | (ICD + T)·tan 30° × H + T |
| Front | 117.3 × 253.2 | (ICD + T)·tan 30° × H + T |
| Front right | 117.3 × 253.2 | (ICD + T)·tan 30° × H + T |
| Back right | 114.1 × 253.2 | (ICD + T)·tan 30° − T × H + T |
| Glue flap | 32 × 253.2 | – × H + T |
| Hexagonal lid | 117.3 × 203.2 | – × L + T |
| Full hexagonal floor | 117.3 × 203.2 | – × L + T |
| Oblique lid tuck ×2 | 18 × 117.3 | – |
| Top inner flap ×2 | 117.3 × 49.3 | – |
| Top inner flap | 114.1 × 49.3 | – |
| Diagonal automatic floor flap ×2 | 117.3 × 77.4 | – |
| Pre-glued diagonal web ×2 | 62.2 × 87.6 | – |
| Automatic floor inner flap ×2 | 117.3 × 45.8 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Lid tuck depthmm

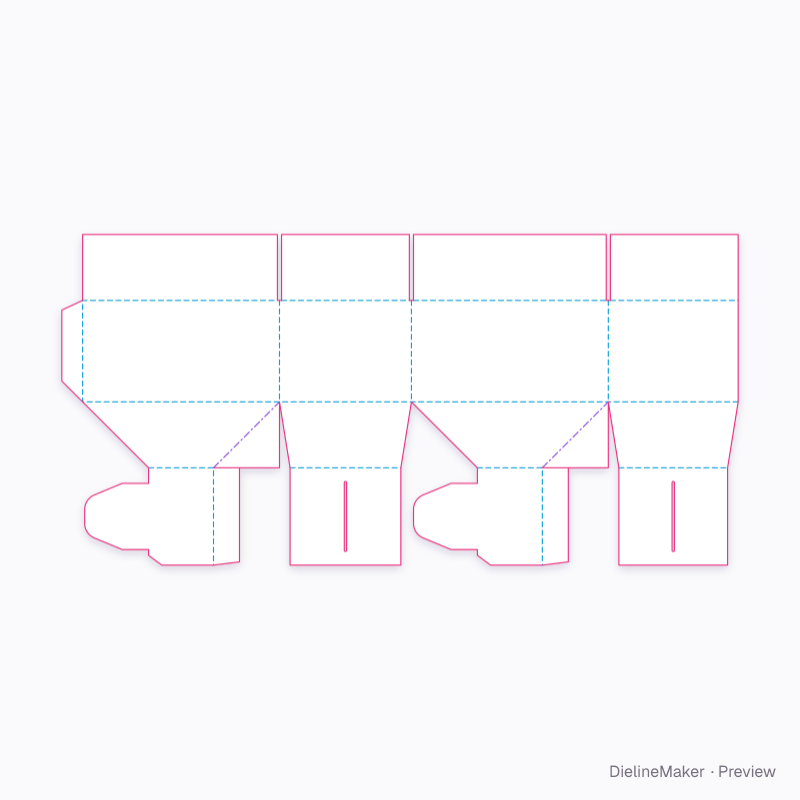

Ready-sized hexagonal automatic-bottom case presets
The same structure with sizes, boards and options set for a use.
- Preset

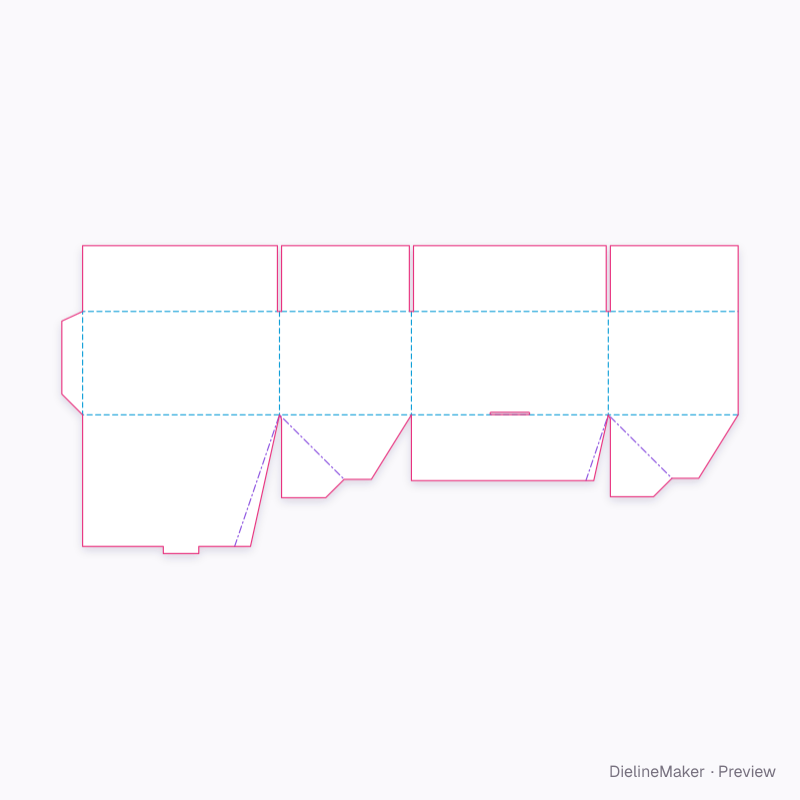

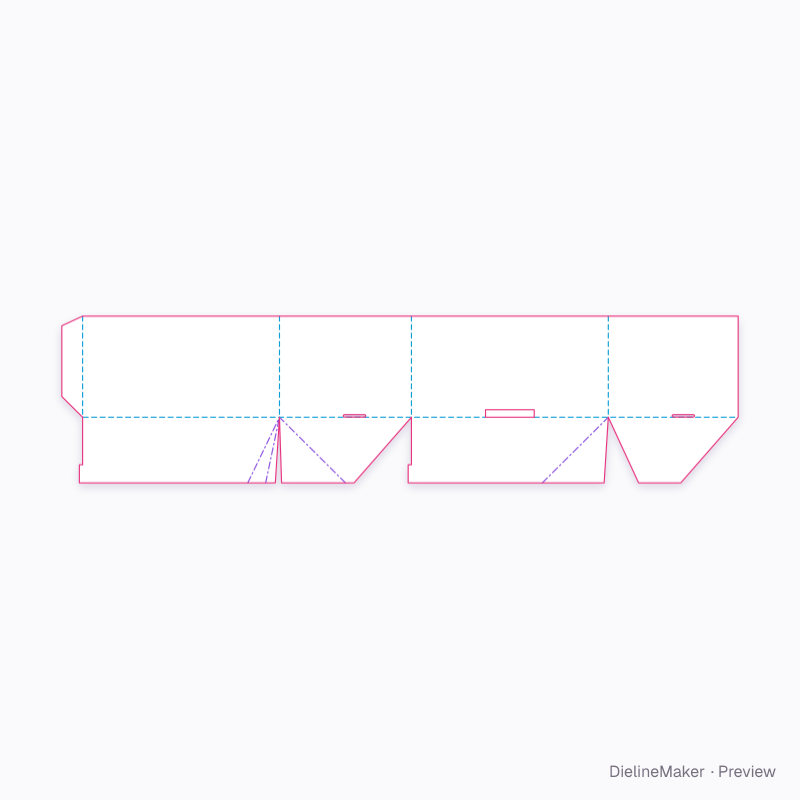

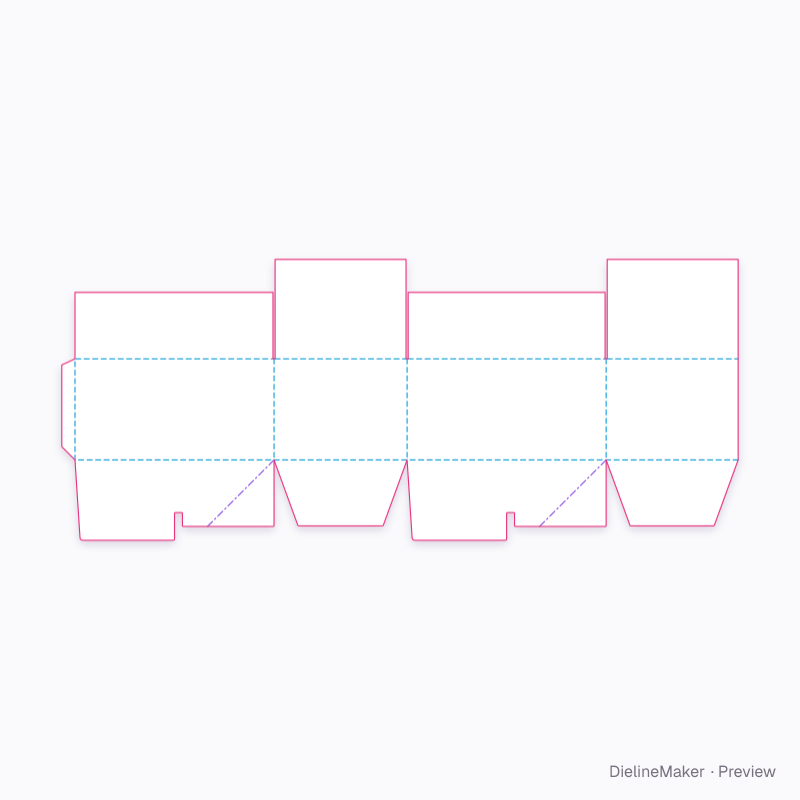

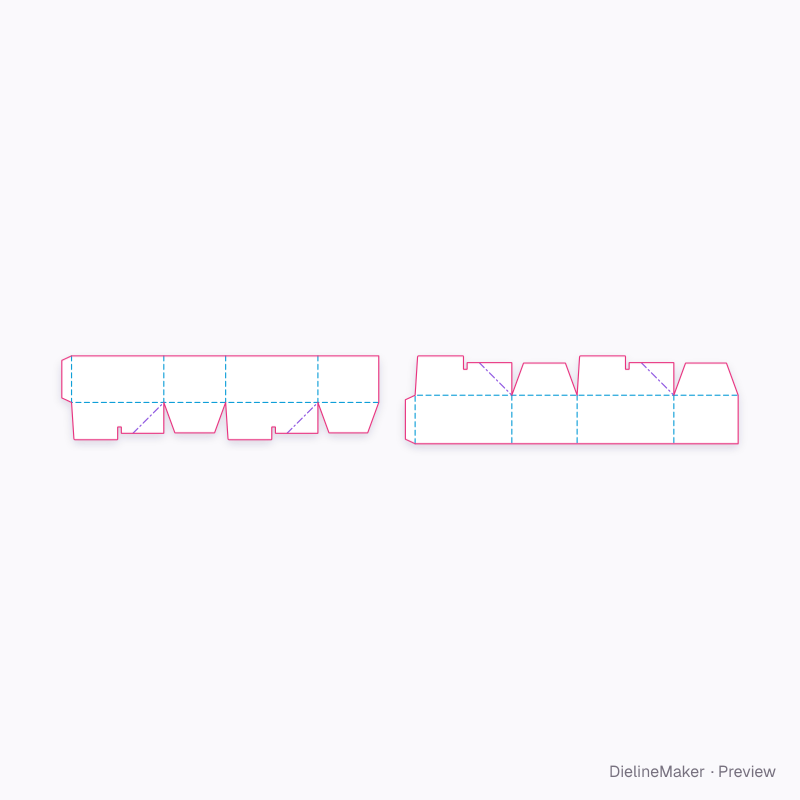

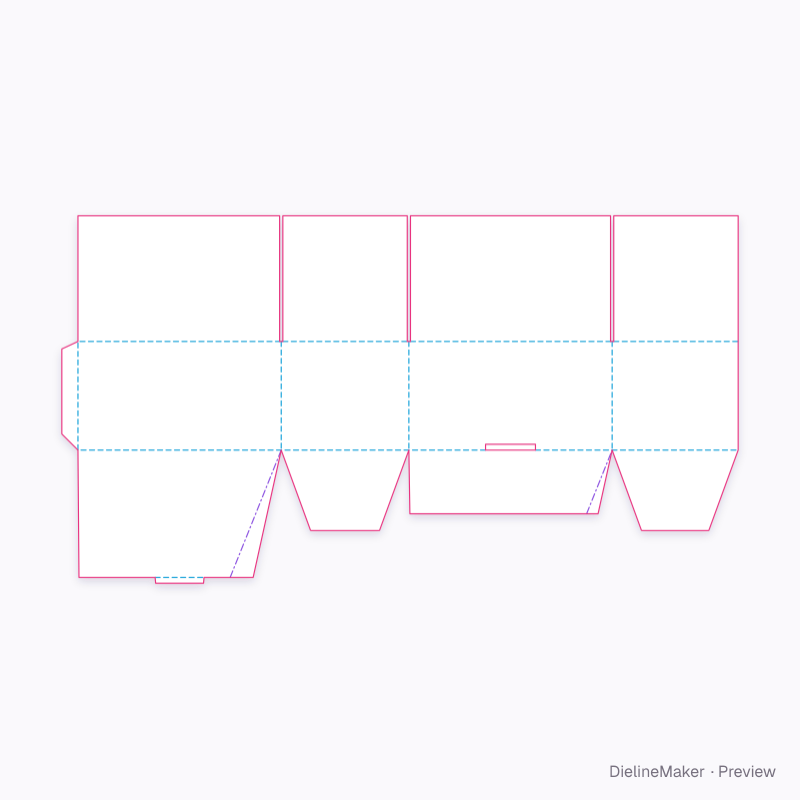

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this hexagonal automatic-bottom case yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
