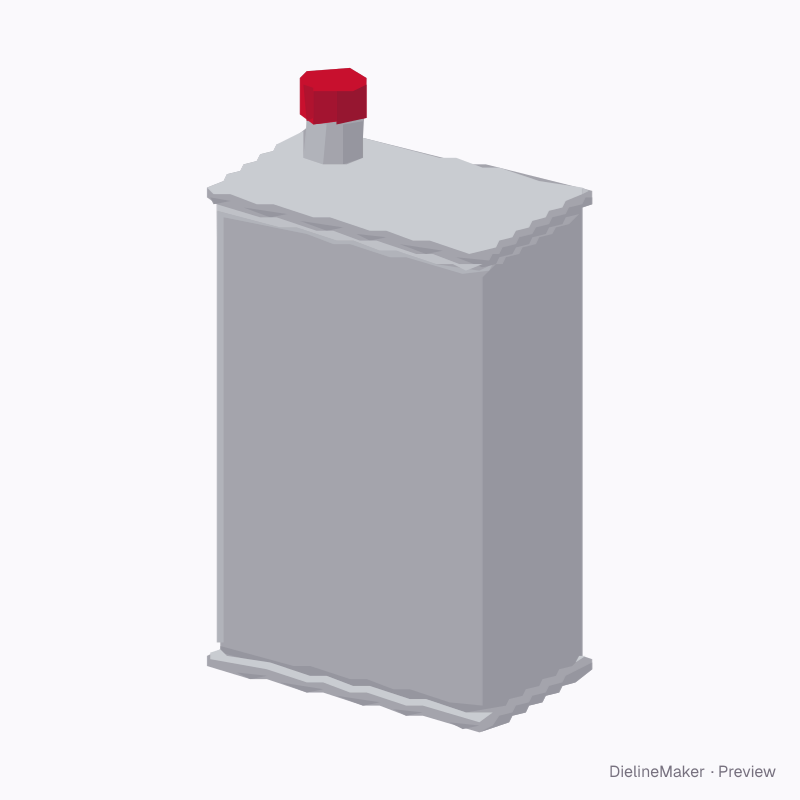

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-OILCAN-01Labels
Square 1 L oil can dieline
A seamed metal oil can, rectangular or round, with a small capped pour neck and an optional folding grip, wire bail or handle loop. Plain or ribbed walls; print the front and back panels or the round wrap. A ready-sized preset of the metal oil can (pour neck) — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside110 × 65 × 175 mm
Outside110 × 65 × 175 mm
Flat blank102 × 159 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-OILCAN-01
- Inside size
- Width / diameter 110 · Depth 65 · Body height 175 mm
- Size range
- Width / diameter 50–350 · Depth 30–250 · Body height 80–450 mm
- Manufacturing
- 110 × 65 × 175 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Front panel, Back panel
- Board area
- 0.032 m² · about 36 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 7 options; the template and 3D preview follow each change.
- Body2 options
- Pour neck3 options
- Handle4 options
- Ribbed wallson / off
- Embossed panel frameon / off
- Print the topon / off
