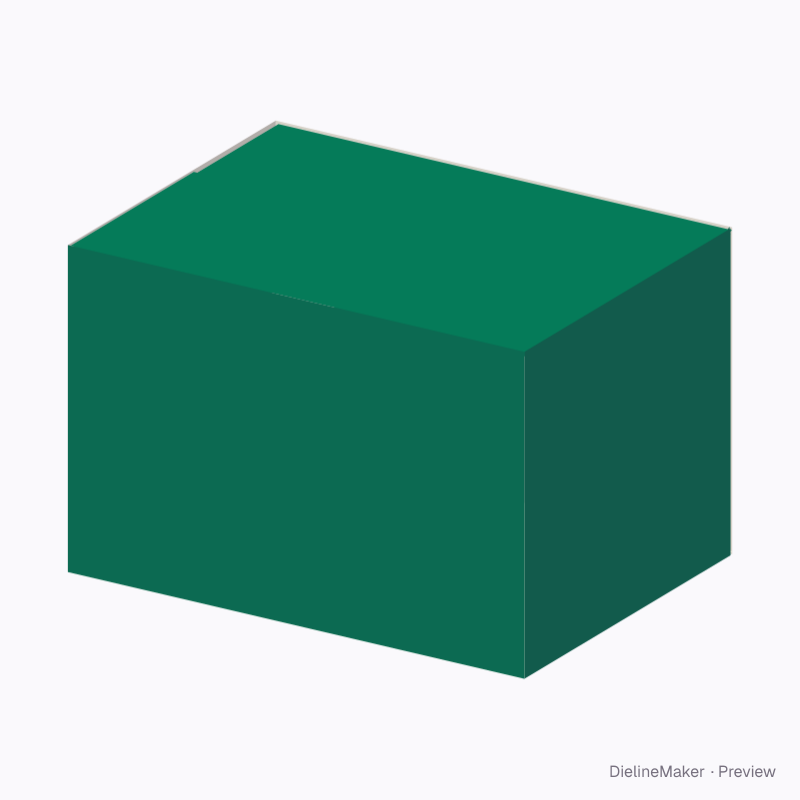

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0202Shipping
Housewares shipping carton — Overlap slotted box dieline
Editable 550 × 400 × 350 mm starting point using overlap slotted box. Adjust the dimensions to your product before prototyping. A ready-sized preset of the overlap slotted box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside550 × 400 × 350 mm
Outside556.4 × 406.4 × 369.2 mm
Flat blank1941.6 × 841 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0202
- Inside size
- Length 550 · Width 400 · Height 350 mm
- Size range
- Length 80–1200 · Width 60–1000 · Height 40–1200 mm
- Manufacturing
- 553.2 × 403.2 × 362.8 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 1.608 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute WF-flute
- Good for
The flat dieline

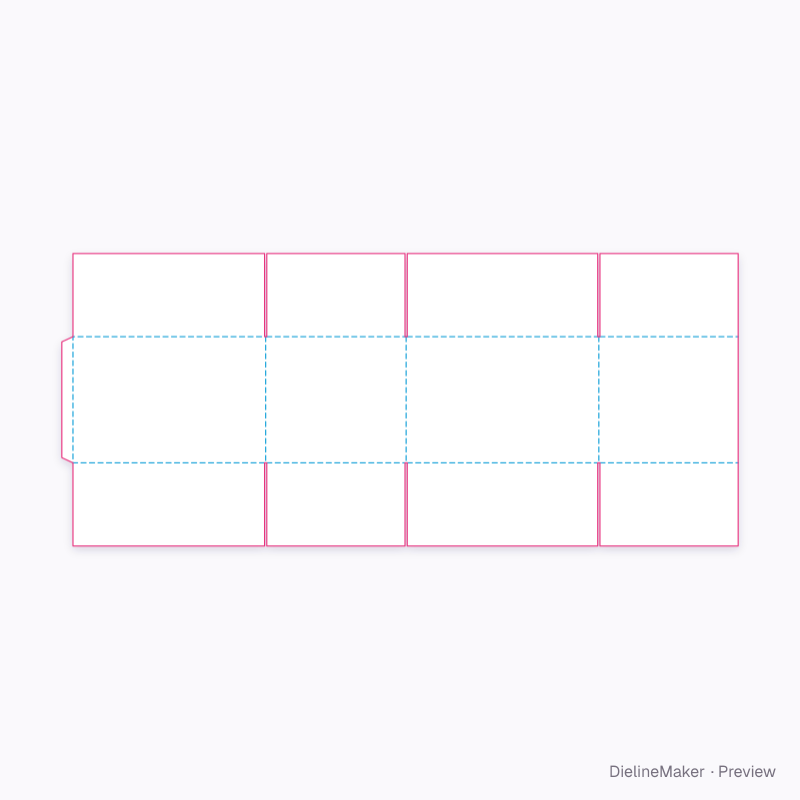

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0202 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 553.2 × 362.8 | L + T × H + 4T |
| Left side | 403.2 × 362.8 | W + T × H + 4T |
| Back | 553.2 × 362.8 | L + T × H + 4T |
| Right side | 400 × 362.8 | W × H + 4T |
| Glue flap | 32 × 362.8 | – |
| Bottom outer flap | 550 × 239.1 | L × – |
| Bottom inner flap ×2 | 396.8 × 239.1 | W − T × – |
| Bottom outer flap | 546.8 × 239.1 | L − T × – |
| Top outer flap | 550 × 239.1 | L × – |
| Top inner flap ×2 | 396.8 × 239.1 | W − T × – |
| Top outer flap | 546.8 × 239.1 | L − T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
