FEFCO 0202Shipping
Archive storage carton — Overlap slotted box dieline
Editable 420 × 320 × 280 mm starting point using overlap slotted box. Adjust the dimensions to your product before prototyping. A ready-sized preset of the overlap slotted box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside420 × 320 × 280 mm
Outside426.4 × 326.4 × 299.2 mm
Flat blank1521.6 × 680 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0202
- Inside size
- Length 420 · Width 320 · Height 280 mm
- Size range
- Length 80–1200 · Width 60–1000 · Height 40–1200 mm
- Manufacturing
- 423.2 × 323.2 × 292.8 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 1.014 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute WF-flute
- Good for

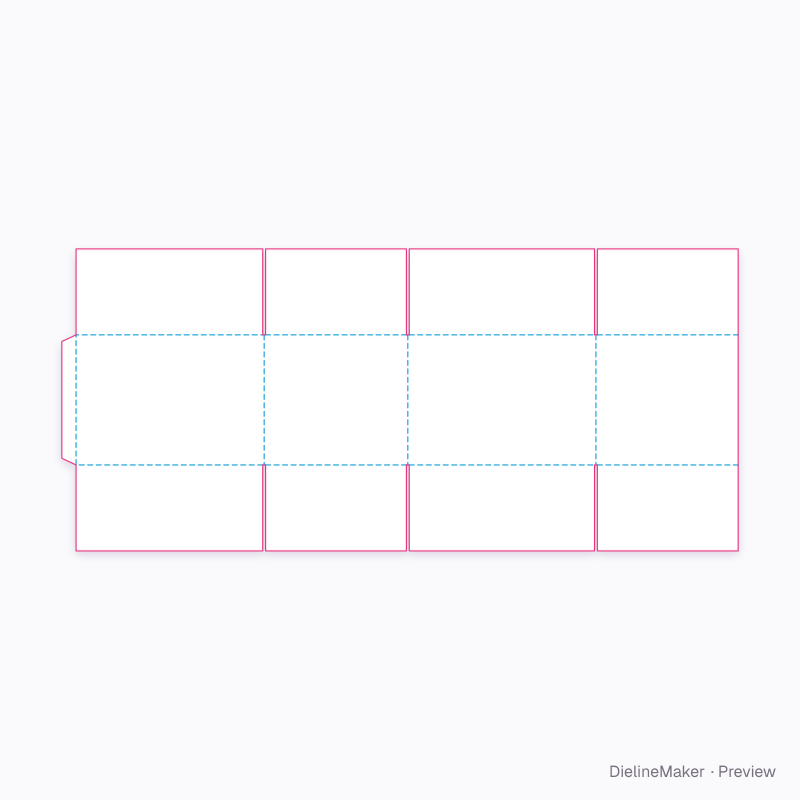

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0202 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 423.2 × 292.8 | L + T × H + 4T |
| Left side | 323.2 × 292.8 | W + T × H + 4T |
| Back | 423.2 × 292.8 | L + T × H + 4T |
| Right side | 320 × 292.8 | W × H + 4T |
| Glue flap | 32 × 292.8 | – |
| Bottom outer flap | 420 × 193.6 | L × – |
| Bottom inner flap ×2 | 316.8 × 193.6 | W − T × – |
| Bottom outer flap | 416.8 × 193.6 | L − T × – |
| Top outer flap | 420 × 193.6 | L × – |
| Top inner flap ×2 | 316.8 × 193.6 | W − T × – |
| Top outer flap | 416.8 × 193.6 | L − T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Flap overlapmm
- Hand holeson / off
The overlap slotted box family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
