Parametric structureMailer
Padded mailer #0 (6 × 10 in) dieline
Small bubble mailer for jewellery and accessories. A ready-sized preset of the padded mailer — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside152 × 254 mm
Outside152 × 254 mm
Flat blank152 × 538 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 152 · Length 254 mm
- Size range
- Width 100–600 · Length 120–800 mm
- Manufacturing
- 152 × 254 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.082 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- Kraft paper / PE laminate · 0.12 mm caliper
- Board options
- Kraft/PEWhite PET/PEMet PET/PE
- Good for

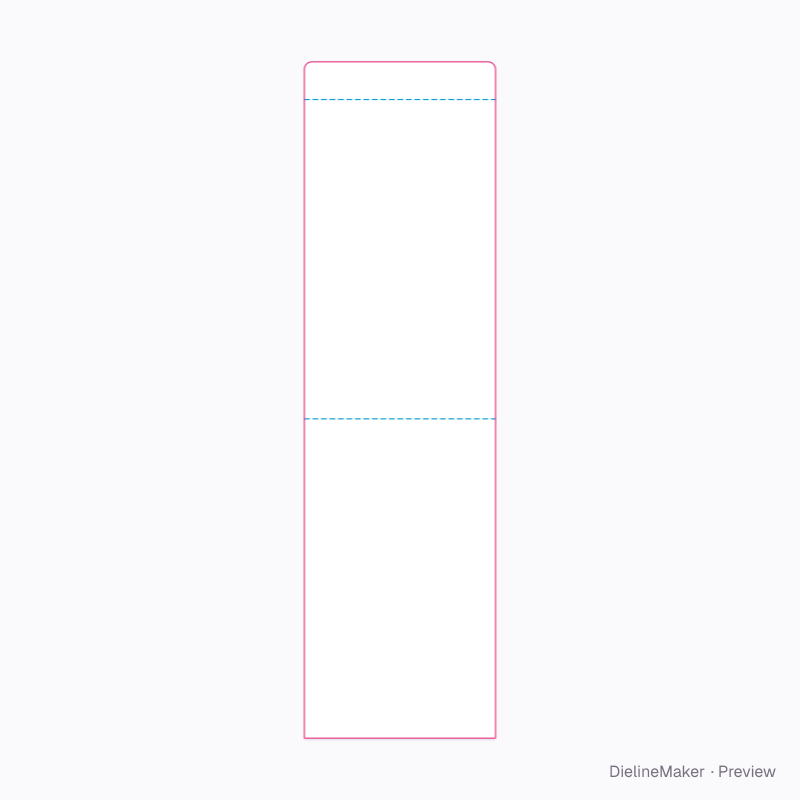

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.12 mm for Kraft paper / PE laminate). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 152 × 254 | L × H |
| Flap | 152 × 30 | L × – |
| Back | 152 × 254 | L × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Flapmm
- Side sealsmm
- Second adhesive strip for returnson / off
- Tear-open stripon / off
- Fill%
