Parametric structureMailer
Poly mailer dieline
Co-extruded poly mailing bag with a peel-and-seal flap: one printed web folded at the bottom and sealed at the sides. Apparel and soft goods. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside254 × 330 mm
Outside254 × 330 mm
Flat blank254 × 700 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 254 · Length 330 mm
- Size range
- Width 100–600 · Length 120–800 mm
- Manufacturing
- 254 × 330 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.178 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- White PET / PE laminate · 0.09 mm caliper
- Board options
- White PET/PEMet PET/PEKraft/PE
- Good for

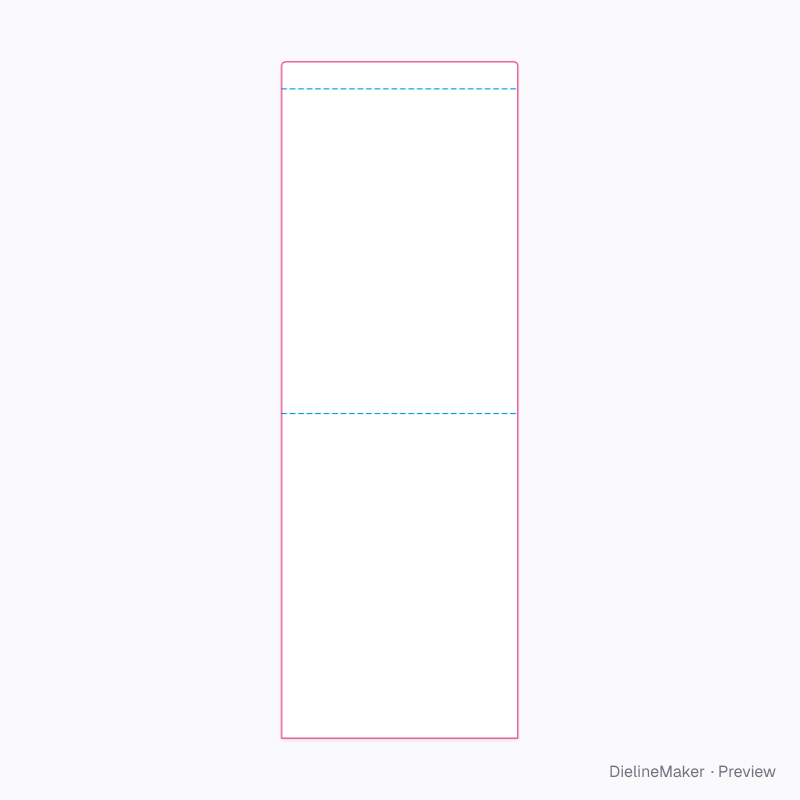

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.09 mm for White PET / PE laminate). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 254 × 330 | L × H |
| Flap | 254 × 40 | L × – |
| Back | 254 × 330 | L × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Flapmm
- Side sealsmm
- Second adhesive strip for returnson / off
- Tear-open stripon / off
- Fill%
