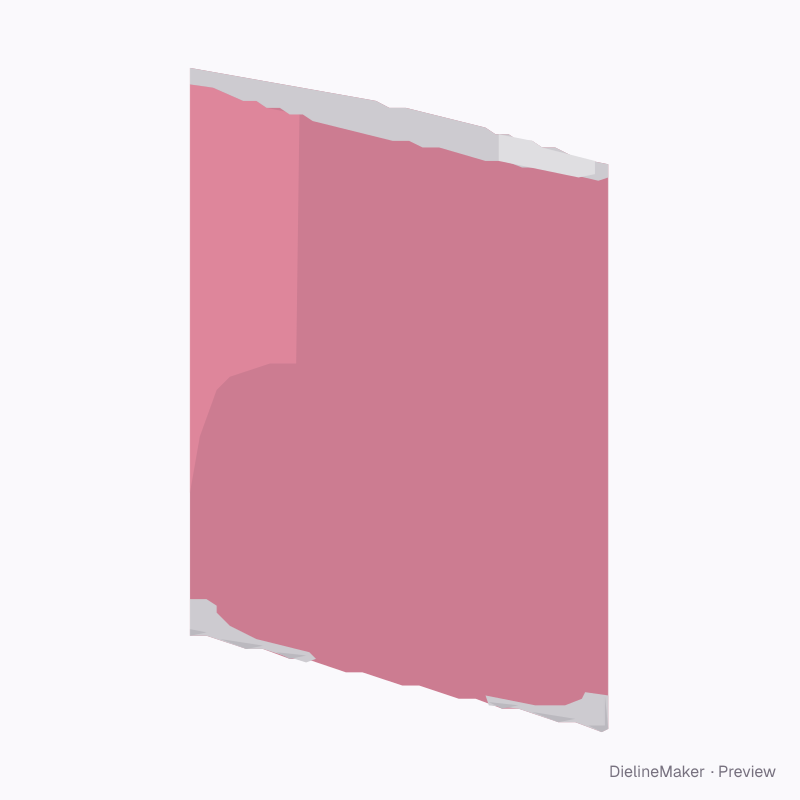

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureBags & pouches
Flat pastry paper bag dieline
An open-mouth paper food bag with a glued longitudinal seam and folded pinch / V bottom. Set the side gusset to zero for a flat bag or add gussets for a bread satchel. The optional cut window has a separate clear backing piece. Use converter-approved greaseproof or barrier-coated food-contact paper, compatible adhesive and suitable window film; the selectable art paper and kraft stocks are preview references. Check conversion, bottom closure and product compatibility with the supplier. A ready-sized preset of the flat / satchel paper food bag — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside150 × 180 mm
Outside150 × 180 mm
Flat blank312 × 197 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Face width 150 · Finished bag height 180 mm
- Size range
- Face width 80–350 · Finished bag height 100–650 mm
- Manufacturing
- 150 × 180 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.061 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170Kraft 350
- Good for

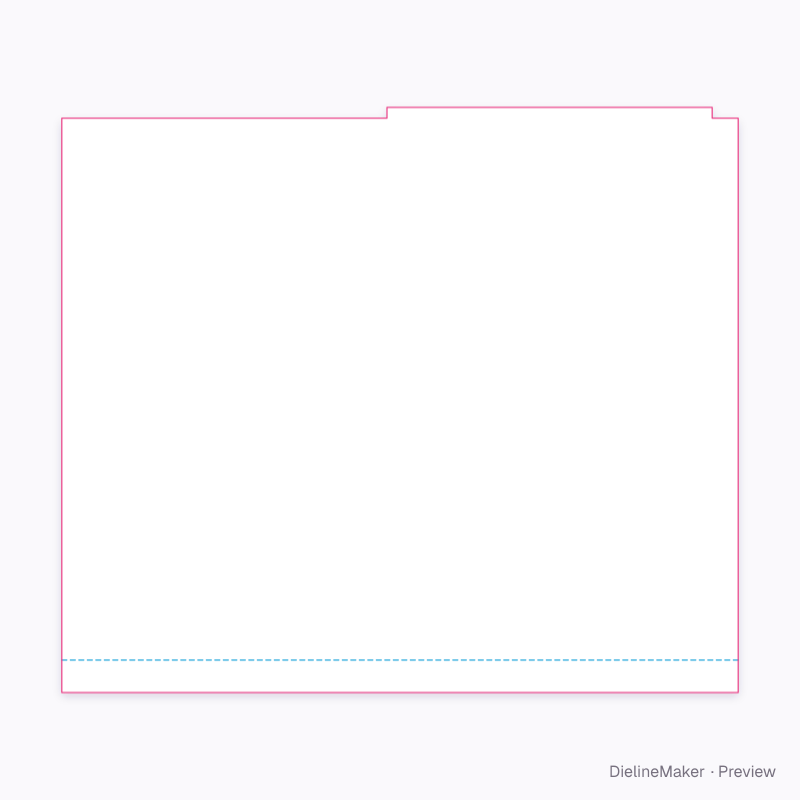

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.16 mm for Art paper 170 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 150 × 192 | L × – |
| Back with mouth lip | 150 × 192 | L × – |
| Longitudinal glue lap | 12 × 192 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 7 options; the template and 3D preview follow each change.
- Opened side gussetmm
- Longitudinal glue lapmm
- Pinch bottom foldmm
- Extended back mouth lipmm
- Clear-backed cut windowon / off
- Mouth closure2 options
- Preview opening%

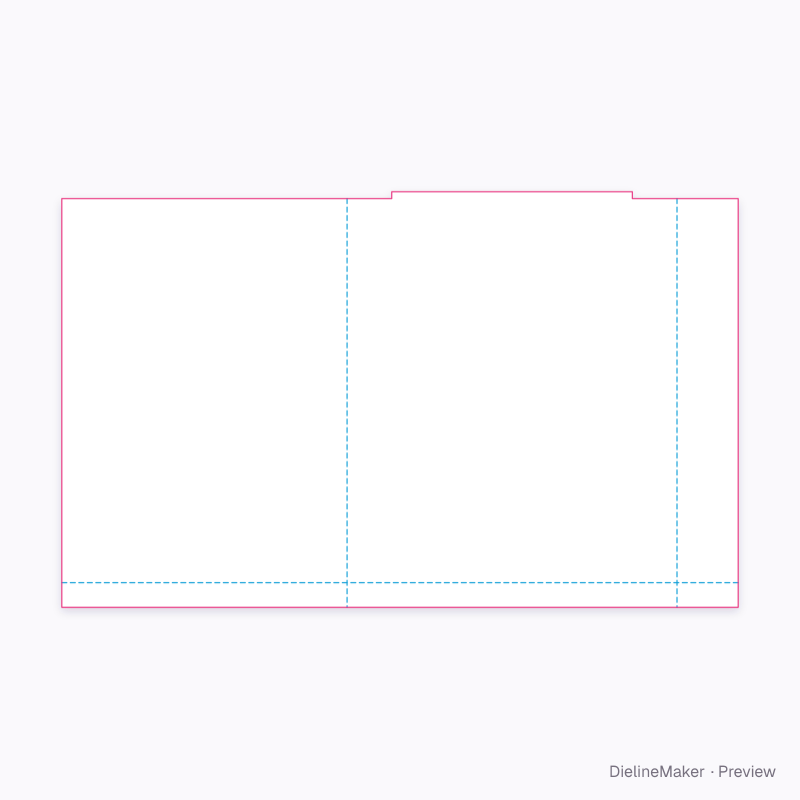

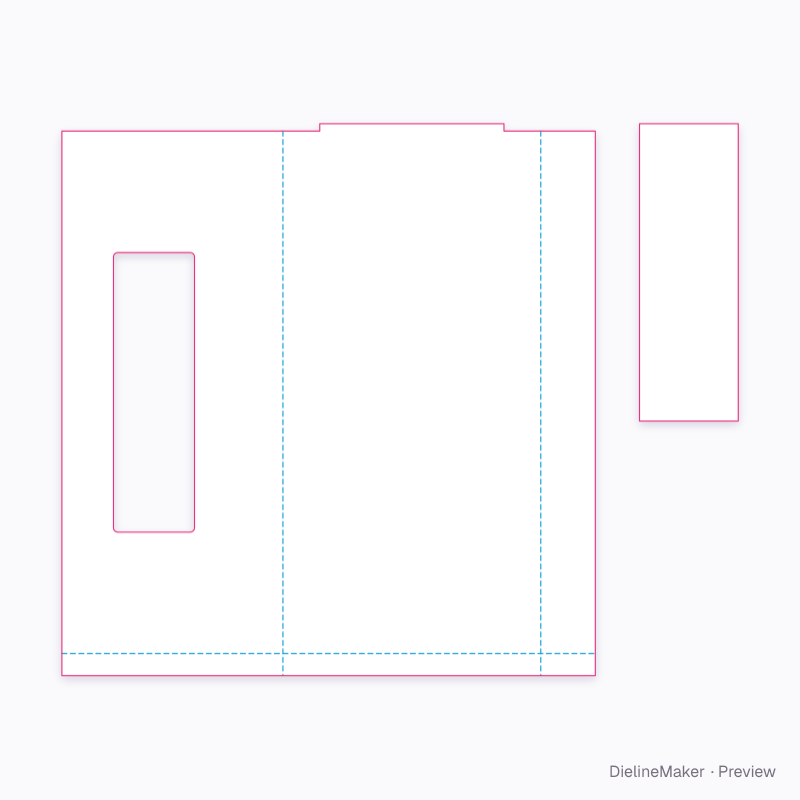

The flat / satchel paper food bag family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset

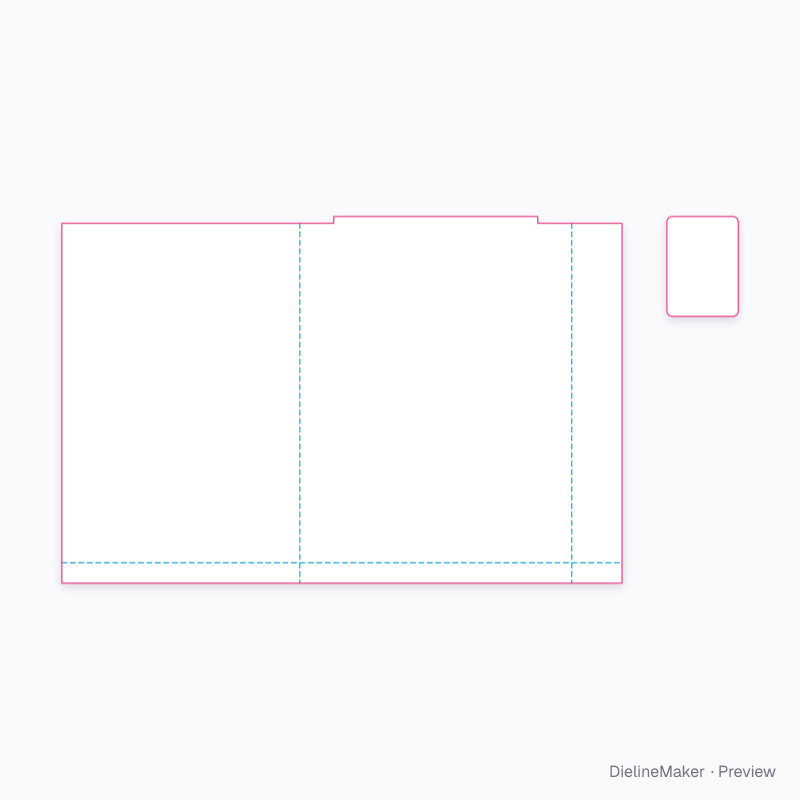

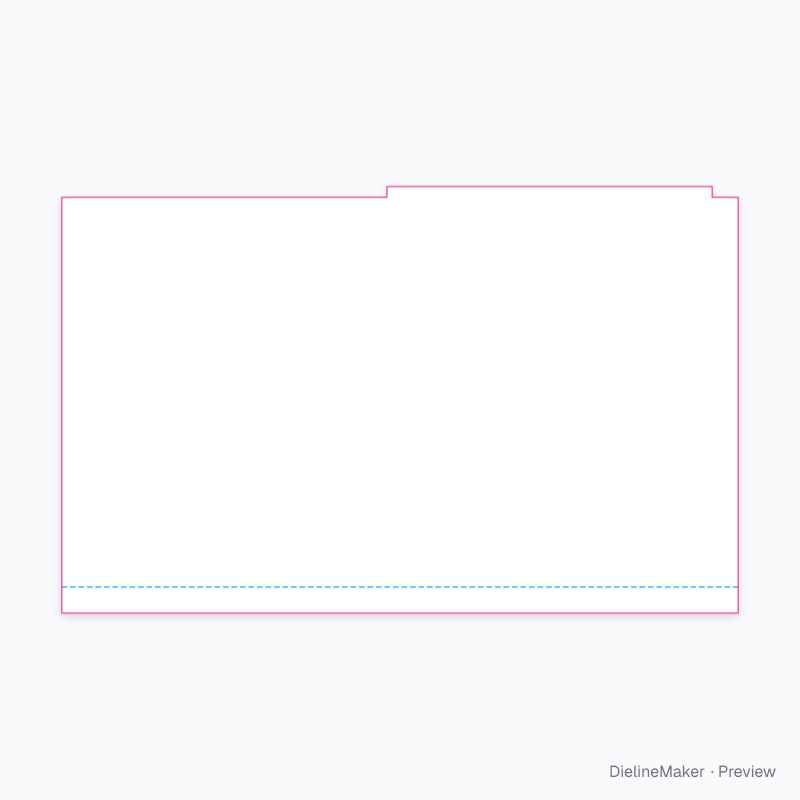

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this flat pastry paper bag yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
