FEFCO 0933Shipping
12-bottle case dividers dieline
A 4 × 3 cell set for a full case of wine. A ready-sized preset of the partition dividers — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside340 × 255 × 300 mm
Outside340 × 255 × 300 mm
Flat blank338 × 300 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0933
- Inside size
- Box inside length 340 · Box inside width 255 · Box inside height 300 mm
- Size range
- Box inside length 60–1000 · Box inside width 40–800 · Box inside height 30–600 mm
- Manufacturing
- 340 × 255 × 300 mm score to score · inside vs outside sizes
- Parts
- 5 parts — Long divider 1, Long divider 2, Cross divider 1, Cross divider 2, Cross divider 3
- Board area
- 0.424 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteE-flute KE-flute WF-fluteKraft 350GD2 350
- Good for

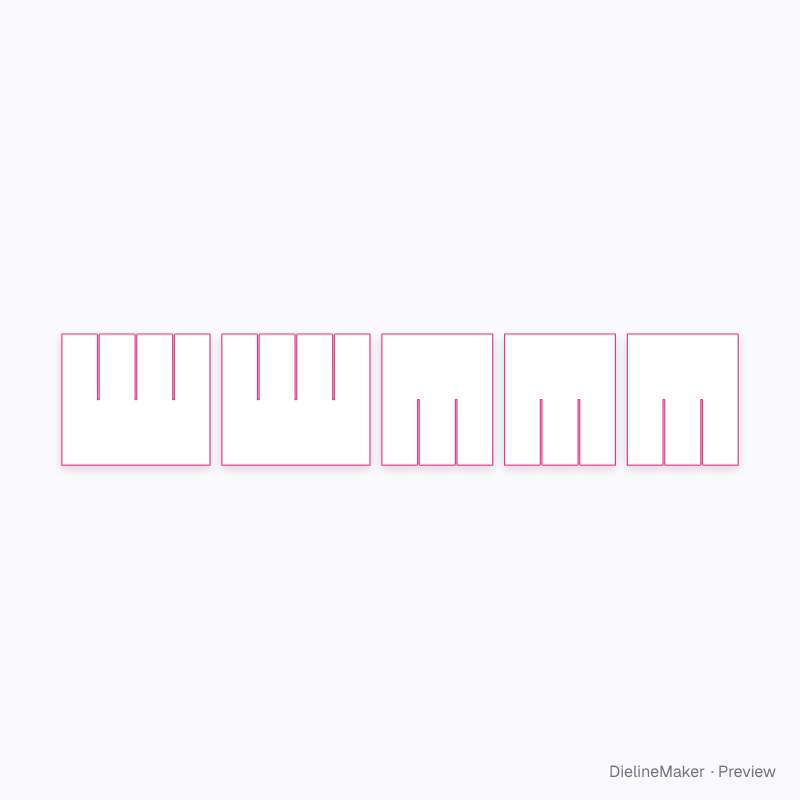

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
