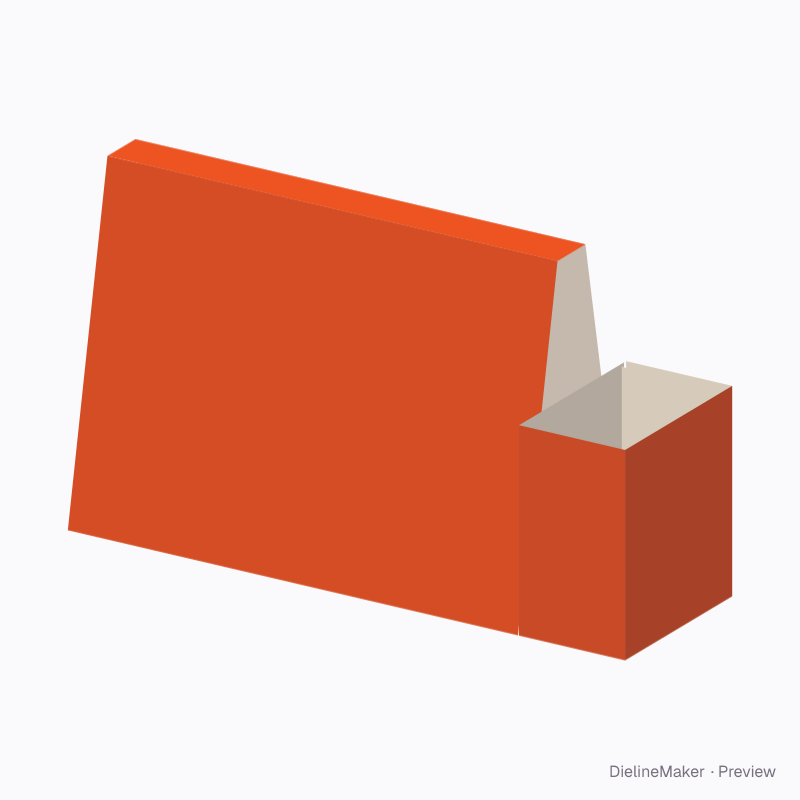

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-PEN-TENT-01Display
Calendar stand with pen pocket dieline
An A-frame desk tent with a flat ridge drilled for pens, and an optional glued pen pocket at one end. A ready-sized preset of the desk tent with pen holder — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside210 × 80 × 150 mm
Outside213.2 × 83.2 × 153.2 mm
Flat blank350 × 476.1 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-PEN-TENT-01
- Inside size
- Width 210 · Footprint depth 80 · Height 150 mm
- Size range
- Width 100–400 · Footprint depth 40–200 · Height 60–300 mm
- Manufacturing
- 211.6 × 81.6 × 151.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.118 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- SBS 350FBB 400Kraft 350E-flute WF-fluteSBS 18 pt
- Good for

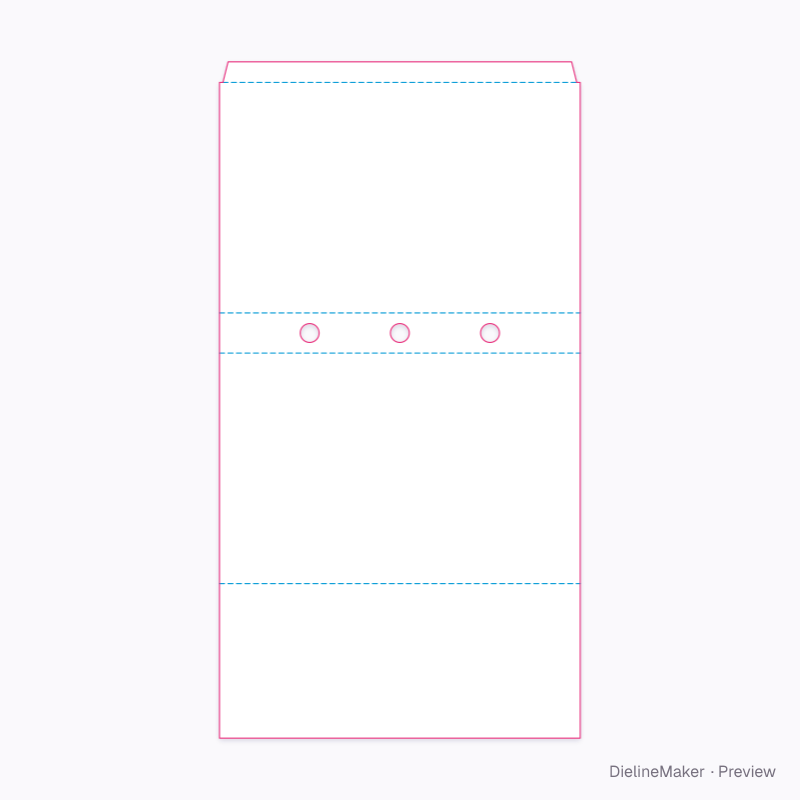

The flat dieline

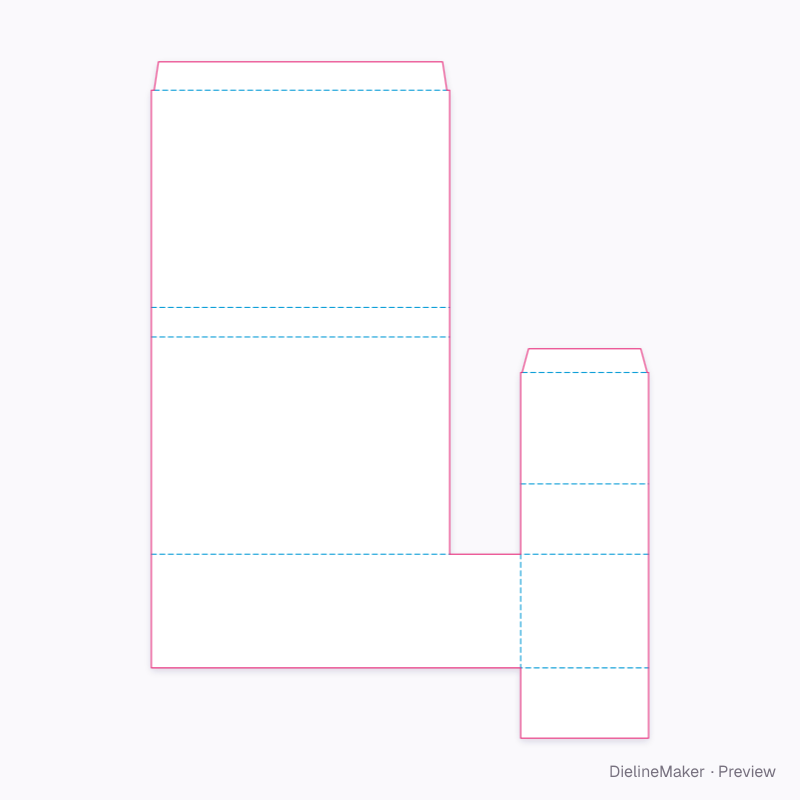

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-PEN-TENT-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 260 × 80 | – × W |
| Front face | 210 × 152.9 | L × – |
| Pocket end | 90 × 80 | – × W |
| Ridge panel | 210 × 20.8 | L × – |
| Pocket front | 90 × 49.5 | – |
| Pocket back | 90 × 49.5 | – |
| Back face | 210 × 152.9 | L × – |
| Pocket inner wall | 90 × 78.4 | – × W − T |
| Glue flap | 206 × 20 | – |
| Glue flap | 88 × 16.7 | – |
