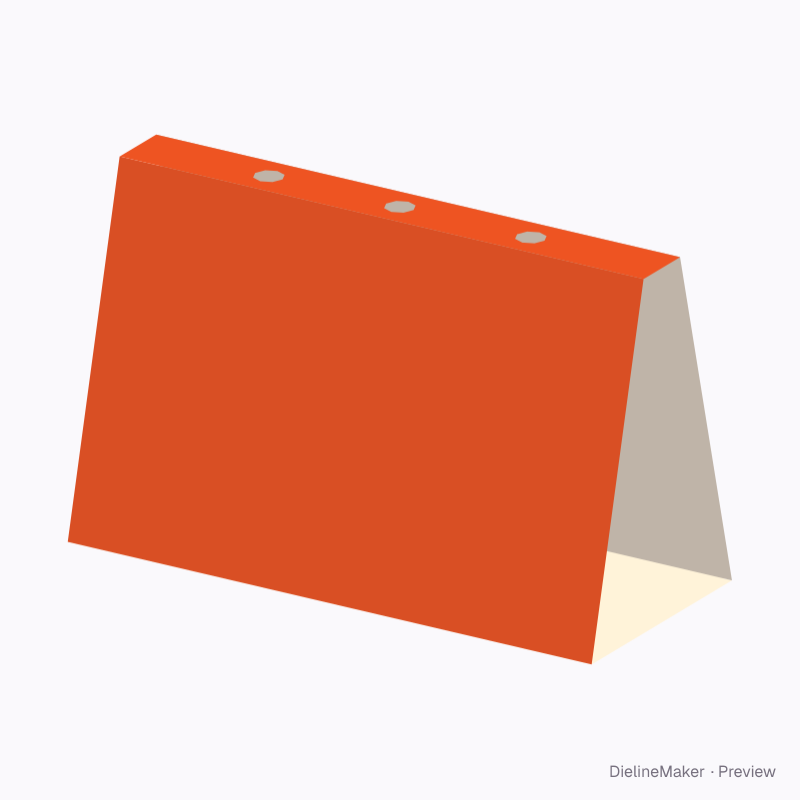

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-PEN-TENT-01Display
Desk tent with pen holes dieline
An A-frame desk tent with a flat ridge drilled for pens, and an optional glued pen pocket at one end. A ready-sized preset of the desk tent with pen holder — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside210 × 90 × 130 mm
Outside211.2 × 91.2 × 131.2 mm
Flat blank210 × 393.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-PEN-TENT-01
- Inside size
- Width 210 · Footprint depth 90 · Height 130 mm
- Size range
- Width 100–400 · Footprint depth 40–200 · Height 60–300 mm
- Manufacturing
- 210.6 × 90.6 × 130.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.083 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Folding boxboard 400 g · 0.6 mm caliper
- Board options
- SBS 350FBB 400Kraft 350E-flute WF-fluteSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-PEN-TENT-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.6 mm for Folding boxboard 400 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 210 × 90 | L × W |
| Front face | 210 × 134.2 | L × – |
| Ridge panel | 210 × 23.4 | L × – |
| Back face | 210 × 134.2 | L × – |
| Glue flap | 206 × 12 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Ridge panel widthmm
- Pen holes in the ridgecount
- Pen hole diametermm
- Side pen pocketon / off
The desk tent with pen holder family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this desk tent with pen holes yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
