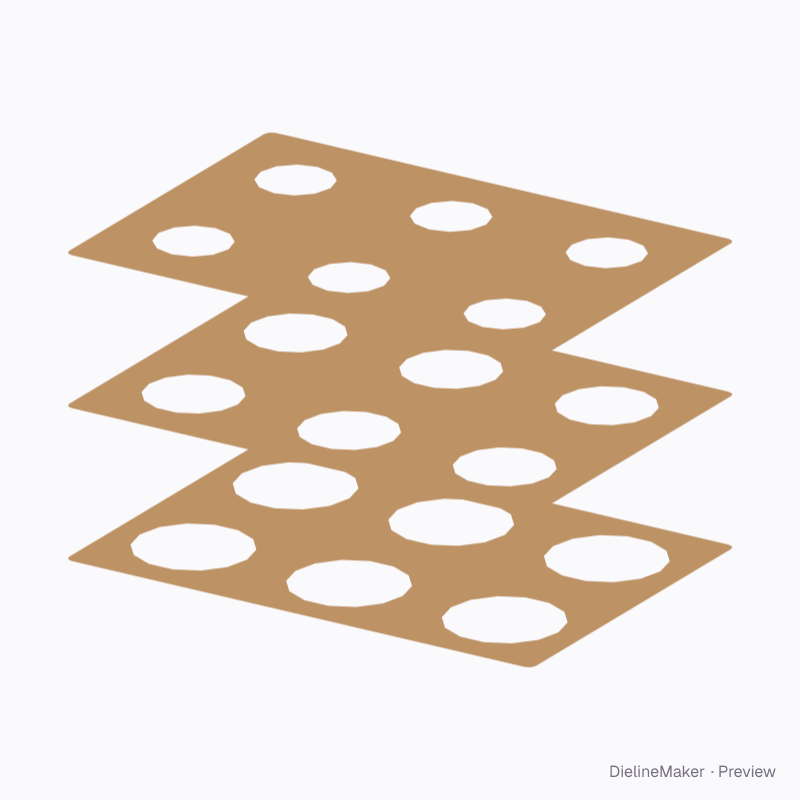

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-PERF-PANEL-SET-01Trays & lids
Graded panels for tapered bottles dieline
One to four flat support panels with grids of round or keyed apertures, optionally graded panel to panel so stacked levels hold tapered products. A ready-sized preset of the perforated support panel set — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside200 × 140 × 60 mm
Outside200 × 140 × 60 mm
Flat blank200 × 140 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-PERF-PANEL-SET-01
- Inside size
- Panel length 200 · Panel width 140 · Level spacing 60 mm
- Size range
- Panel length 30–500 · Panel width 30–400 · Level spacing 5–300 mm
- Manufacturing
- 200 × 140 × 60 mm score to score · inside vs outside sizes
- Parts
- 3 parts — Support panel 1, Support panel 2, Support panel 3
- Board area
- 0.084 m² · about 18 up on a 720 × 1020 mm sheet
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350E-flute WE-flute KF-fluteSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 7 options; the template and 3D preview follow each change.
- Panelscount
- Aperture2 options
- Hole diametermm
- Diameter step per panelmm
- Columnscount
- Rowscount
- Corner radiusmm
