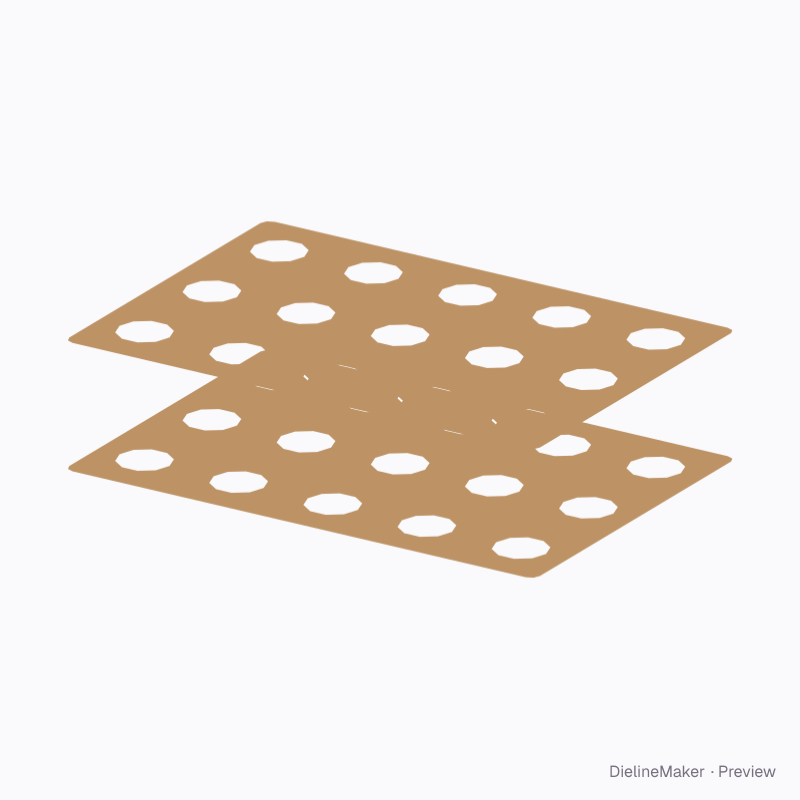

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-PERF-PANEL-SET-01Trays & lids
Two-level vial support panels dieline
One to four flat support panels with grids of round or keyed apertures, optionally graded panel to panel so stacked levels hold tapered products. A ready-sized preset of the perforated support panel set — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside160 × 110 × 40 mm
Outside160 × 110 × 40 mm
Flat blank160 × 110 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-PERF-PANEL-SET-01
- Inside size
- Panel length 160 · Panel width 110 · Level spacing 40 mm
- Size range
- Panel length 30–500 · Panel width 30–400 · Level spacing 5–300 mm
- Manufacturing
- 160 × 110 × 40 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Support panel 1, Support panel 2
- Board area
- 0.035 m² · about 36 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350E-flute WE-flute KF-fluteSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 7 options; the template and 3D preview follow each change.
- Panelscount
- Aperture2 options
- Hole diametermm
- Diameter step per panelmm
- Columnscount
- Rowscount
- Corner radiusmm
The perforated support panel set family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this two-level vial support panels yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
