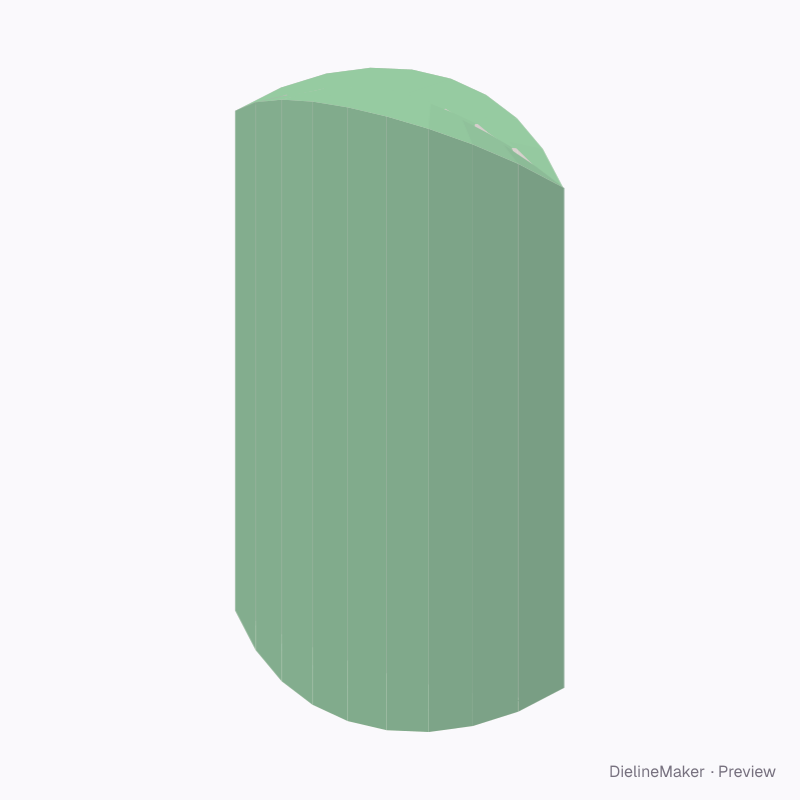

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA F70.01.00.00Shapes
Scarf pillow pack — Pillow box dieline
Editable 240 × 150 × 45 mm starting point using pillow box. Adjust the dimensions to your product before prototyping. A ready-sized preset of the pillow box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside240 × 150 × 45 mm
Outside241 × 150 × 46 mm
Flat blank311.5 × 284.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F70.01.00.00
- Inside size
- Length 240 · Width 150 · Depth 45 mm
- Size range
- Length 50–400 · Width 30–300 · Depth 6–120 mm
- Manufacturing
- 240.5 × 150 × 45.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.080 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400Kraft 350Black 350PET 0.3SBS 18 pt
- Good for

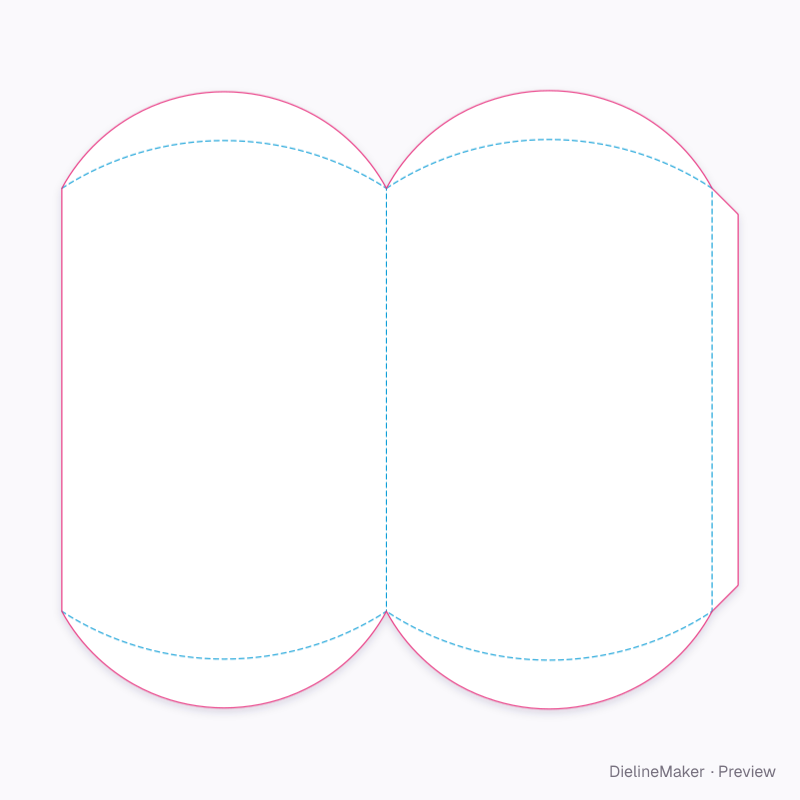

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F70.01.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Back strip 1 | 16.6 × 213.3 | – |
| Back top flap ×2 | 19 × 10.8 | – |
| Back bottom flap ×2 | 19 × 10.8 | – |
| Back strip 2 | 16.6 × 226.2 | – |
| Back top flap ×2 | 17.8 × 16.8 | – |
| Back bottom flap ×2 | 17.8 × 16.8 | – |
| Back strip 3 | 16.6 × 234.5 | – |
| Back top flap ×2 | 17.1 × 20.4 | – |
| Back bottom flap ×2 | 17.1 × 20.4 | – |
| Back strip 4 | 16.6 × 238.5 | – |
| Back top flap ×2 | 16.7 × 22.2 | – |
| Back bottom flap ×2 | 16.7 × 22.2 | – |
| Back strip 5 | 16.6 × 238.5 | (W − T) / 9 × L − H |
| Back top flap | 16.6 × 22.8 | – |
| Back bottom flap | 16.6 × 22.8 | – |
| Back strip 6 | 16.6 × 234.5 | – |
23 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- End flap depthmm
- Hang tabon / off
- Carry handleon / off
- Opening buttonholeon / off
