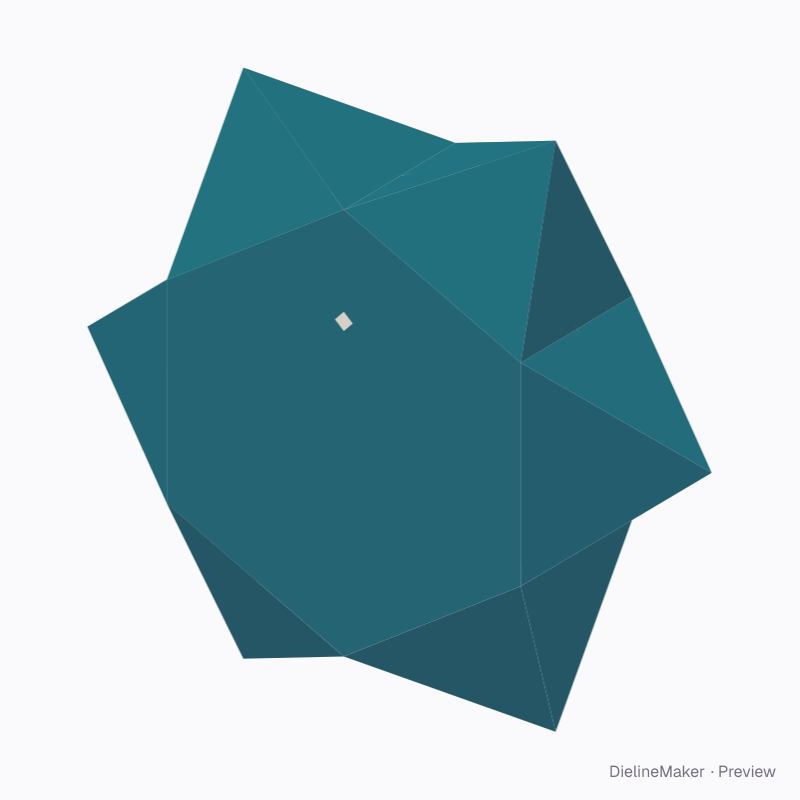

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShapes
6-point pillow star gift dieline
Two polygon sheets form broad front and back faces, raised star points and an inward-folded rim. The diagonal webs and reverse valley scores are real sheet folds; the halves bond around their star-shaped perimeter. A ready-sized preset of the origami pillow star box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 140 × 40 mm
OutsideØ 140 × 40 mm
Flat blank152 × 139.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Outer point diameter 140 · Front-to-back thickness 40 mm
- Size range
- Outer point diameter 40–600 · Front-to-back thickness 5–200 mm
- Manufacturing
- Ø 140 × 40 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Pillow star front and joining tabs, Pillow star back
- Board area
- 0.031 m² · about 30 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300Kraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Star pointscount
- Cord hole diametermm
- Perimeter joining tabsmm
The origami pillow star box family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this 6-point pillow star gift yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
