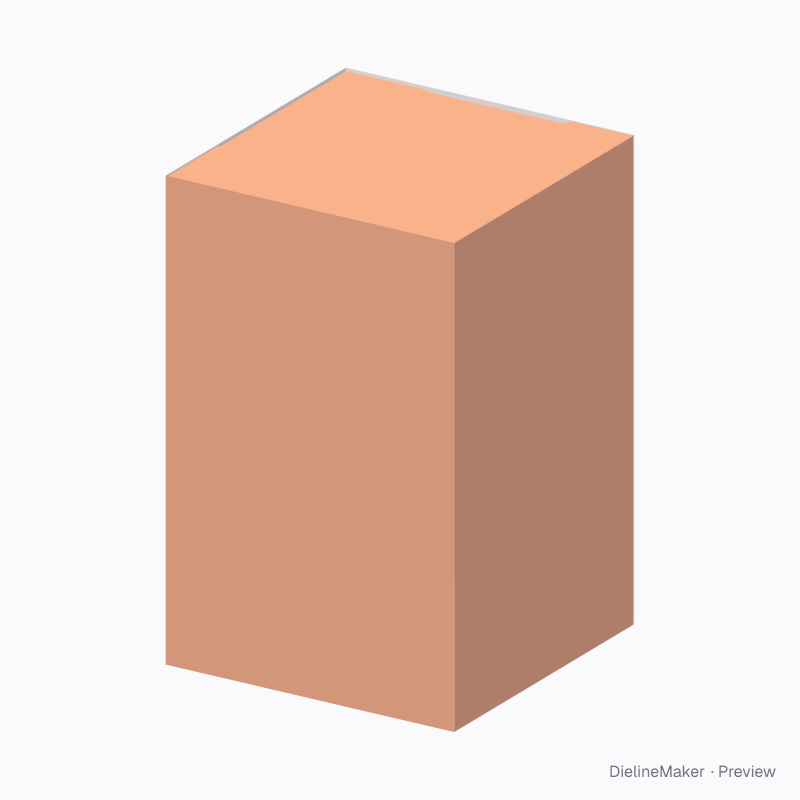

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-PINWHEEL-HOOK-01Tuck end
Square pinwheel hook-roof carton dieline
A carton whose four asymmetric hooked top flaps fold round in turn and lock in a pinwheel. A ready-sized preset of the pinwheel hook-roof carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside90 × 90 × 140 mm
Outside91 × 91 × 141 mm
Flat blank373.5 × 246 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-PINWHEEL-HOOK-01
- Inside size
- Length 90 · Width 90 · Height 140 mm
- Size range
- Length 40–300 · Width 40–300 · Height 40–400 mm
- Manufacturing
- 90.5 × 90.5 × 140.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.079 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350E-flute WSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-PINWHEEL-HOOK-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 90.5 × 140.5 | L + T × H + T |
| Left side | 90.5 × 140.5 | W + T × H + T |
| Back | 90.5 × 140.5 | L + T × H + T |
| Right side | 90 × 140.5 | W × H + T |
| Glue flap | 12 × 140.5 | – × H + T |
| Snap end | 90.5 × 30 | – |
| Snap end | 90 × 30 | – |
| Snap bottom | 90.5 × 58.5 | – |
| Snap tuck | 90.5 × 58 | – |
| Hooked roof flap ×3 | 90.5 × 47 | – |
| Hooked roof flap | 90 × 47 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Bottom2 options
- Hook notch depthmm
The pinwheel hook-roof carton family
The same structure with sizes, boards and options set for a use.
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this square pinwheel hook-roof carton yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
