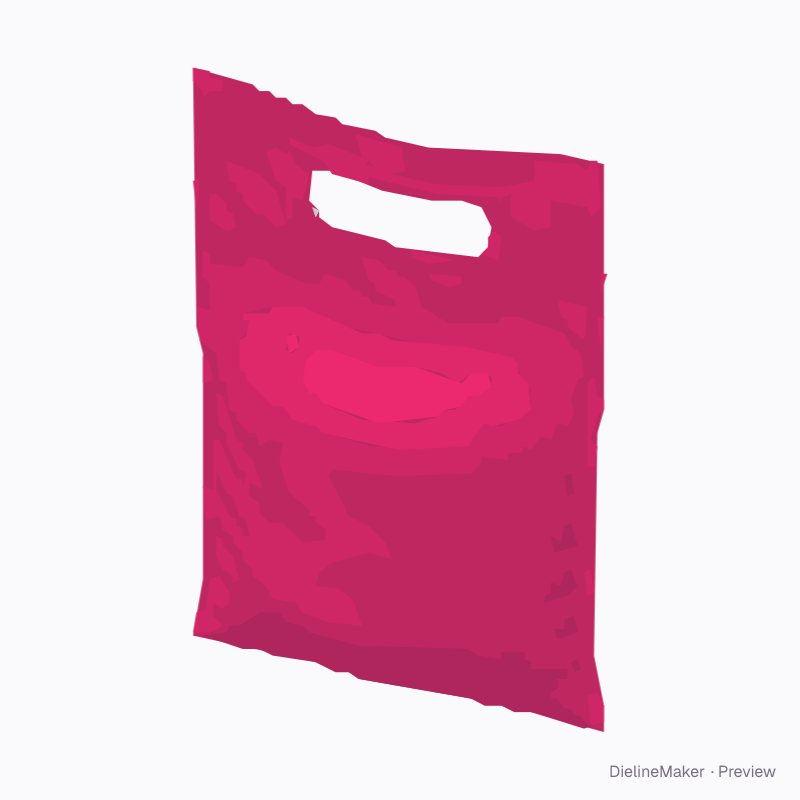

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureBags & pouches
Die-cut handle plastic bag — small dieline
A film carrier with actual rounded handle slots, a reinforced top option and an optional bottom gusset. The continuous web contains front, bottom and back cuts with seal and fold guides. Film caliper, sealing conditions and carrying strength must match the converter’s specification. A ready-sized preset of the die-cut handle plastic bag — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside200 × 260 mm
Outside200 × 260 mm
Flat blank200 × 520 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Face width 200 · Bag body height 260 mm
- Size range
- Face width 140–650 · Bag body height 150–800 mm
- Manufacturing
- 200 × 260 mm score to score · inside vs outside sizes
- Parts
- 3 parts — Continuous bag film, front punched handle patch, back punched handle patch
- Board area
- 0.113 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- White LDPE carrier film · 0.06 mm caliper
- Board options
- White LDPEClear LDPEHDPE
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.06 mm for White LDPE carrier film). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| FrontContinuous bag film | 200 × 260 | L × H |
| BackContinuous bag film | 200 × 260 | L × H |
| Handle reinforcementfront punched handle patch | 110 × 41 | – |
| Handle reinforcementback punched handle patch | 110 × 41 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 7 options; the template and 3D preview follow each change.
- Bottom gusset half-web (G)mm
- Seal widthmm
- Preview fill%
- Handle slot widthmm
- Handle slot heightmm
- Handle centre from topmm
- Handle reinforcement patchon / off
