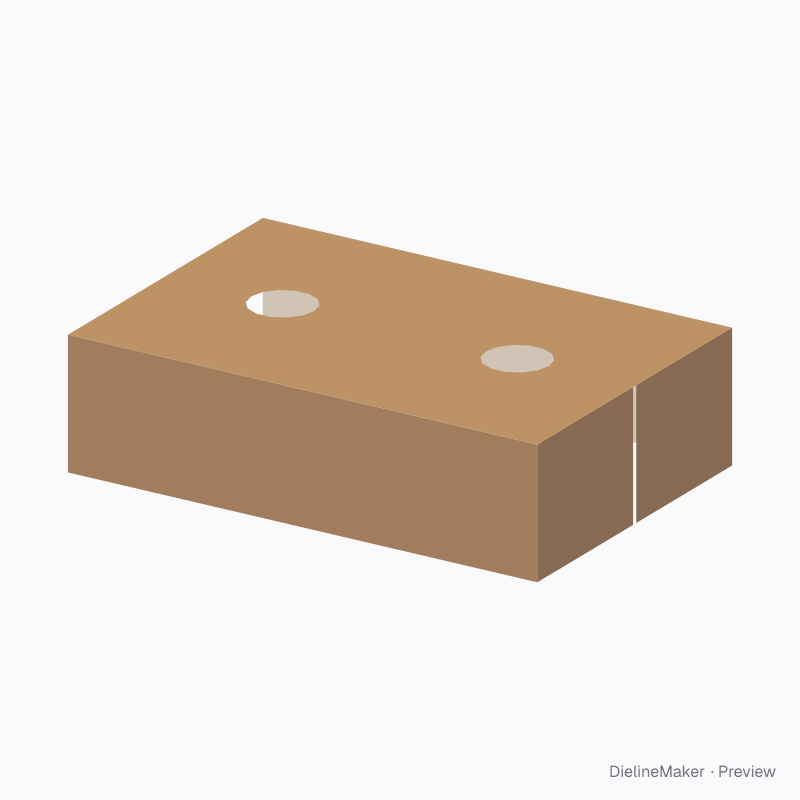

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0953Trays & lids
Platform with split end 300×200×80 dieline
Two side legs with end ears forming a split third support. A ready-sized preset of the platform insert with legs — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 200 × 80 mm
Outside300 × 200 × 80 mm
Flat blank395.4 × 358 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0953
- Inside size
- Case inside length 300 · Case inside width 200 · Platform height 80 mm
- Size range
- Case inside length 60–800 · Case inside width 50–600 · Platform height 20–400 mm
- Manufacturing
- 300 × 200 × 80 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.122 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- B-fluteE-flute KE-flute WF-flute
- Good for

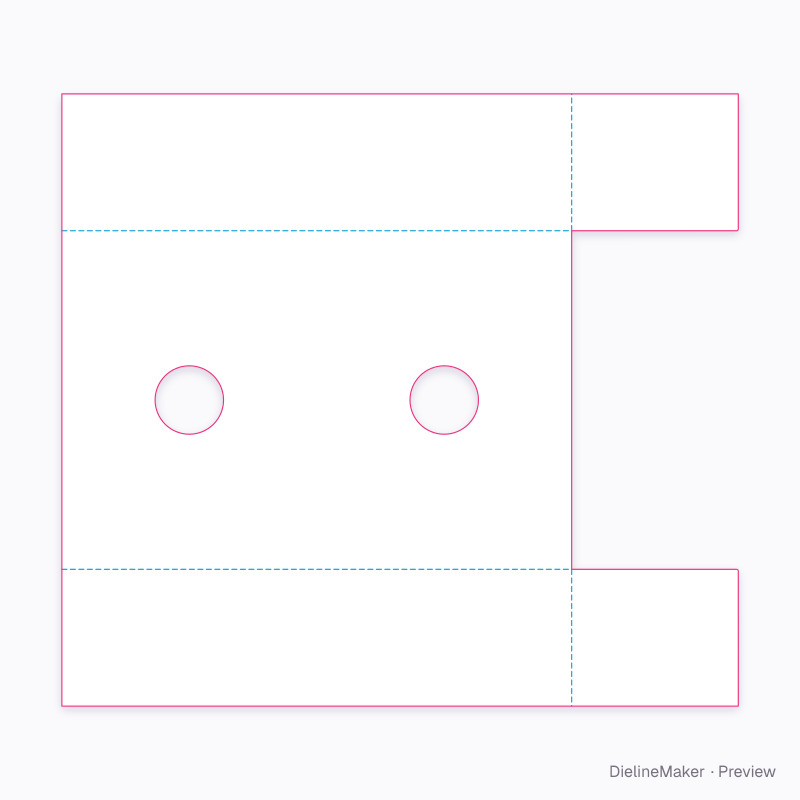

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0953 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Platform | 298 × 198 | – |
| Back leg | 298 × 80 | – × H |
| Front leg | 298 × 80 | – × H |
| Split end wall ×2 | 97.4 × 80 | – × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Support6 options
- Product holeson / off
- Hole diametermm
- Holes along lengthcount
- Holes across widthcount
- Front apronmm
The platform insert with legs family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset

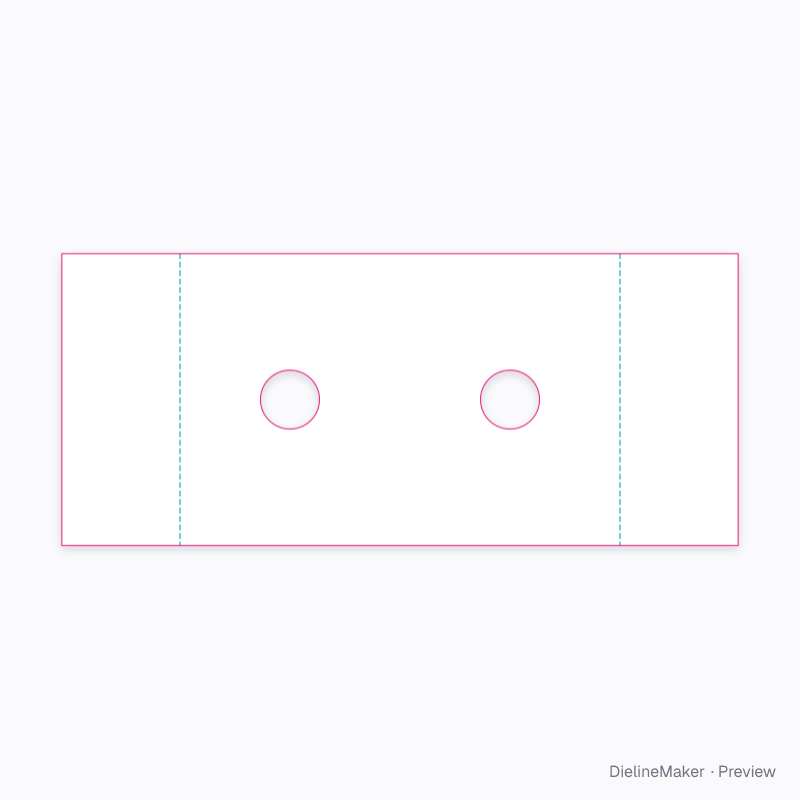

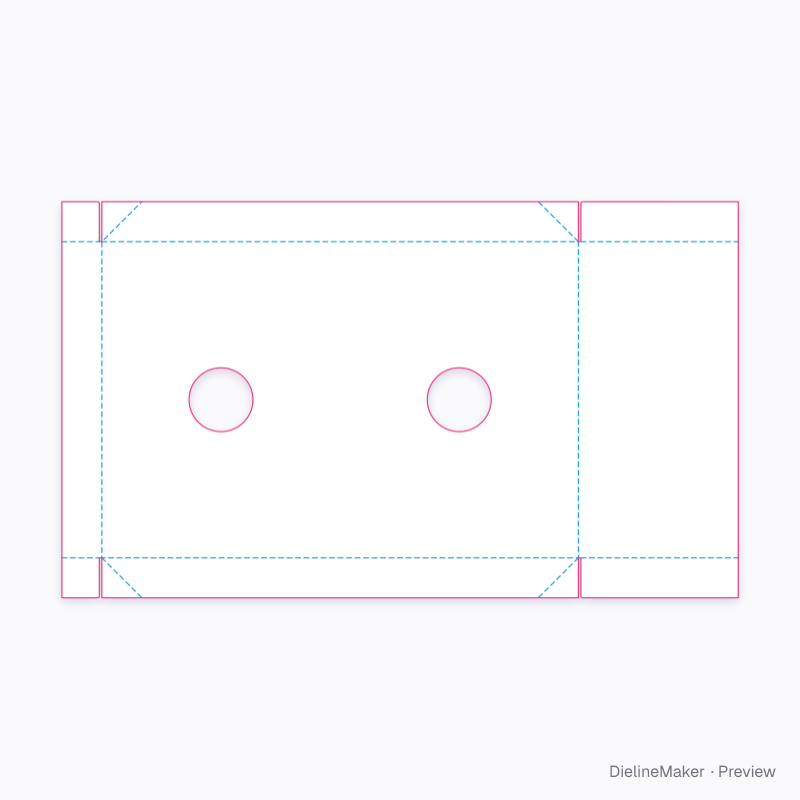

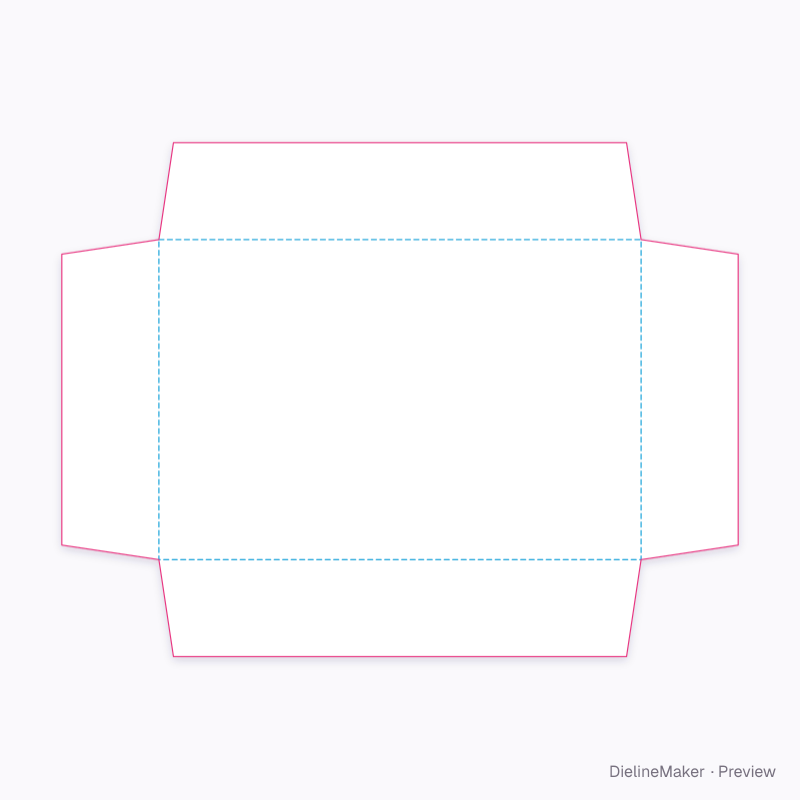

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this platform with split end 300×200×80 yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
