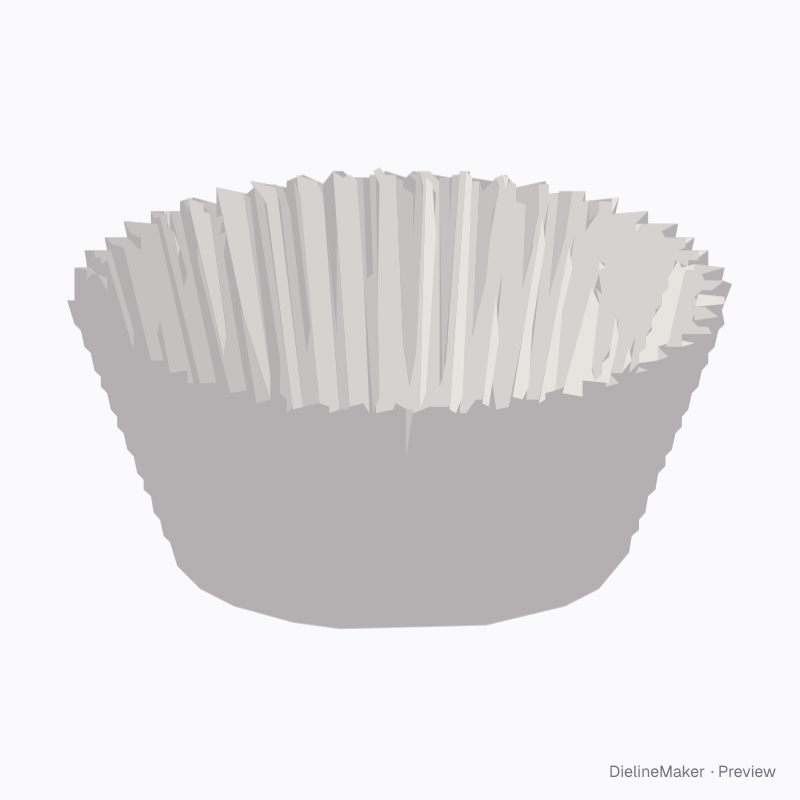

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-PLEATLINER-01Labels
Standard cupcake liner 50 mm dieline
A pleated paper baking cup (round) or a rounded tray with corner fan pleats. Print the flat blank; it maps onto the floor and pleated wall. A ready-sized preset of the pleated baking liner — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside50 × 50 × 30 mm
Outside50 × 50 × 30 mm
Flat blank113.1 × 113.1 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-PLEATLINER-01
- Inside size
- Floor length / diameter 50 · Floor width 50 · Wall height 30 mm
- Size range
- Floor length / diameter 25–250 · Floor width 25–250 · Wall height 10–80 mm
- Manufacturing
- 50 × 50 × 30 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.010 m² · about 48 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Plan2 options
- Wall flare°
- Pleatscount
- Rolled rimon / off
- Paper4 options
The pleated baking liner family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this standard cupcake liner 50 mm yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
