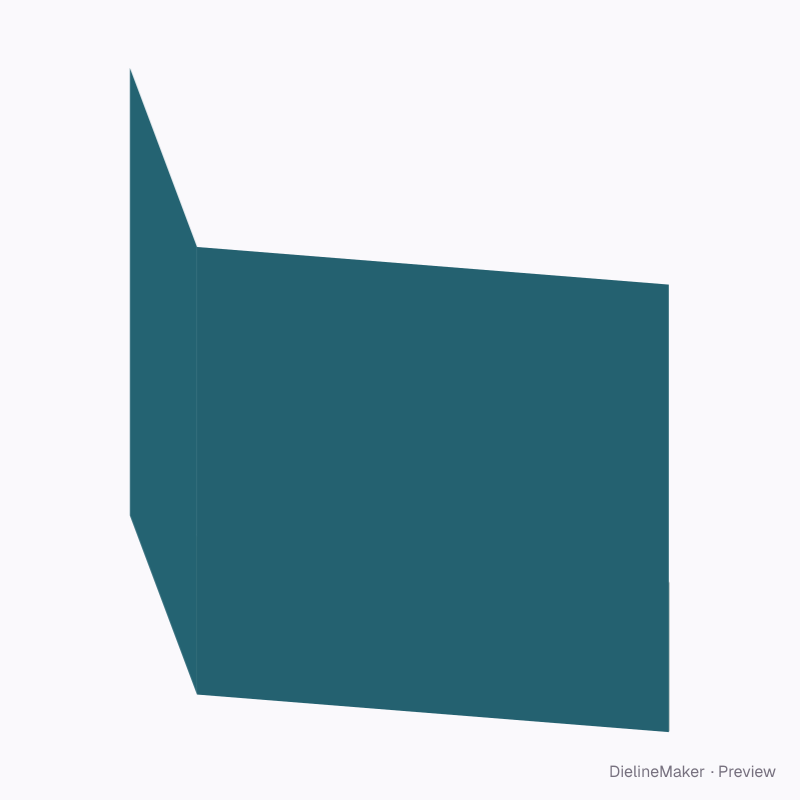

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
225 mm square presentation folder dieline
225 × 225 mm finished format with editable dimensions and artwork. A ready-sized preset of the presentation folder — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside225 × 225 mm
Outside225 × 225 mm
Flat blank474 × 300 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 225 · Height 225 mm
- Size range
- Width 120–400 · Height 150–450 mm
- Manufacturing
- 225 × 225 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.136 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400SBS 300Kraft 350Black 350GD2 350SBS 18 pt
- Good for

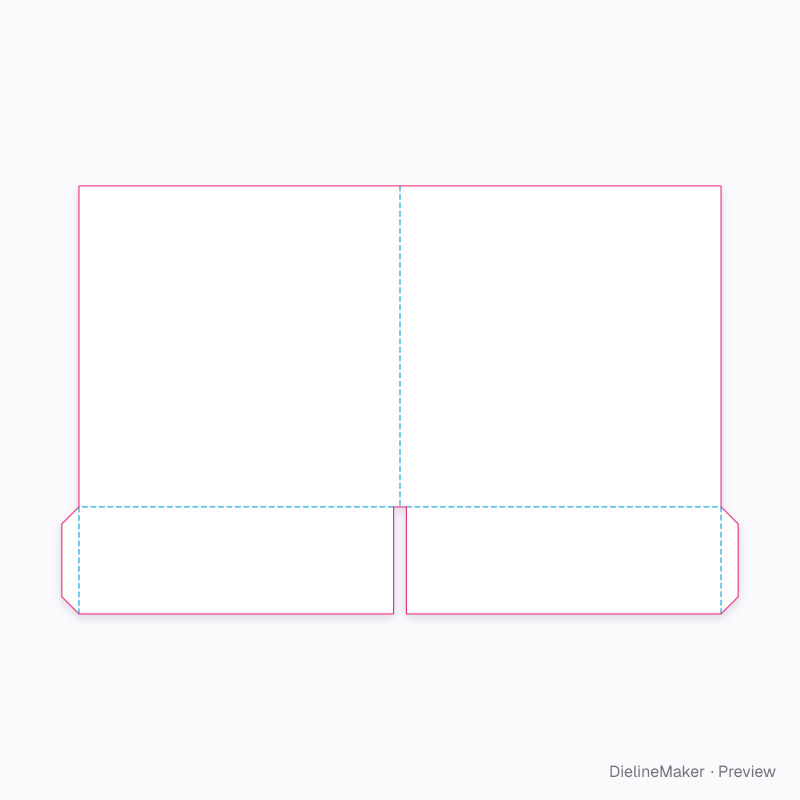

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front cover | 225 × 225 | W × H |
| Back cover | 225 × 225 | W × H |
| Right pocket | 220.5 × 75 | – |
| Glue tab ×2 | 12 × 75 | – |
| Left pocket | 220.5 × 75 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 9 options; the template and 3D preview follow each change.
- Pockets4 options
- Pocket depthmm
- Pocket capacity gussetmm
- Pocket shape3 options
- Capacity spinemm
- Business card slitson / off
- Cover lock4 options
- Hanging tab3 options
- Lock flap depthmm
The presentation folder family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset

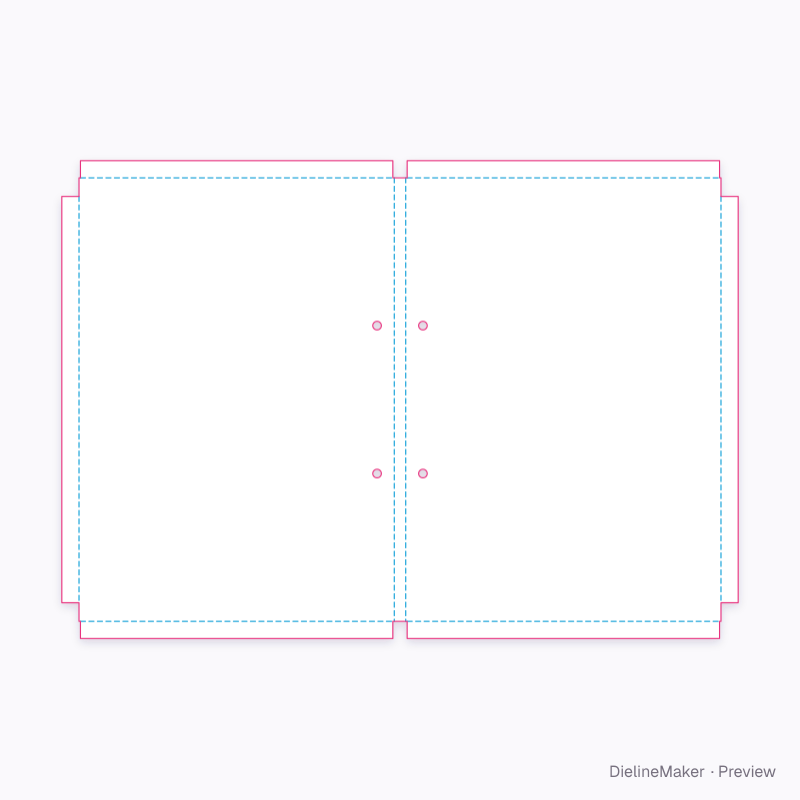

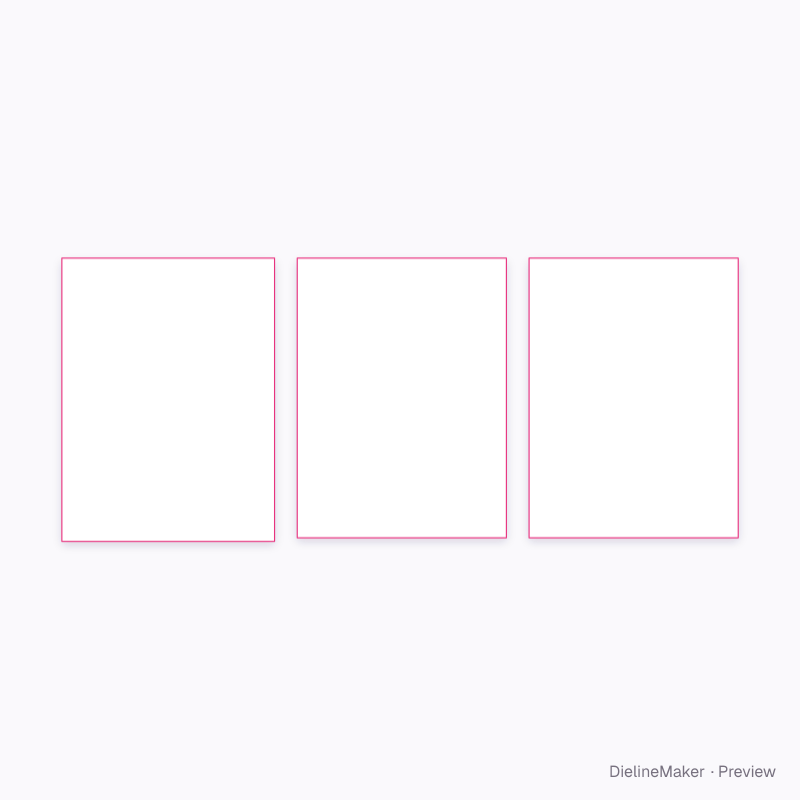

Similar structures
