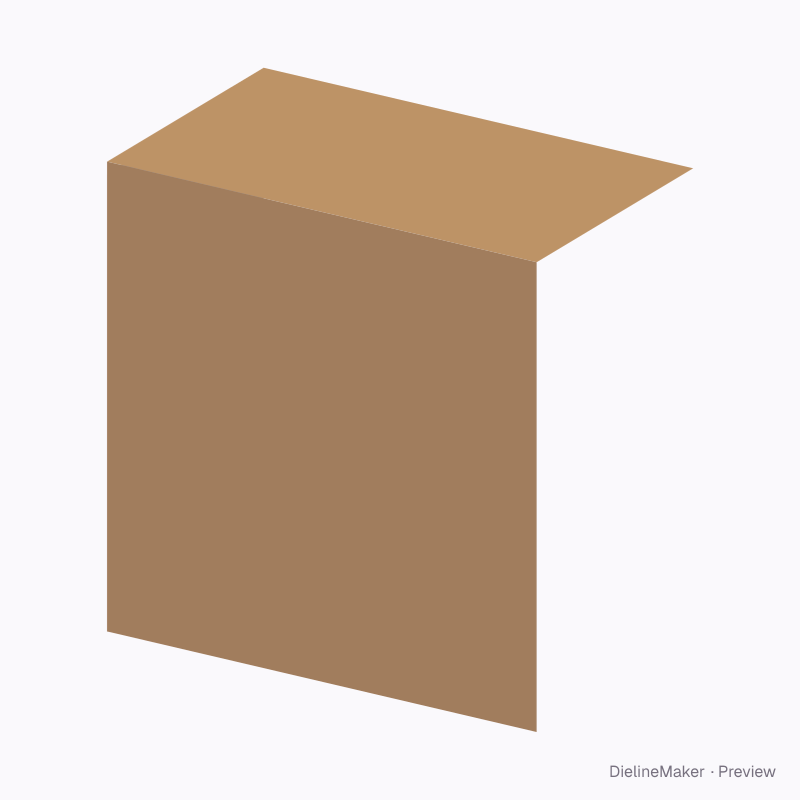

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShipping
Furniture corner cap dieline
120 × 120 mm face with 70 mm wings on B-flute. A ready-sized preset of the three-face corner protector — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside120 × 70 × 120 mm
Outside120 × 70 × 120 mm
Flat blank190 × 190 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Front width 120 · Wing depth 70 · Front height 120 mm
- Size range
- Front width 40–350 · Wing depth 20–250 · Front height 40–350 mm
- Manufacturing
- 120 × 70 × 120 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.031 m² · about 15 up on a 720 × 1020 mm sheet
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- E-flute KB-fluteE-flute WF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Double crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front face | 120 × 120 | – |
| Top wing | 120 × 70 | – × W |
| Side wing | 70 × 116.8 | W × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Corner construction3 options
The three-face corner protector family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this furniture corner cap yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
