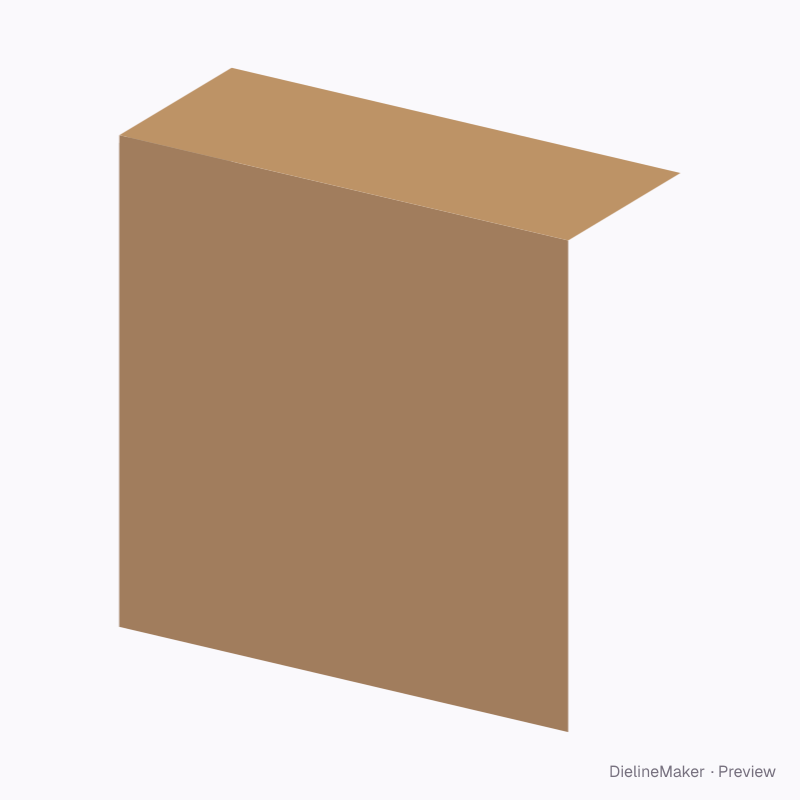

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShipping
Display-screen corner cap dieline
100 × 100 mm face with a shallow 40 mm return. A ready-sized preset of the three-face corner protector — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside100 × 40 × 100 mm
Outside100 × 40 × 100 mm
Flat blank140 × 140 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Front width 100 · Wing depth 40 · Front height 100 mm
- Size range
- Front width 40–350 · Wing depth 20–250 · Front height 40–350 mm
- Manufacturing
- 100 × 40 × 100 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.018 m² · about 24 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KB-fluteE-flute WF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Double crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front face | 100 × 100 | – |
| Top wing | 100 × 40 | – × W |
| Side wing | 40 × 98.4 | W × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Corner construction3 options
The three-face corner protector family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this display-screen corner cap yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
