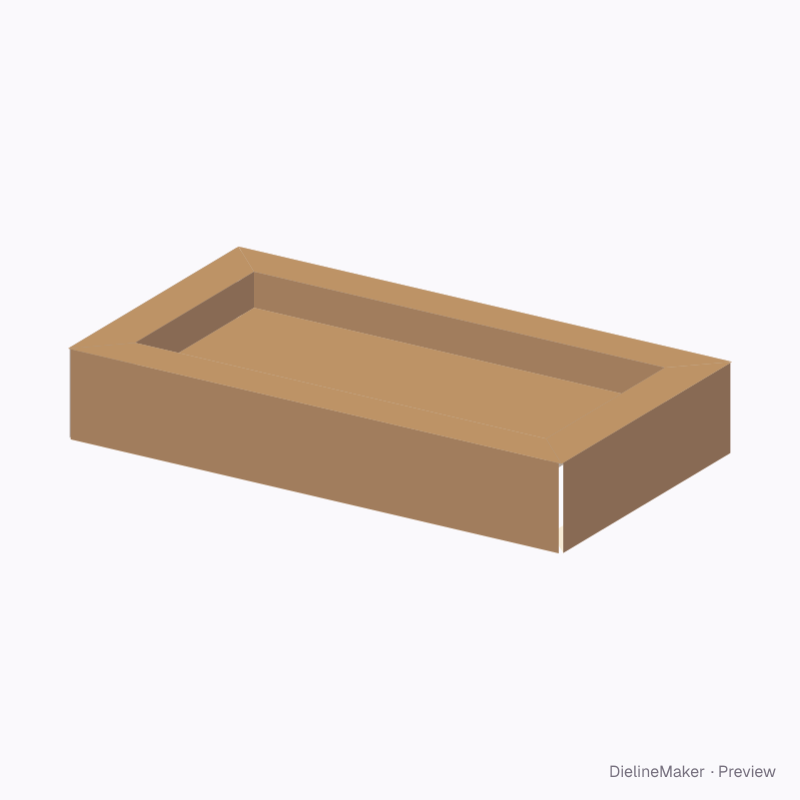

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-RECESSED-BED-INSERT-01Trays & lids
Phone or device recess insert dieline
A box insert whose sunken product bed hangs from a flat deck frame standing on folded legs and feet. A ready-sized preset of the recessed bed insert on folded legs — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside180 × 100 × 30 mm
Outside181 × 101 × 31 mm
Flat blank207 × 287 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-RECESSED-BED-INSERT-01
- Inside size
- Box inside length 180 · Box inside width 100 · Deck height 30 mm
- Size range
- Box inside length 60–500 · Box inside width 50–400 · Deck height 15–200 mm
- Manufacturing
- 180.5 × 100.5 × 30.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.045 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- Black-core board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350E-flute WBlack 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-RECESSED-BED-INSERT-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for Black-core board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Product bed | 69 × 149 | – |
| Recess wall ×2 | 69 × 12 | – |
| Recess wall ×2 | 12 × 149 | – |
| Deck frame ×2 | 69 × 15 | – |
| Deck frame ×2 | 15 × 149 | – |
| Leg ×2 | 97 × 30 | – × H |
| Leg ×2 | 30 × 177 | H × – |
| Foot ×2 | 97 × 12 | – |
| Foot ×2 | 12 × 177 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Recess depthmm
- Deck frame widthmm
The recessed bed insert on folded legs family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this phone or device recess insert yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
