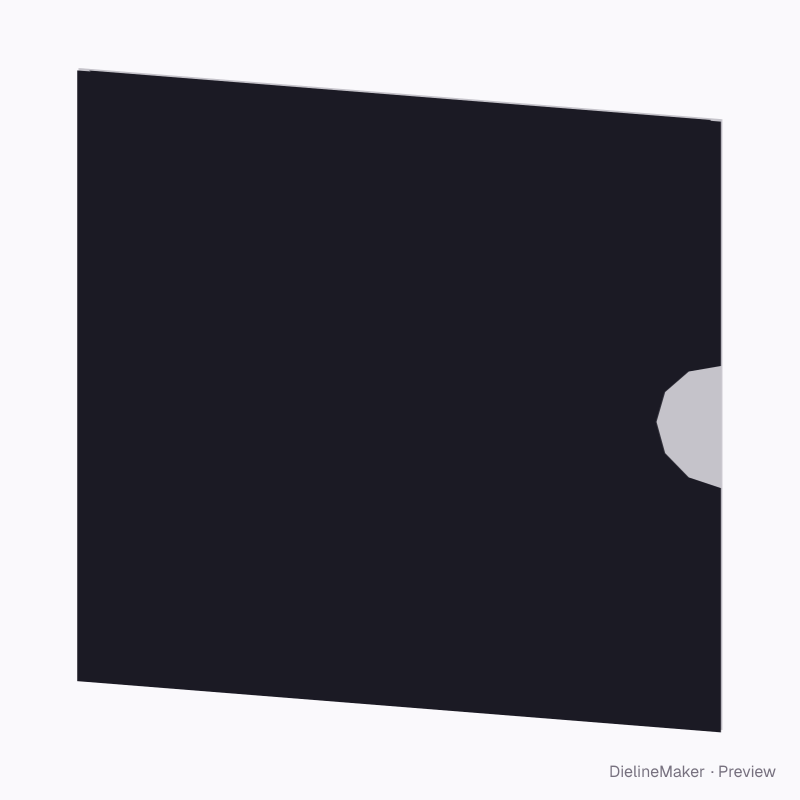

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureSleeves
Cardboard CD sleeve dieline
Board sleeve for one CD, about 125 mm square, with a thumb cut. A ready-sized preset of the record jacket — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside124.5 × 124.5 mm
Outside124.9 × 125.3 mm
Flat blank249.4 × 148.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 124.5 · Height 124.5 mm
- Size range
- Width 80–340 · Height 80–340 mm
- Manufacturing
- 124.7 × 124.9 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.034 m² · about 12 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 300 g · 0.42 mm caliper
- Board options
- SBS 350SBS 300FBB 400Kraft 350Black 350GD2 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.42 mm for SBS white board 300 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front cover | 124.7 × 124.9 | L + T/2 × H + T |
| Back cover | 124.7 × 124.9 | L + T/2 × H + T |
| Top glue flap | 120.4 × 12 | – |
| Bottom glue flap | 120.4 × 12 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Layout2 options
- Glue flapsmm
- Thumb cuton / off
- Thumb cut radiusmm
- Centre holeon / off
