ECMA A20.20.03.01Tuck end
Window box dieline
A die-cut window with a film patch shows the product. A ready-sized preset of the reverse tuck end — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside80 × 50 × 160 mm
Outside81 × 51 × 161 mm
Flat blank273.5 × 289.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA A20.20.03.01
- Inside size
- Length 80 · Width 50 · Height 160 mm
- Size range
- Length 20–400 · Width 12–300 · Height 20–500 mm
- Manufacturing
- 80.5 × 50.5 × 160.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.059 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350Black 350F-fluteE-flute WPET 0.3SBS 18 pt
- Good for

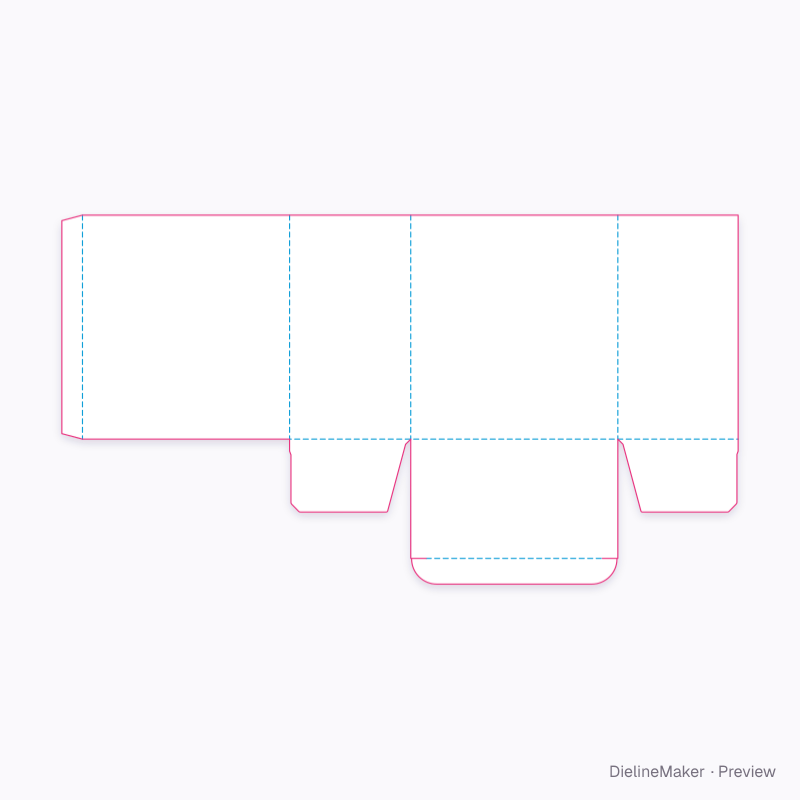

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA A20.20.03.01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 80.5 × 160.5 | L + T × H + T |
| Left side | 50.5 × 160.5 | W + T × H + T |
| Back | 80.5 × 160.5 | L + T × H + T |
| Right side | 50 × 160.5 | W × H + T |
| Glue flap | 12 × 160.5 | – × H + T |
| Top closure | 80.5 × 49.5 | L + T × W − T |
| Top tuck | 79.5 × 15 | L − T × – |
| Top dust flap | 50.5 × 32.5 | W + T × – |
| Top dust flap | 50 × 32.5 | W × – |
| Bottom closure | 80.5 × 49.5 | L + T × W − T |
| Bottom tuck | 79.5 × 15 | L − T × – |
| Bottom dust flap | 50.5 × 32.5 | W + T × – |
| Bottom dust flap | 50 × 32.5 | W × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 12 options; the template and 3D preview follow each change.
- Tuck depthmm
- Slit lockon / off
- Thumb notchon / off
- Notch radiusmm
- Windowon / off
- Window widthmm
- Window heightmm
- Window cornersmm
- Window shape5 options
- Zigzag flap edges4 options
- Safety clasp3 options
- Clasp widthmm
