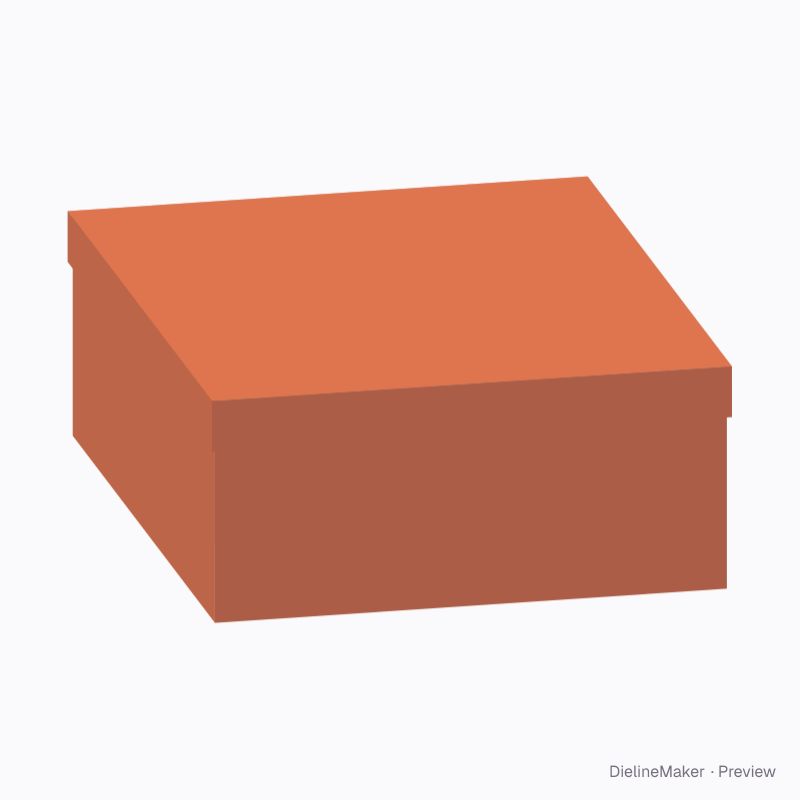

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShapes
Shaped bath gift box — Rhombus tray & lid dieline
Editable 210 × 190 × 65 mm starting point using rhombus tray & lid. Adjust the dimensions to your product before prototyping. A ready-sized preset of the rhombus tray & lid — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside210 × 190 × 65 mm
Outside211 × 191 × 66 mm
Flat blank308.1 × 295.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 210 · Length 190 · Height 65 mm
- Size range
- Width 80–350 · Length 80–350 · Height 20–100 mm
- Manufacturing
- 210.5 × 190.5 × 65.5 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Rhombus tray & lid lid, Rhombus tray & lid base tray
- Board area
- 0.088 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Rhombus tray & lid lidRhombus tray & lid lid | 100 × 108.6 | – |
| Rhombus tray & lid wall ×4Rhombus tray & lid lid | 144.3 × 15 | – |
| Corner glue tab ×4Rhombus tray & lid lid | 4.5 × 9.2 | – |
| Pose rigRhombus tray & lid lid | 100 × 35 | – |
| Rhombus tray & lid floorRhombus tray & lid base tray | 210.7 × 190.7 | – |
| Rhombus tray & lid wall ×4Rhombus tray & lid base tray | 142.1 × 65.5 | – × H + T |
| Corner glue tab ×4Rhombus tray & lid base tray | 10 × 42.1 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Lid depthmm
The rhombus tray & lid family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this shaped bath gift box — rhombus tray & lid yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
