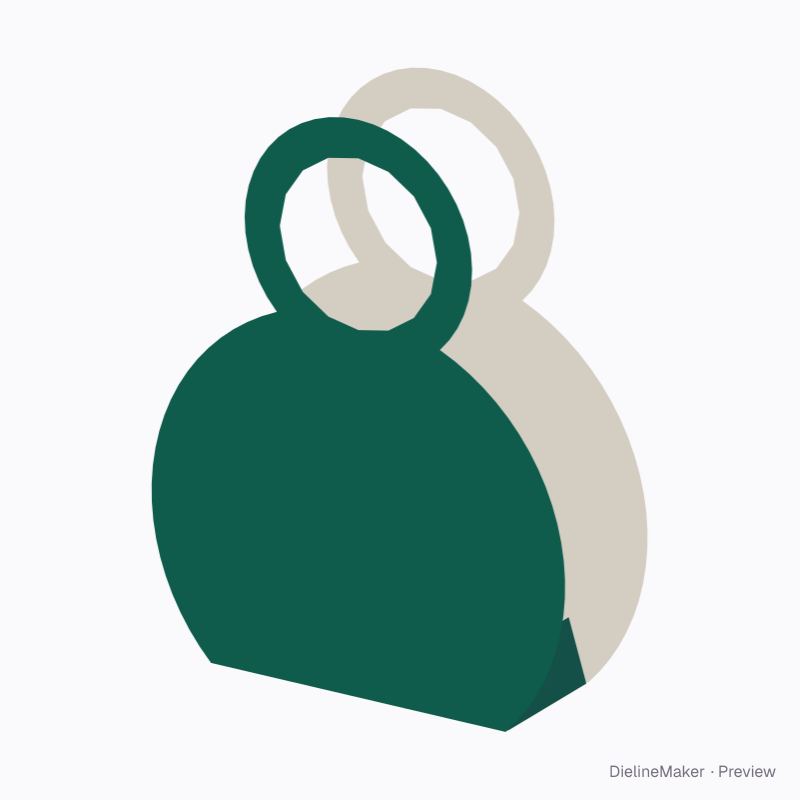

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-RING-HANDLE-CARRIER-01Carriers
Round favour carrier dieline
Two round faces on a connected base strip, each topped by a ring handle; side lock tabs on the base ends. One blank, no glue. A ready-sized preset of the one-piece round carrier with ring handles — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside100 × 45 × 120 mm
Outside101 × 46 × 121 mm
Flat blank148.5 × 405.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-RING-HANDLE-CARRIER-01
- Inside size
- Base width 100 · Depth 45 · Body height 120 mm
- Size range
- Base width 40–400 · Depth 15–200 · Body height 30–500 mm
- Manufacturing
- 100.5 × 45.5 × 120.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.043 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350GD2 350SBS 18 pt
- Good for

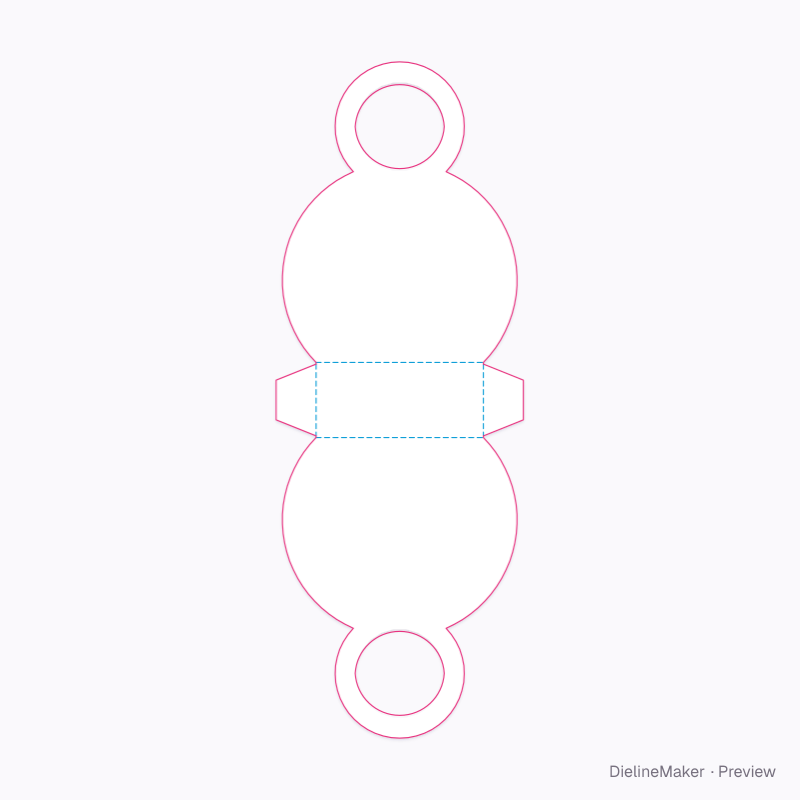

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-RING-HANDLE-CARRIER-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 100.5 × 45 | L + T × W |
| Front face | 100.5 × 180.1 | L + T × – |
| Back face | 100.5 × 180.1 | L + T × – |
| Side lock tab ×2 | 24 × 43 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Ring handle diametermm
- Ring bandmm
- Side lock tab heightmm
The one-piece round carrier with ring handles family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this round favour carrier yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
