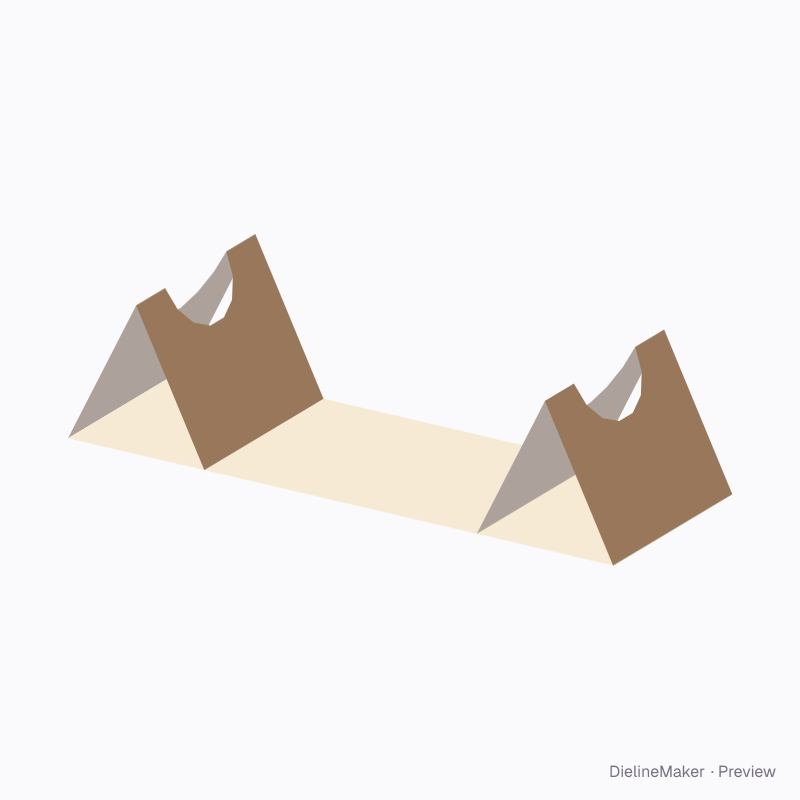

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-SADDLE-ENDWALL-INSERT-01Trays & lids
Tube saddle insert dieline
Two A-frame saddles fixing a tube at both ends. A ready-sized preset of the cradle end-wall insert — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside200 × 70 × 50 mm
Outside203.2 × 70 × 51.6 mm
Flat blank453.6 × 70 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-SADDLE-ENDWALL-INSERT-01
- Inside size
- Length 200 · Width 70 · Height 50 mm
- Size range
- Length 60–600 · Width 30–300 · Height 20–250 mm
- Manufacturing
- 200 × 70 × 50 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.032 m² · about 18 up on a 720 × 1020 mm sheet
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WE-flute KSBS 350Kraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-SADDLE-ENDWALL-INSERT-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 200 × 70 | L × W |
| Saddle outer leg ×2 | 55.9 × 70 | – × W |
| Saddle inner leg ×2 | 55.9 × 70 | – × W |
| Saddle glue foot ×2 | 15 × 66 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Supports2 options
- Cradle diametermm
- Saddle half-spanmm
- Saddle fixing2 options
The cradle end-wall insert family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this tube saddle insert yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
