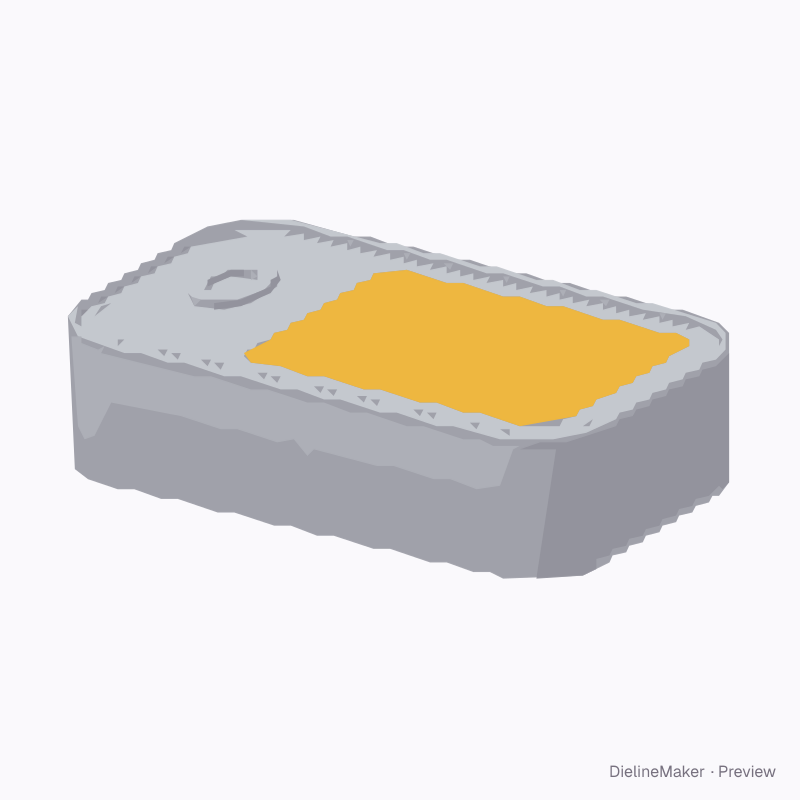

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementLabels
Mackerel tin 200 g label template
A shallow rounded rectangular food tin with a double-seamed rim, scored lid and an open ring-pull. The export is a lid label kept clear of the pull tab; metal forming and score tooling are supplier specifications. A ready-sized preset of the pull-tab sardine tin — adjust the object dimensions and decoration area to preview your artwork at size.
Object size140 × 85 × 35 mm
Artwork area84 × 65 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Tin length 140 · Tin width 85 · Tin height 35 mm
- Size range
- Tin length 85–200 · Tin width 55–130 · Tin height 18–65 mm
- Parts
- One artwork area
- Artwork area
- 0.005 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 1 option; the template and 3D preview follow each change.
- Metal finish2 options
The pull-tab sardine tin family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this mackerel tin 200 g yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
