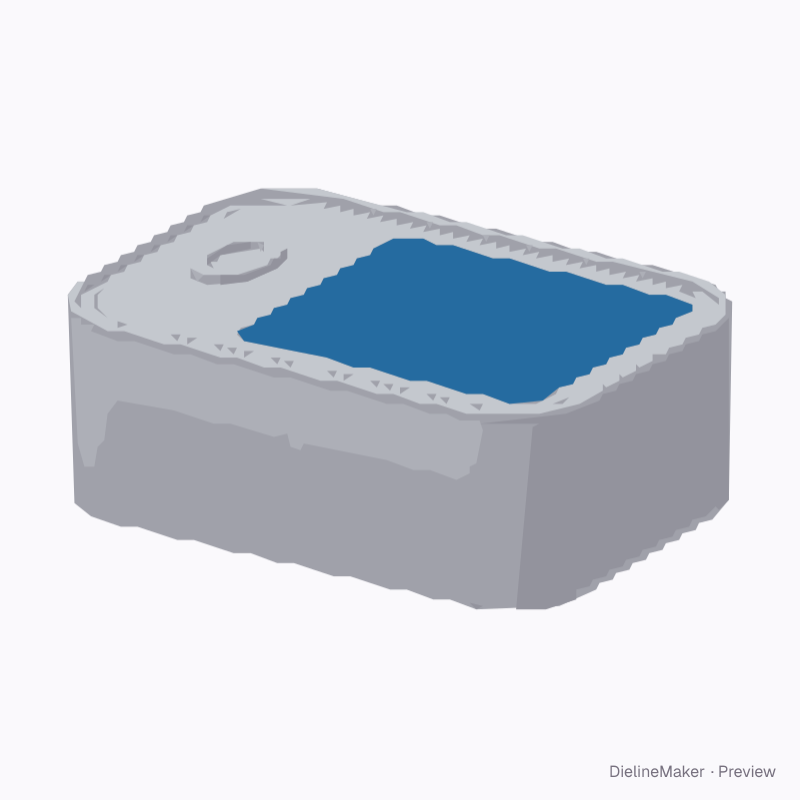

A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementLabels
Deep fish tin label template
125 × 88 × 45 mm starting dimensions. Adjust to your actual container or product. A ready-sized preset of the pull-tab sardine tin — adjust the object dimensions and decoration area to preview your artwork at size.
Object size125 × 88 × 45 mm
Artwork area75 × 68 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Tin length 125 · Tin width 88 · Tin height 45 mm
- Size range
- Tin length 85–200 · Tin width 55–130 · Tin height 18–65 mm
- Parts
- One artwork area
- Artwork area
- 0.005 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 1 option; the template and 3D preview follow each change.
- Metal finish2 options
The pull-tab sardine tin family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this deep fish tin yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
