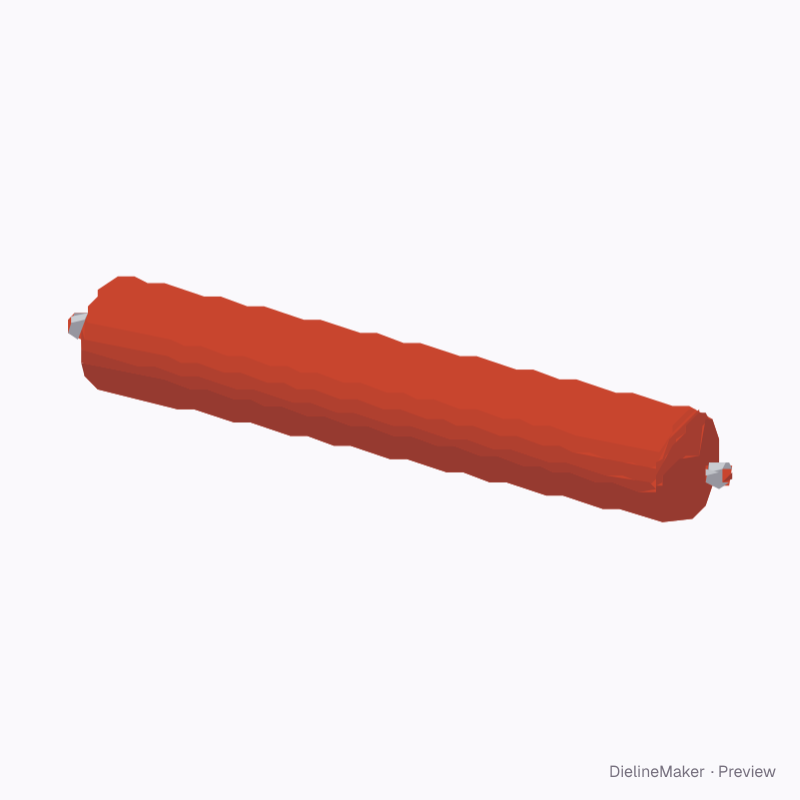

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-CASING-01Labels
Clipped sausage casing dieline
A long inflated sausage casing with gathered, metal-clipped ends — singly or as a row. Print the body wrap between the gathers. A parametric template — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside45 × 1 × 300 mm
Outside45 × 1 × 300 mm
Flat blank259.5 × 141.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CASING-01
- Inside size
- Casing diameter 45 · Number in row 1 · Overall length 300 mm
- Size range
- Casing diameter 15–120 · Number in row 1–13 · Overall length 80–600 mm
- Manufacturing
- 45 × 1 × 300 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.037 m² · about 12 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
